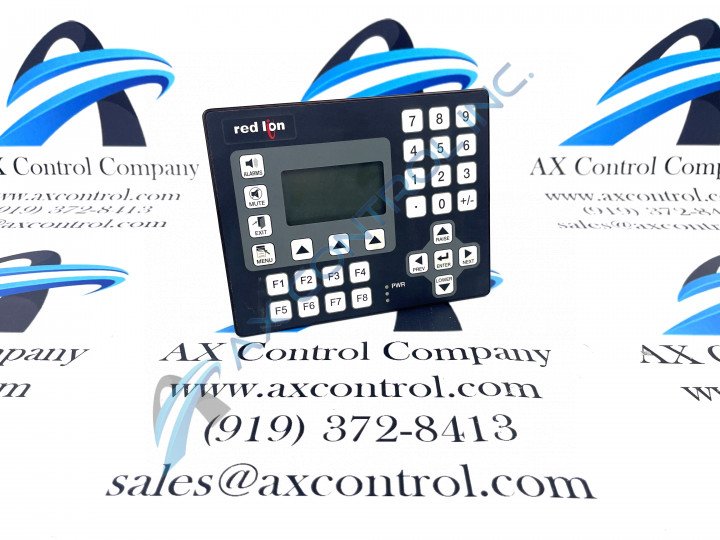

Interface Terminal G303M000 is an Operator Interface model that can only be used in indoor applications. The unit has a textured finish with embossed keys. The model can be programmed through Ethernet, serial, or USB communications.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a G303M000 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G303M000
  • SKU: G303M000RL
  • Manufacturer: Red Lion
  • Series: G3 Series HMIs

G303M000 Technical Specifications

Part Number G303M000
Series G3 Series HMIs
Manufacturer Red Lion
Bulletin/Instruction Manual G303-N
Dimensions 5.85" x 7.45" x 2.1"
Weight Approximately 2 pounds
Display 3.2" Graphical Monochrome LCD with Yellow Backlight
Resolution 128 x 64 pixels
Software Red Lion Crimson Software
Memory Card CompactFlash Type II Slot for Type I/II CompactFlash Cards
Altitude 2000 m
Power Requirements +24 VDC
Battery Lifetime Approximately 10 years
Quantity of Ethernet Ports(s) 1
Ethernet 10 Base-T/100Base-TX
Ratings IP66/NEMA 4X
Vibration Operational 5 to 500 Hz, 3 g

About the G303M000

The G303M000 model is one of the many Operator Interface Terminals produced by Red Lion as part of their G3 Series HMIs.  This model has a 3.2" graphical monochrome backlit LCD with a textured finish on the model. It is vital to note that while some other models in the G Series can be used in different environmental applications this model can only be used in an indoor application. Thirty-two embossed keys make up the keypad on this device. Some of the keys available are navigational keys, identifiable keys, and keys used for operating the on-screen menus. There are three LEDs on the front panel, one of which is used to identify the power of the HMI.

One key feature of the operation of the G303M000 HMI is that it comes with different hardware types, such as Ethernet ports and RS232/422/485 communication ports. These two port types are used for high-speed communication. There is also a USB port available on this model which can allow for quick downloads as well as the rapid configuration of files that will access data logging. The USB port on the G303M000 can download the appropriate configuration required for this model through a PC or can perform data transfers to a PC.

This unit is built around a high-performance core that has assimilated functionality; this feature lets the G303 unit perform a variety of tasks that were once associated with the Paradigm range of Operator Interface while not only adding new features but improving them as well.

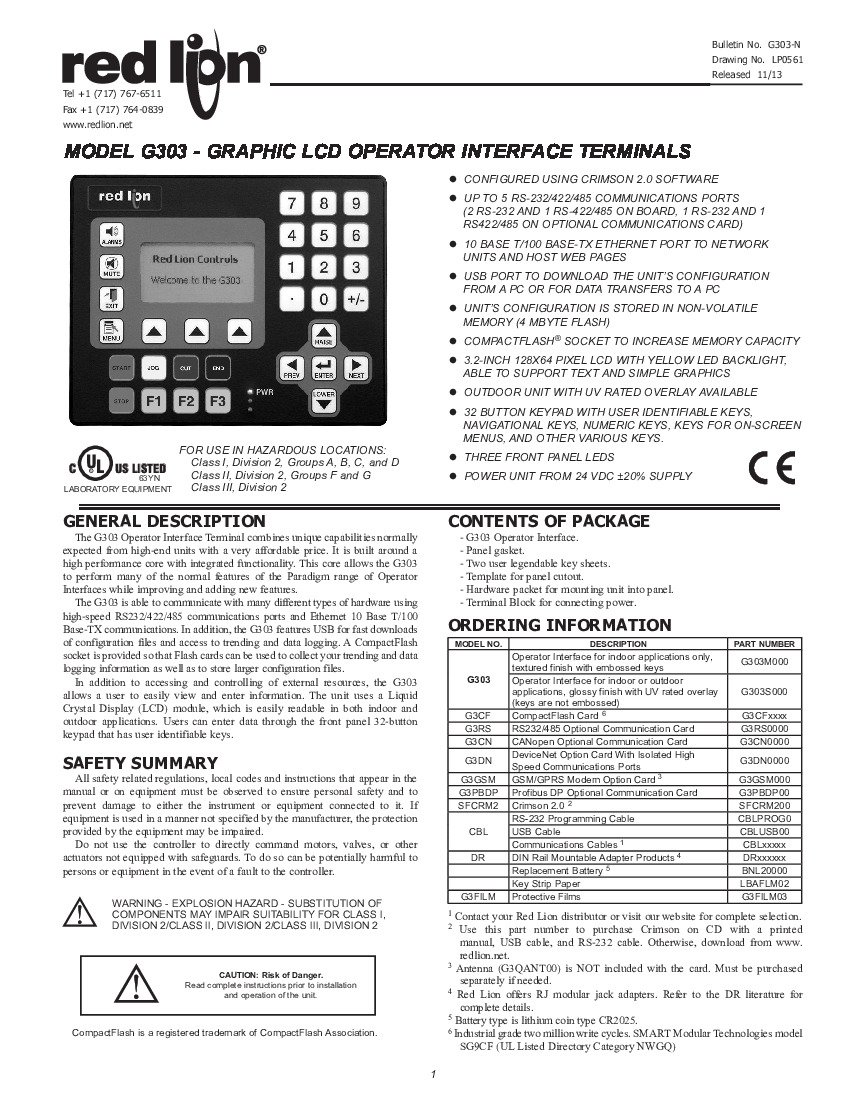

The associated bulletin for the G303M000 model is the Model G303 - Graphic LCD Operator Interface Terminals bulletin G303-N which was released on 11/13. A general description of how the model function as well as the associated description, and part number can be found in this bulletin.

Frequently Asked Questions about G303M000

What is the difference between the G303M000 and the G303S000 models?

The main difference between the G303M000 and G303S000 modules is the display type. The G303M's display is monochrome, whereas the G303S module display is easily readable in the sunlight. Another critical difference between the two modules is their application usage; both models come with an overlay, but the overlays also differ. The overlay on the G303M000 model has a textured finish on the overlay with embossed keys only rated for indoor applications, whereas the G303S000 models overlay has a glossy finish with ultraviolet (UV) rated material for outdoor applications.

Are the different keys on the G303M000 model able to be labeled differently?

Yes! The keys on this model can be custom labeled for specific functions. To make custom key strips, which will be inserted into the model after removing the default key strip, use the Adobe Acrobat file on the Crimson software CD to enter custom color schemes and custom text. Please make sure that when using custom key strips they are inserted prior to mounting the panel.

Reviews For G303M000

Internal Review
(4.0)

Option cards produced by Red Lion are available to insert into the G303M000 panel, but inserting the option cards is labor-intensive as the user will have to remove the back cover and then meticulously attach the option card to the ribbon connector in the rear of the panel. While the option cards are an excellent expansion choice for this panel, the availability of the cards is limited on the market, or they will often already be attached within the module, and the user does not realize this until after powering the model on. - AX Control Tech
