The G315C210 model has a built-in web server and FP server/client communications. This model can only be used in indoor applications. The G315C210 operator interface has a singular USB host with a maximum power supply of thirty watts.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a G315C210 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G315C210
  • SKU: G315C210RL
  • Manufacturer: Red Lion
  • Series: G3 Series HMIs

G315C210 Technical Specifications

Part Number G315C210
Series G3 Series HMIs
Manufacturer Red Lion
Weight 11.41 lbs
Expansion 1 CompactFlash Card Socket
Enclosure Rating IP66 at Face Only
Operating and Storage Humidity 80%, Non-Condensing
Altitude Max 2000 meters
On Board User Memory 64 Mbytes of Non-Volatile Flash Memory
Mounting Requirements for NEMA 4X/IP66 Sealing Minimum Thickness of 3.17 mm (0.125")
LED Backlight Lifetime 50,000 HR
Baud Rates for Serial Ports 115,200 Baud
Stud Torque Max. 17 inch-pounds
Serial Port Quantity 4, Isolated Ports
Number of Ports 9

About the G315C210

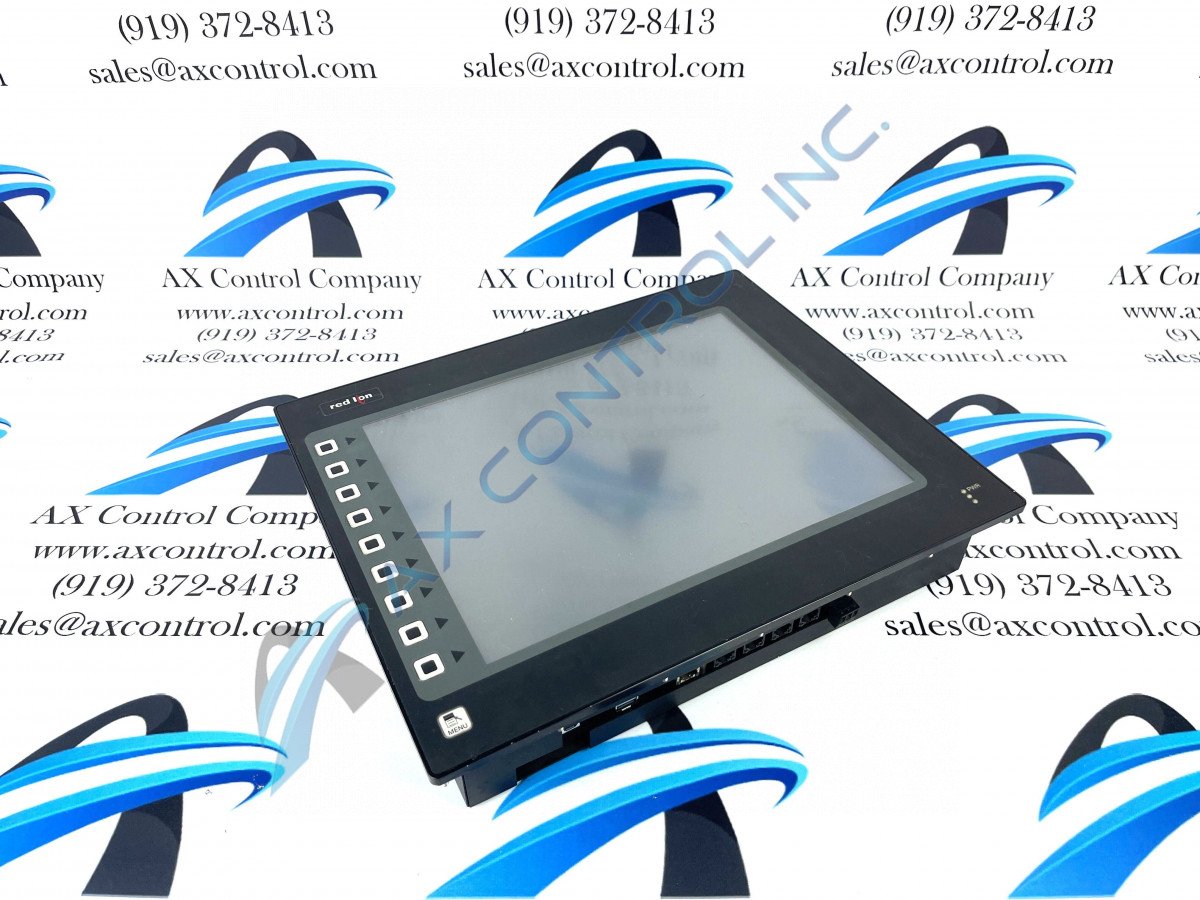

Designed by Red Lion, the G315C210 model is a 15" TFT XGA operator interface terminal only rated to be used indoors. One of the terminals on the rear of the G315C210 model is a chassis ground terminal. This terminal requires that the unit be connected to earth ground. There is a signal common on the model which will not be connected to the chassis ground; while most models require that the signal common and earth ground maintain some isolation, the terminals on this model do not require such. While the signal common and earth ground does not require isolation, other potentially connected components/equipment require isolation between the terminals. When external connections are made to the G315C210 model, caution must be taken.

Ethernet communications are available on the model; they are 10 Base-T or 100 Base-TX communication ports. The jack associated with either of these communications is an RJ45 jack that must be wired as a NIC or Network Interface Card. On the rear of the device, there is a distinct twelve-digit MAC address and a black which marks the unit with an IP address. For additional information regarding these Ethernet communications, refer to the Red Lion website or the attached Crimson manual. The attached Crimson manual can give more detail on all the protocols and configurations used with this HMI.

There is a backlight on the G315C210 model; this model has an LED backlight with a limited lifetime, and the lifetime for this model is fifty thousand hours. It should be noted that the lifetime is based on the quantity of time that the display is actually on and being used at full power; to help preserve the lifetime of the backlight, the display can be dimmed in low light conditions, and the backlight should be turned off when the screen is not in use.

Frequently Asked Questions about G315C210

There are three front panel LEDs on the G315C210 terminal; what are they used for, and what do they indicate?

The three LEDs indicate the power of the model, the status of the CompactFlash card, or if an alarm is present. The power LED is green as is the bottom LED which indicates potential alarms, and the middle which indicates the status of the CompactFlash card is yellow. When the power  LED is flashing it indicates that the operator interface does not have a solid configuration, to troubleshoot this problem attempt a cycling power, and then if that does not work download the configuration again. If at any point the yellow LED begins to flicker it indicates that the CompactFlash card is storing data or the attached PC has locked the drive, please be sure to not turn the power off as the unit is cycling through data writing.

What makes this model more enhanced than the other G3 series HMIs?

Several things enhance the G315C210 model, but the primary feature is the resolution of the touchscreen which is much higher than previous G3 HMIs. The resolution for the G315C210 model is 1024 x 768 pixels making it far superior to the G315C210 predecessors.

Reviews For G315C210

Internal Review
(4.0)

One downside of the G315C210 terminal is that with a larger model, such as this with a 15" touchscreen, there are fewer keys on the keypad. A model such as the G303 has 32 programmable keys while this model has only 10; if looking for a model with more keys, look no further than AX Control which can provide a G303 HMI for your convenience. - AX Control Tech
