G315C230

Name: G315C230
Brand: Red Lion
SKU: G315C230RL
Price: 1702 USD
Availability: InStock
Rating: 5 (2 reviews)

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

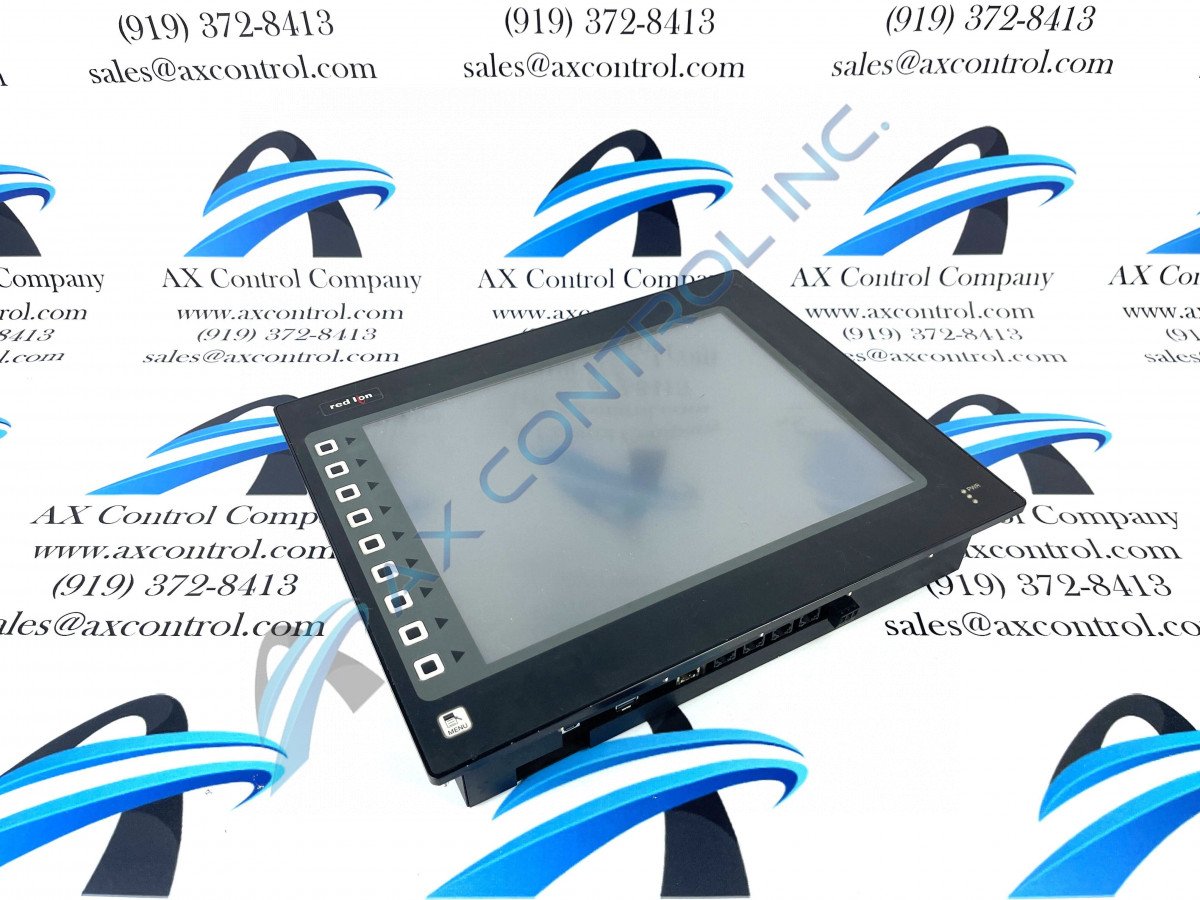

Dual Ethernet and Single USB Host Model G315C230 is a 15-Inch XGA TFT Display Operator Interface Terminal that has a ten-button keypad used for on-screen menus. The mounting of the G315C230 model is specifically designed for through-panel mounting.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a G315C230 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: G315C230
SKU: G315C230RL

Manufacturer: Red Lion
Series: G3 Series HMIs

Description
Revisions
Repairs
Warranty
Manuals

G315C230 Technical Specifications

Part Number	G315C230
Series	G3 Series HMIs
Manufacturer	Red Lion
LCD Screen Size	15"
Screen Type	TFT XGA Display
Resolution	1024 x 768 pixels
LED Brightness	600 Candelas Per Square Meter
Weight	11.41 lbs
Instruction Guide	Red Lion Bulletin G315C2-D
Battery Type	Coin Cell, Lithium
Construction	Steel Rear Metal Enclosure w/ NEMA 44X/IP66 Aluminum Front Plate
Memory Card	CompactFlash Type II Slot for Type I/II CompactFlash Cards
UL Hazardous File and Listing	File #E179259 and File #E245515
Certifications and Compliances	CE Approved and RoHS Compliant
DH486 TXEN Ports Features	Low Voltage 0.5 V @ max 25 mA and High Voltage 15 VDC, Open Collector, and Transmit Enable

About the G315C230

The G315C230 is the final model in the G3 Series HMIs produced by Red Lion. This model has a 15" TFT XGA graphic, color liquid crystal display that will show the menu and all related texts and information.

The G315C230 model requires a specific software type to ensure that the model runs properly, the specific software associated with any of the Red Lion products, and specifically the G3 Series HMIs, is Crimson software. The minimum software required to run this model is Crimson 2.0. The manual associated with this software is the LP0577 Crimson 2 User Manual which details the many different features to use with this model and several other factors. Occasionally an issue with the runtime application of this software can occur; when this takes place, the G3 operating system will have a panel reset, and the condition that has caused the reset will be logged in the memory of this device.

There are very few special features on this device, two of which are the different port types available. An individual USB port on this terminal with two Ethernet serial ports makes the G315C230 model slightly more enhanced than the previous G315C2 model. The extra Ethernet port on this device is labeled as an Auxiliary Ethernet port and requires a NIC, also known as a network interface card wiring type.

There are a variety of two-wire connection types available with the G315C230 model; one of the connection types available is the G3 model connecting to the modular controller; one example of the G3 connection to the modular controller connection is connecting G3 7, which is labeled as TxB to the Modular Controller 7 which is is also named as TxB.

All of the information above can be found in the G315C2-D Red Lion G315C2 Product Manual attached above, along with the LP0577 Crimson 2 User Manual to assist in configuring the Crimson software.

Frequently Asked Questions about G315C230

The G315C230 model is the last of the G3 series HMIs. Is there anything that makes this model superior to the previous HMIs?

The only thing that makes the G315C230 terminal superior is the screen size. Many other HMIs are equipped with a UV-rated overlay or can be easily read in the sunlight and has dual ethernet, a USB host, and isolated comms, whereas the G315C230 model only has dual ethernet and a USB host, which is one feature greater than the G315C210 model. Other than the larger screen size, the G315C230 model does have a higher resolution, but these are the only two features that enhance the model. If wishing to purchase a model that can be easily read in the sunlight and used outdoors, look for any G3 HMI with an S in the part number.

What makes the G315C230 a better purchase than competitors' HMIs?

The G315C230 model or any of the G3 series HMIs from Red Lion is a better purchase for several reasons, one being the Crimson software. The Crimson software is not only free but is easy to install and even easier to navigate. Another feature of the G3 HMIs, and the G315C230, being a superior purchase is that they have the same amount of ports, if not more, than competitors' HMIs and are also cheaper than other HMIs.
