GMCC0000

Name: GMCC0000
Brand: Red Lion
SKU: GMCC0000RL
Price: 835 USD
Availability: InStock
Rating: 4 (2 reviews)

4.00 (2)
Click a star to rate this product

4.00 (2)
Click a star to rate this product

Expansion Model GMCC0000 is a compact and easy-to-install Red Lion Graphite Expansion Module that enables HMIs to operate with IEC 61131 control capabilities through Crimson Control.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GMCC0000 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GMCC0000
SKU: GMCC0000RL

Manufacturer: Red Lion
Series: Graphite HMI Expansion Modules

Description
Repairs
Warranty

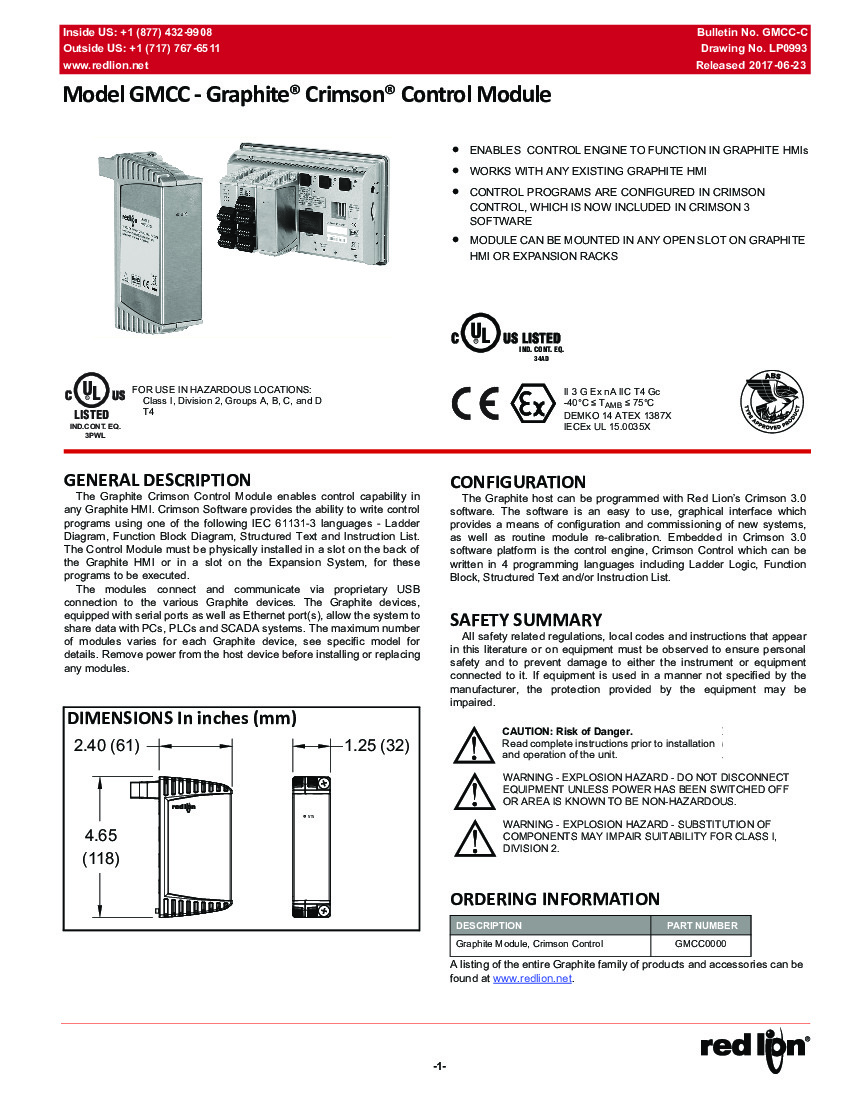

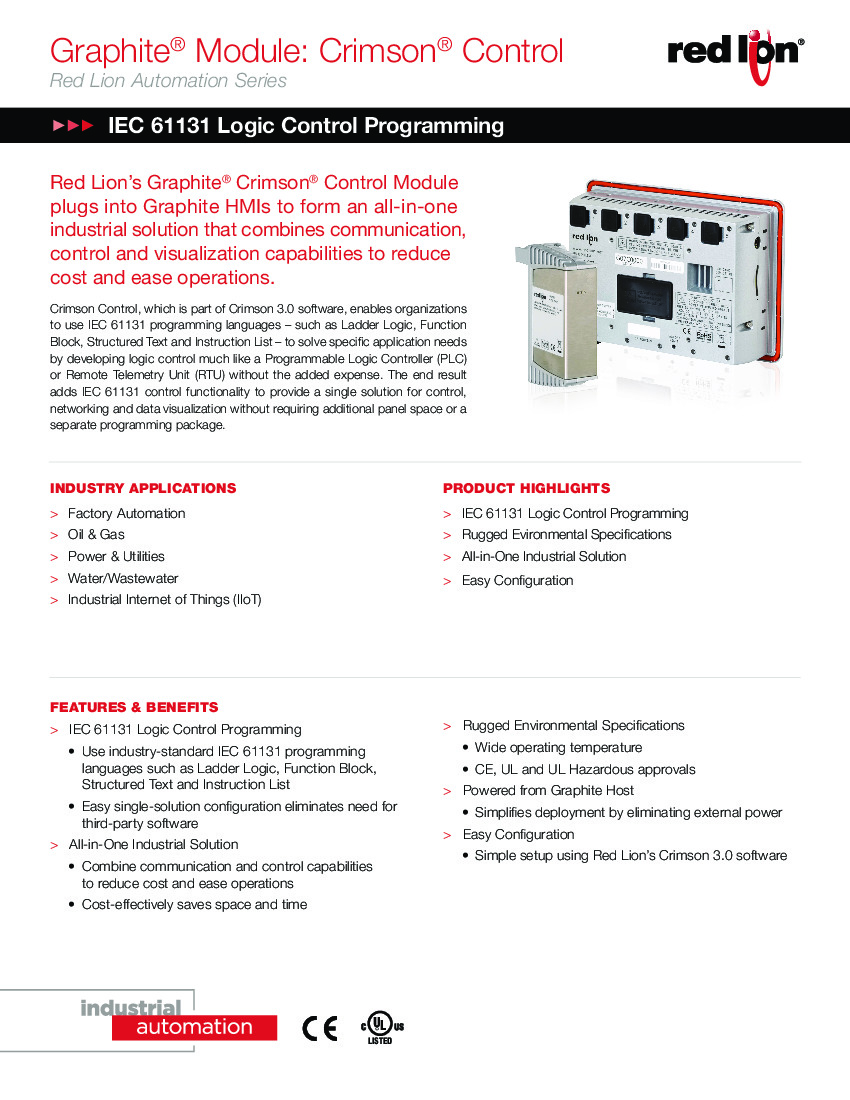

Manuals

GMCC0000 Technical Specifications

Dimensions inches(mm)	D2.40(61) x H 4.65(118) x W1.25(32)
Features	Works with Any Existing Graphite HMI
LEDs	1 Status (Green or Flashing Green)
Manufacturer	Red Lion
Max Power Draw	1.1W
Software	Crimson 3.0 or 3.1
Weight Before Packaging	6.7 oz (189.9 g)

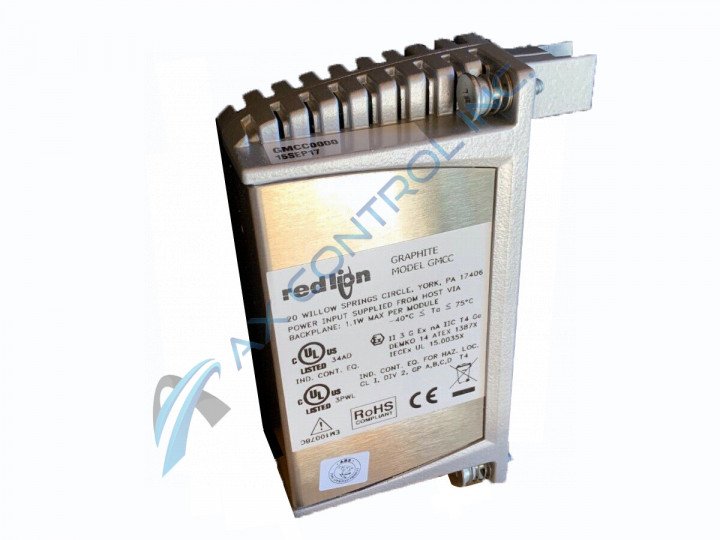

About the GMCC0000

The Red Lion Graphite Module GMCC0000 is a device that enables IEC 61131 control capabilities through Crimson Control. IEC 61131 is a standard for programmable logic controllers (PLCs) that specifies the programming languages, instructions, and functions used in PLCs, as well as the communication protocols and hardware requirements.

Once connected, the GMCC0000 module allows the user to access and control the functions and variables of the connected PLC or device using Crimson Control. This can be done using the built-in IEC 61131 protocol driver in Crimson Control or through custom scripts and programs created using the Crimson Control scripting language.

The GMCC0000 module supports a wide range of IEC 61131 programming languages, including Ladder Logic (LD), Function Block Diagram (FBD), Structured Text (ST), and Instruction List (IL). It also supports various communication protocols, including Modbus RTU, Modbus TCP, and DF1.

The GMCC0000 module is compact and easy to install, making it suitable for use in a variety of applications. It is compatible with all models of Crimson Control and can be used with a variety of PLCs and other devices that support the IEC 61131 standard.

Reviews For GMCC0000

Internal Review

(4.0)

The GMCC0000 module is compact and easy to install, making it suitable for use in a variety of applications. However, setup and installation should be performed by and certified or knowledgeable professional. If dropped or installed improperly, the unit could fault, or stop working entirely. - AX Control Techs

Repair Services For GMCC0000

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$835

Our highly skilled technicians can repair your GMCC0000. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year
