EasyGen-3400XT-P2

About the EasyGen-3400XT-P2

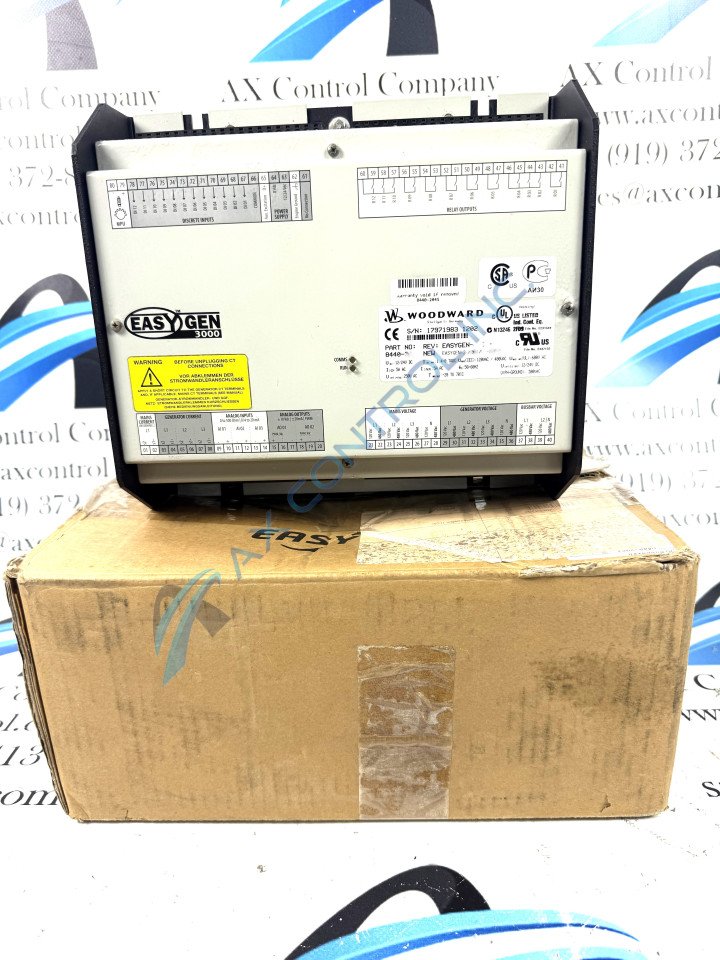

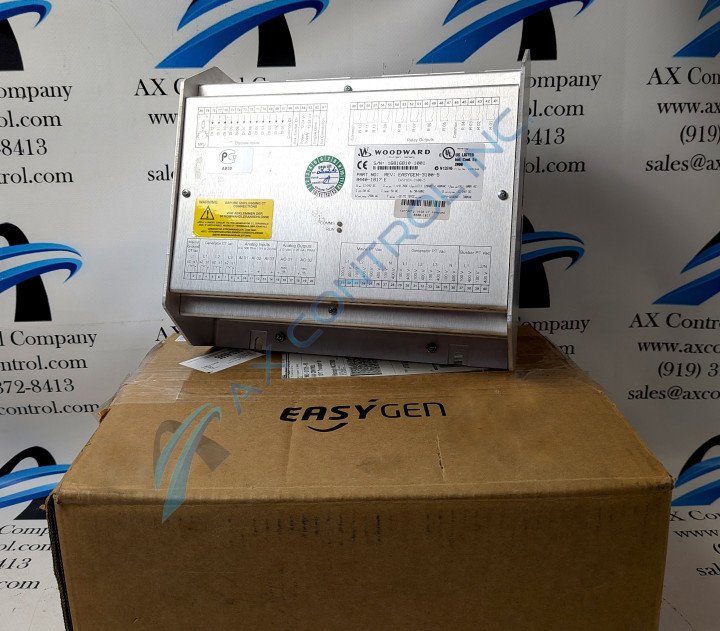

easYgen-3400XT-P2 is an easYgen-3000 generator set controller for applications such as peak shaving, distributed generation, cogeneration, import-export, and more. This model is designed for back panel mounting. It is in sheet metal housing (IP20) and comes pre-configured for connection with a Woodward Remote Display (RP-3000). This controller can also be managed remotely via PC using Woodward’s ToolKit software.

Most features of this Woodward genset control are the same as other models in the easYgen-3000 series. This model provides full connectivity of up to 32 gensets and offers a wide variety of programmable settings for the engine, generator, and mains protections. Where the 3400/3500 easYgen models differ, is in their ability to provide full connectivity for up to 16 Woodward LS-5 Series controllers. With this feature, easYgen-3400XT-P2 can handle applications with multiple mains and bus tiebreakers.

The easYgen-3400XT-P2 has four operation modes. These are Auto, Stop, Manual, and Load/No Load test modes. This easYgen-3000 model has three PID controllers, which are freely configurable, making it suitable for control purposes such as water level, fuel level, CHP applications, and more.

Woodward easYgen-3000 Manual 37528G has full operation information for the 3400XT-P2 model, including full details on the programmable monitoring and protection parameters, as well as the configurable discrete and analog I/Os.
