8256-016

Name: 8256-016
Brand: Woodward
SKU: 8256016WO
Price: 1888 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

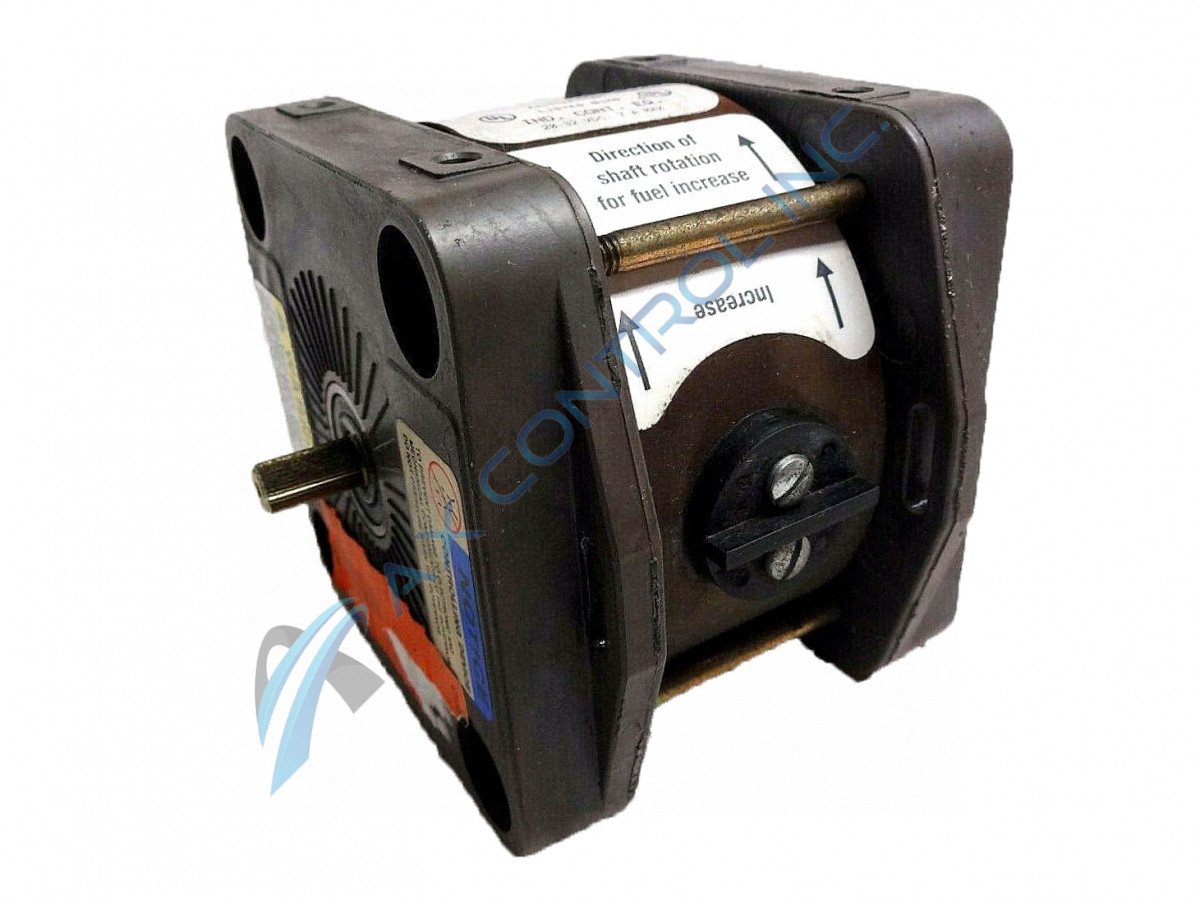

The 8256-016, from Woodward, is a 24V model of actuator in the EPG series for diesel, gas, and gasoline engines.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 8256-016 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 8256-016
SKU: 8256016WO

Manufacturer: Woodward
Series: EPG Electrically Powered Governor

Description
Repairs
Warranty
Manuals

8256-016 Technical Specifications

Manufacturer	Woodward
Series	EPG (Electrically Powered Governor)
Part Number	8256-016
Model Type	1724
Battery Voltage Measuring Value	24-Volt
Engine Type	Gas Engine, Diesel w/ or w/o Start Fuel Limit, Gasoline w/ Start Fuel Limit
Maximum Wire Length	11 m (for 14 AWG) or 23 m (for 12 AWG)
Switch Rating for 1724 Model	10 A
Compliance Type	EU Directive

About the 8256-016

Summary

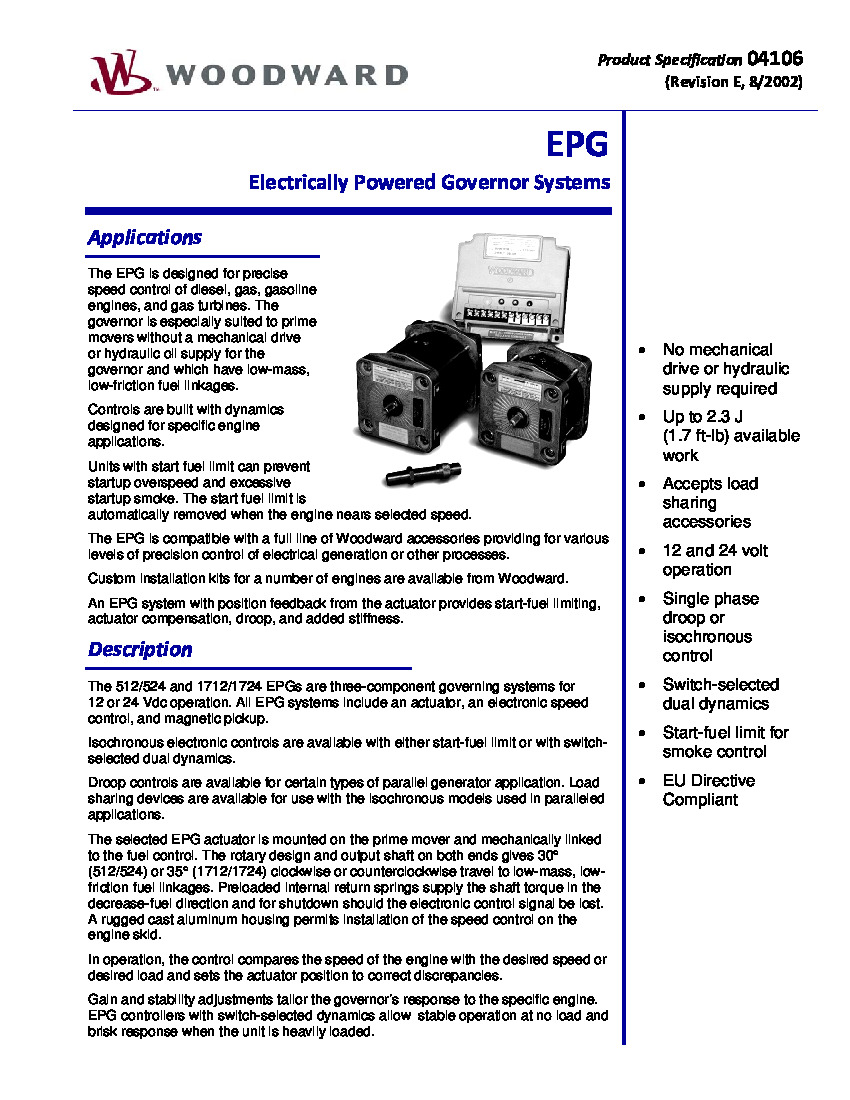

The 8256-016 is an actuator in the Electrically Powered Governor (EPG) series from Woodward. This unit is meant to be used in conjunction with a magnetic pickup unit and speed control unit to form a full EPG. The 8256-016 is a 24V model actuator in this series. The full EPG is designed to control the speed of gas, gasoline, and diesel engines. This model may be paired with load sharing devices to use with paralleled applications.

Actuator Features/Compatibility

The 8256-016 is capable of single phase isochronous or droop control. For use with diesel engines with or without start fuel limits as well as gasoline or gas engines with start fuel limits, the 8256-016 should be paired with a magnetic pickup in the 3000 to 6000Hz range. For use with other gasoline or gas engines, the unit should be paired with a 6000 to 12,000Hz magnetic pickup.

Technical Specifications

The compatible control to the 8256-016 has a maximum power consumption of 95W and requires the battery charger to have 5A or higher while the unit is energized. Each part of the 8256-016 is treated for corrosion resistance. The temperature rating for operating this part is between -40°C and 93°C. This output shaft of this unit has a 0.375" -36 SAE serrated shaft on either end.

Frequently Asked Questions about 8256-016

What is the maximum work capacity of the 8256-106?

The 8256-016 has a maximum work capacity of 2.3J (1.7ft-lb) over the 35° of full governor travel.

What are the vibration and shock ratings for this unit?

The 8256-016 is rated for vibration according to the US MIL-STD-810C, method 514.2, procedure I, curve J per figure 514.2-2, except it is limited to 3 g. The shock rating is US MIL-STD-810C, method 516.2, procedure I, figure 516.2-1, Ground Equipment test with a 40 g input and 11 ms duration.

Reviews For 8256-016

Internal Review

(5.0)

The 8256-016 is a great 24V actuator to pair with the other EPG components to make a full system. This actuator is rated for 0.7J more work capacity over the next highest model in the series, making it a good choice if your system will need the extra energy. The internal parts are made of aluminum and steel and are corrosion treated, so this unit should be able to withstand many harsh environments. -AX Control Lead Technician

Repair Services For 8256-016

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1888

Our highly skilled technicians can repair your 8256-016. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
