Isochronous Speed Control Model 8290-186 is used with 512/1712 actuator models as well as diesel or natural gas turbines. This model has a start fuel limit. The 8290-186 model must run at a required speed range of 3000-6000 Hz, and be operated on a 12-volt battery supply.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 8290-186 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 8290-186
SKU: 8290186WO

Manufacturer: Woodward
Series: EPG Electrically Powered Governor

Description
Repairs
Warranty
Manuals

8290-186 Technical Specifications

Actuators Used	512/1712
Manufacturer	Woodward Inc, Fort Collins CO
Model Type	Speed Control, Isochronous
Prime Mover Type	Diesel or Natural Gas Turbine
Series	EPG, Electrically Powered Governor
System Battery Voltage	12-Volt

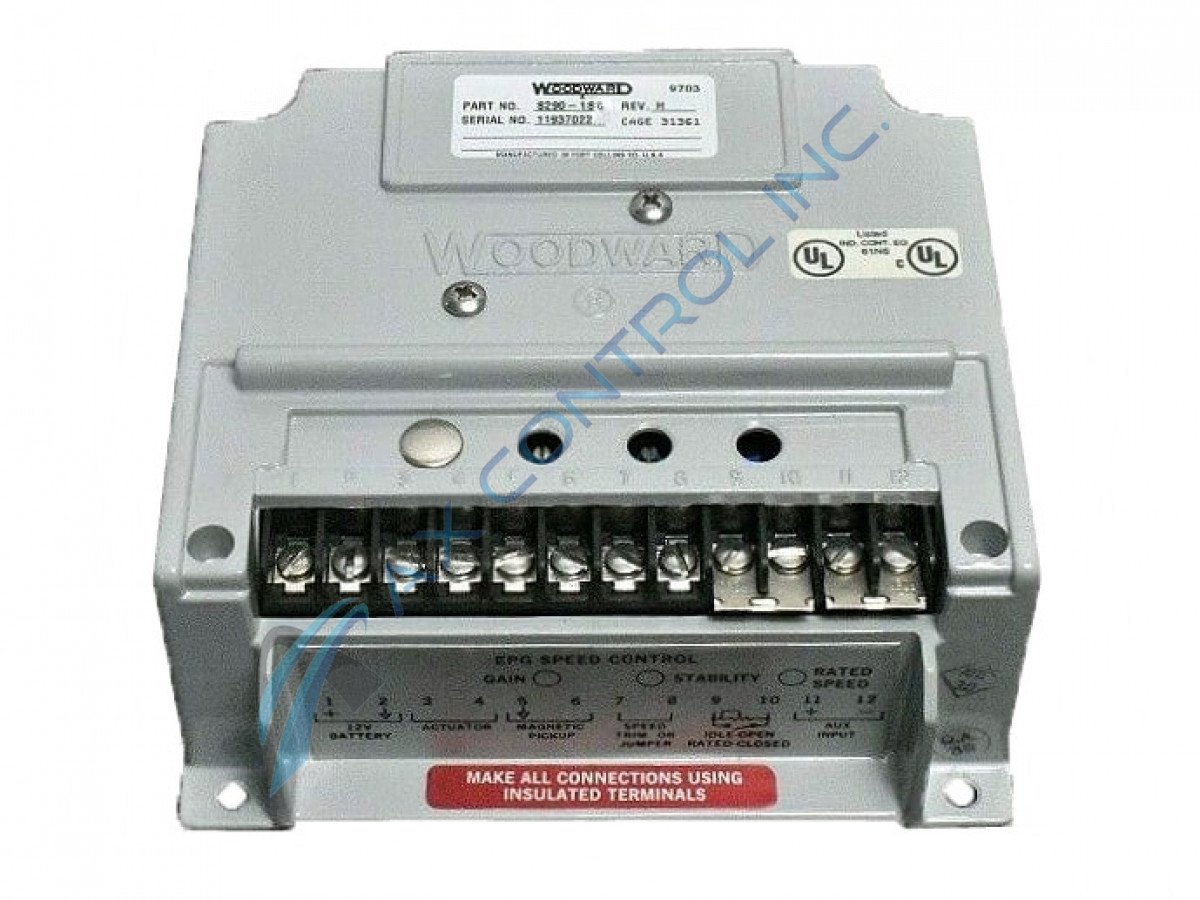

About the 8290-186

Model 8290-186 is a Woodward speed control device that has been discontinued by the manufacturer. It belongs to the Electrically Powered Governor series and is currently available through sources such as AX Control. These products are part of a full EPG system, which consists of speed control, magnetic pickup, and an actuator. These are systems designed for operation with prime movers.

Specifications for speed control model 8290-186 include;

A start fuel limit
A 3000 to 6000 Hz speed range.
12-volt battery system.
Compliant with EU directives.
Use of switch-selected dual dynamics.
Optional use of load-sharing accessories and ramp generator.
Weighs around one pound.
Compatible with diesel and gas turbines.

The speed control device model 8290-186 can only operate with certain actuator types. It works with 512 or 1712 actuators. This model is an isochronous speed control device. It can be installed near both the battery and actuator. It can be mounted on the prime mover it will operate with, without a hydraulic oil supply or mechanical drive needed. 12 AWG and 14 AWG wires are compatible with this device, as long as length requirements are followed. AX Control buys, sells, and repairs these products, and others in the same series and will come with a complimentary three-year warranty.

Reviews For 8290-186

Internal Review

(5.0)

The 8290-186 model is equipped with a start fuel limit that helps with smoke control of the prime mover that the model is attached to. All wiring information can be found in the attached manuals, for specifications refer to the 04106 data sheet. - AX Control Techncian
