8290-192

Name: 8290-192
Brand: Woodward
SKU: 8290192WO
Price: 1189 USD
Availability: LimitedAvailability
Rating: 5 (2 reviews)

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

Woodward Electrically Powered Governor Series Model 8290-192 is a droop speed control that can be used with the 1712/1724 and 512/524 actuators. The typical system battery voltage of this model will sit at 12 volts and have a power consumption of 60 w.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 8290-192 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 8290-192
SKU: 8290192WO

Manufacturer: Woodward
Series: EPG Electrically Powered Governor

Description
Repairs
Warranty
Manuals

8290-192 Technical Specifications

Actuators Used	1712/1724 and 512/524
Manuals	50530, 04106, 82327, and 82329
Model Type	Droop Speed Control
Power Consumption	60 W
Series	EPG, Electrically Powered Governor
System Battery Voltage	12 Volts
VDC Range	min. 10 VDC to max. 16 VDC

About the 8290-192

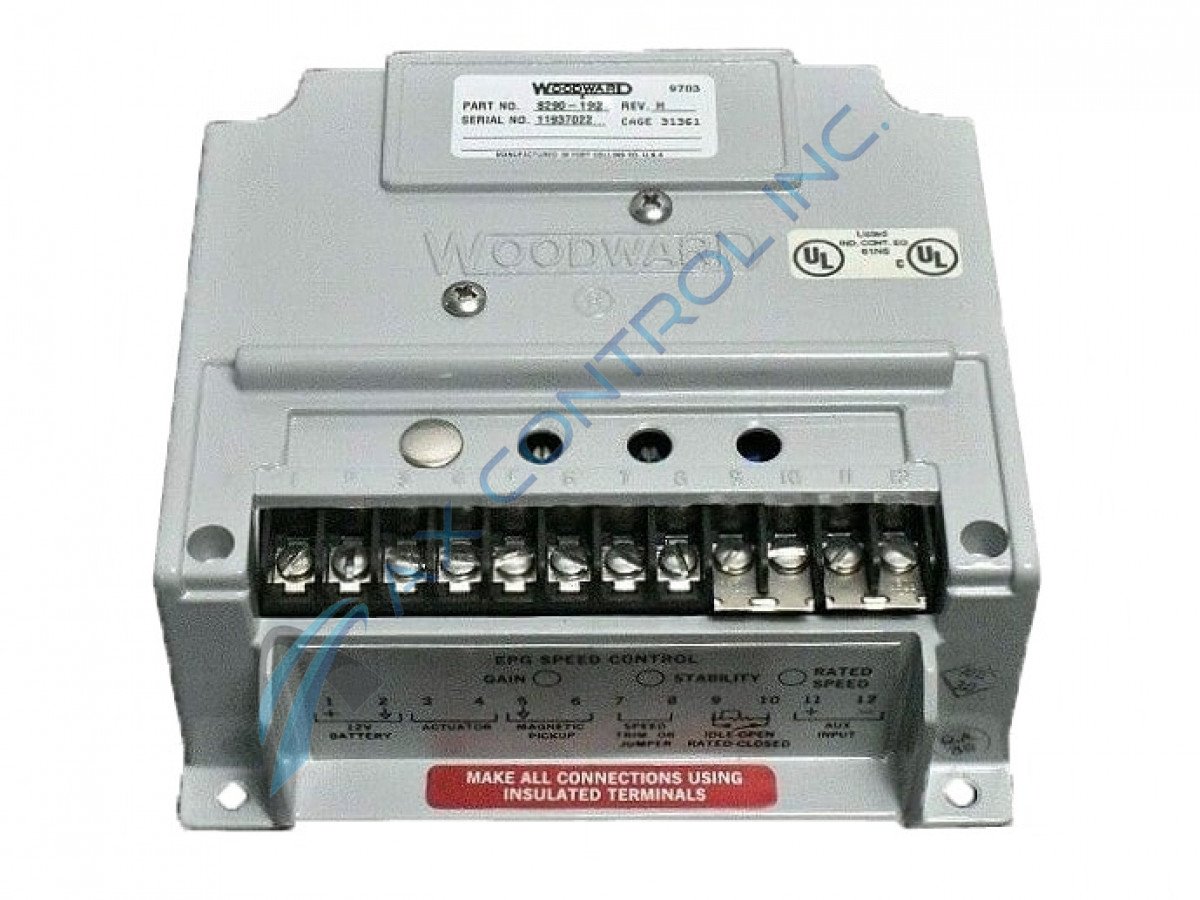

Model 8290-192 is part of the Electrically Powered Governor series with Woodward. However, it has been discontinued by the manufacturer and is currently found through sources like AX Control. This product is a droop speed control device and can work on prime movers in a complete EPG system. A speed control device needs to be added to an actuator and magnetic pickup in order to create a complete EPG system. Product 8290-192 operates on a 12-volt battery. Actuators that are compatible with this device include 512, 524, 1724, and 1712. Actuators will have a serrated output shaft on each end.

This device will consume at most 60 watts of power. The VDC range has a minimum of 10 VDC and a maximum of 16 VDC. The temperate should be kept between -40 and 167 degrees Fahrenheit. It can be installed using 14 AWG and 12 AWG wires. Mounting it near the actuator and battery will ensure optimal operation conditions. Proper wire length requirements should be followed when installing this device.

Model 8290-192 can be repaired, bought, and sold through AX Control Inc. with our industry-leading 3-year warranty.

Reviews For 8290-192

Internal Review

(5.0)

The 8290-192 model has the capability to be mounted in any configuration and attitude. All information regarding the mounting and how to do so with the proper wires can be found in all of the attached manuals. - AX Control Technician
