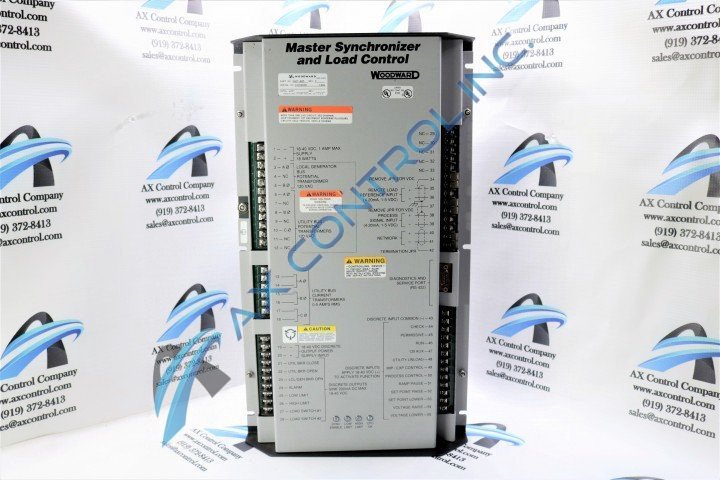

About the 9907-006
There are many functions installed into the 9907-006 unit which eliminate the need for any redundant sensor modules, like PT, CT, and MOP units. An example of the abundance of functions that are able to be performed would include but are not limited to Adjustable Power Factor Control, Multi-function adjustable high and low limit alarms, and a Digital Communications Network.
When you are operating your control and need to check the proper power supply of the MSLC unit you should set the voltage to the minimum, which is 18 Vdc, you should then apply power to the control and ensure that the result in the self-test menu zero is equivalent to forty-nine.
The 9907-006 is designed with a set of operational specifications, such as the power supply intake. The power supply needed is from 8 to 32 continuous volts of direct current. The 9907-006 unit’s voltage sensing input is in a 120 V/AC Open Delta PT configuration, with a three-phase utility bus, and a single-phase generator bus. The frequency input for the 9907-006 ranges from 45 to 66 hertz. The 9907-006 model is outfitted with a UL and cUL compliance listing.
