The 9905-864 is a Woodward Peak 150 digital steam turbine control with AC/DC power type and a NEMA 4X enclosure.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 9905-864 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 9905-864
SKU: 9905864WO

Manufacturer: Woodward
Series: Peak 150 Digital Control

Description
Repairs
Warranty
Manuals

9905-864 Technical Specifications

Manufacturer	Woodward
Series	Peak 150
Part Number	9905-864
Power Type	AC/DC
Enclosure Rating	NEMA 4X
Analog Input	4-20mA or 1-5VDC Remote Speed Setting Signal
Actual Speed Output	Scalable, 4-20/0-1mA
Configurable Readout Output	Scalable, 4-20/0-1mA

About the 9905-864

General Information

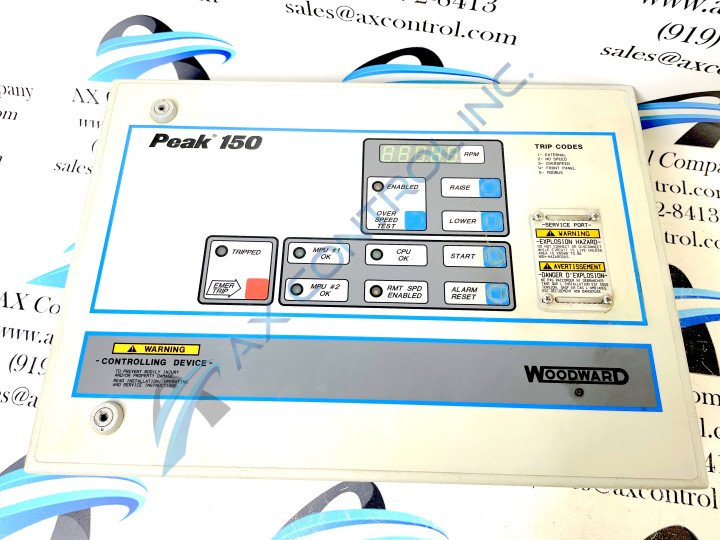

The 9905-864 is a Woodward Peak 150 low-cost digital control for single-valve and single-valve rack steam turbines. This model was made to act as an AC/DC, NEMA 4X rated model in the series. This means that in addition to being water-tight and dust-tight, this model is designed to operate in corrosive environments, unlike many other digital controls. This unit, like others in the series, is set up using the separate handheld programmer unit in order to reduce unwanted change to your system.

Unit Features

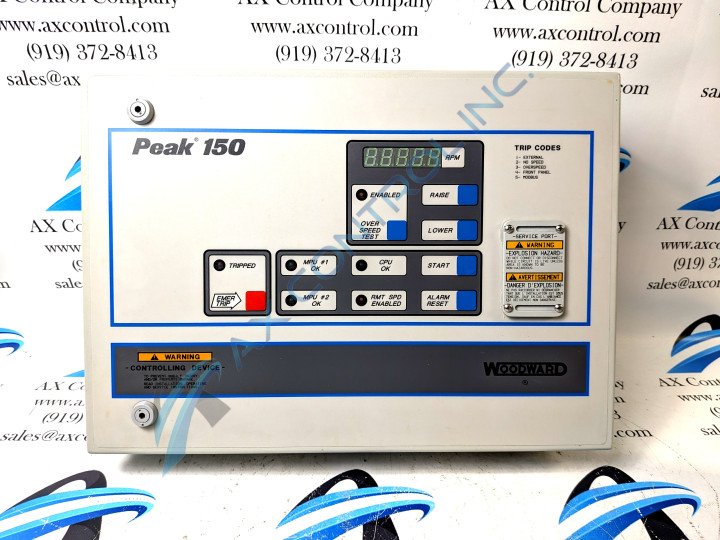

This unit has series-standard features such as the front keypad with 6 switches and LED indicators to allow the operator to quickly read and interact with the system. The 9905-864 has a NEMA D motor type to help allow for tighter control of the turbine speed. This unit has dual speed control dynamics and an overspeed trip test. The CPU of this unit is a 16-bit, 12MHz microprocessor, and the status of this processor can be checked via the indicator light on the front panel. Other indicators display the statuses of the 2 magnetic pickups, overspeed test, remote speed setting signal, and shutdown.

Additional Specifications

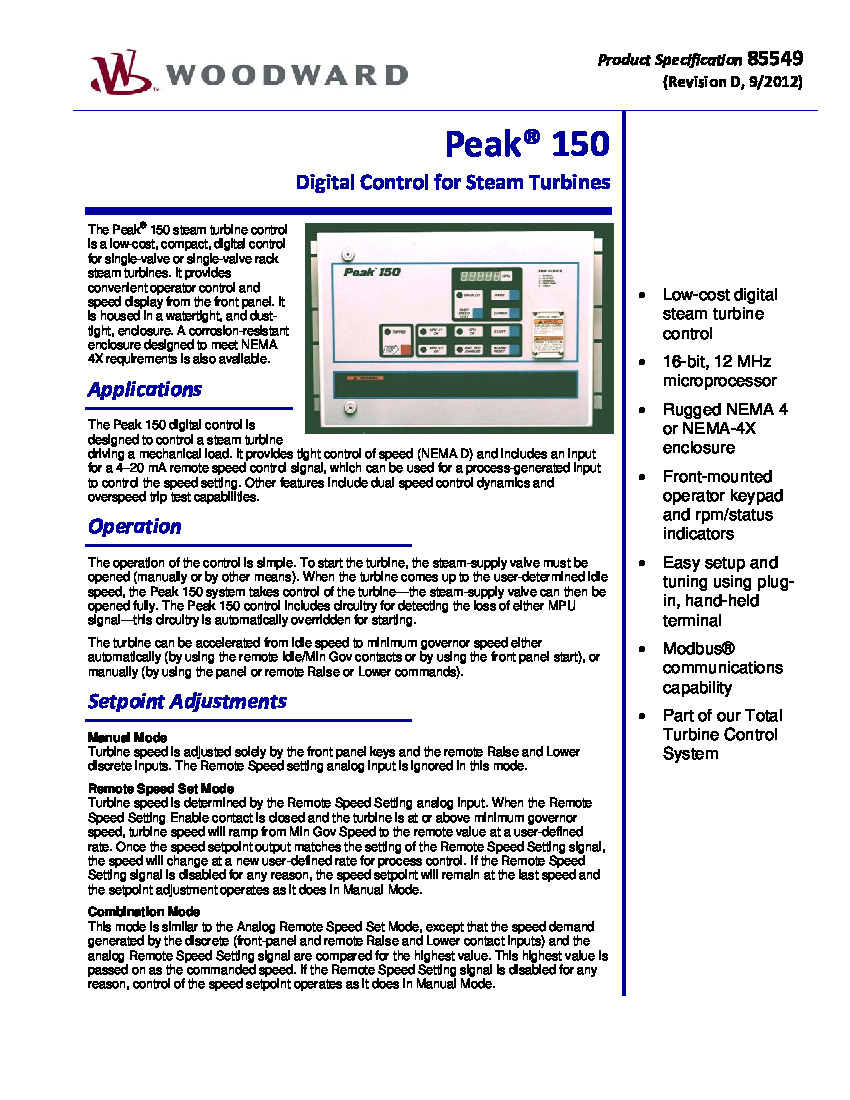

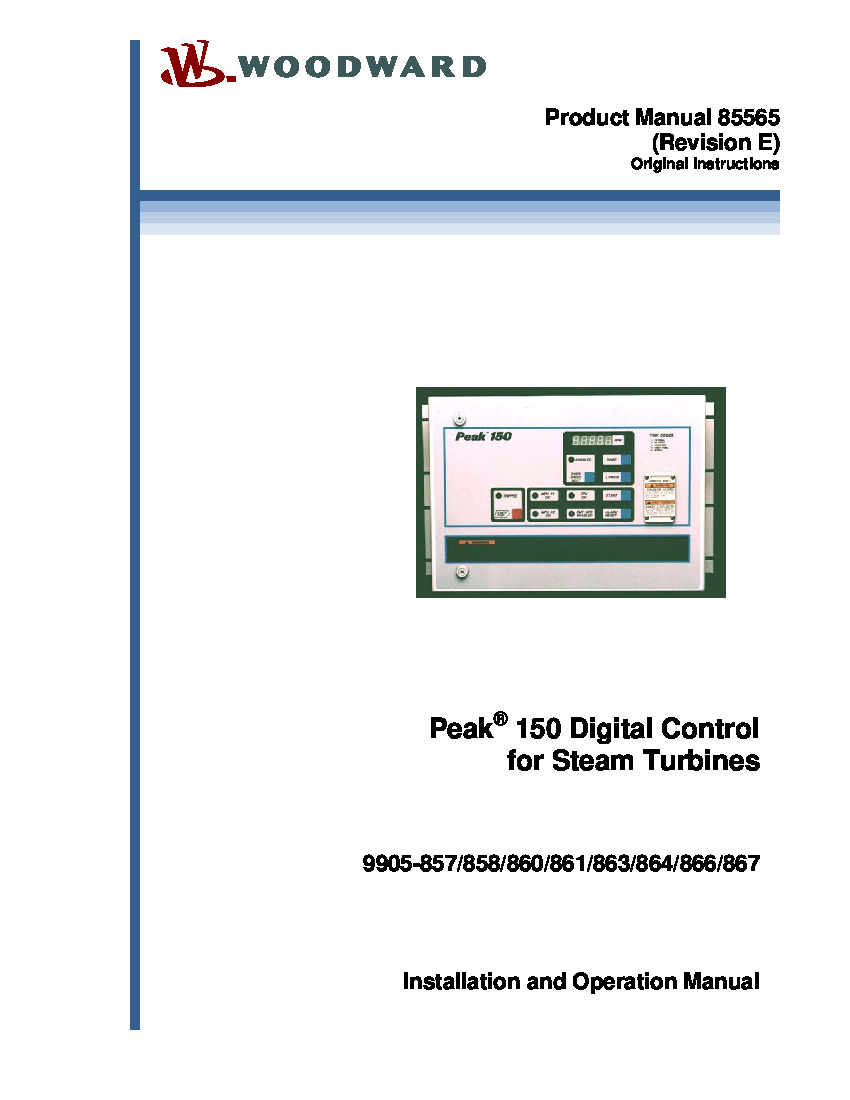

The 9905-864 is rated for AC/DC input of 90-150VDC or 88-132VAC (47-63Hz). The dimensions of the 9905-864 are 19 inches (483mm) wide by 12.2 inches (310mm) high by 4.1 inches (105mm) deep. The technical manual number for this model and series is 85565.

Frequently Asked Questions about 9905-864

How many discrete contact inputs are there on the 9905-864?

There are 8 discrete contact inputs, which include: start, raise, lower, trip, reset, idle, remote speed enable, and overspeed test. These inputs are selected by connecting them to a 5-28VDC power supply.

Does the 9905-864 have a critical speed band?

Yes, the 9905-864 has a critical speed band feature to protect the turbine/skid from excessive vibration. The user may define a critical speed band, and the 9905-864 will change speed rapidly and be unable to be stopped while in the defined band. This band is 1500 to 1800RPM by default.
