Woodward's 9903-003 EG-A Controller. With an Input Current Rating of 120VAC @ 50/60HZ allows users to control other Woodward Electronic Generator Series with relative ease.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 9903-003 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9903-003
  • SKU: 9903003WO
  • Manufacturer: Woodward
  • Series: Power Supplies, Controllers, & Miscellaneous

9903-003 Technical Specifications

# of Terminals 24
Chassis Fully Encased in Sheet Metal
Dimensions (in) 7.75 x 4.75 x 10.25
Manufacturer Woodward - Fort Collins, Colorado
Voltage Rating 120VAC | 50/60HZ
Weight 16 lbs 6 oz

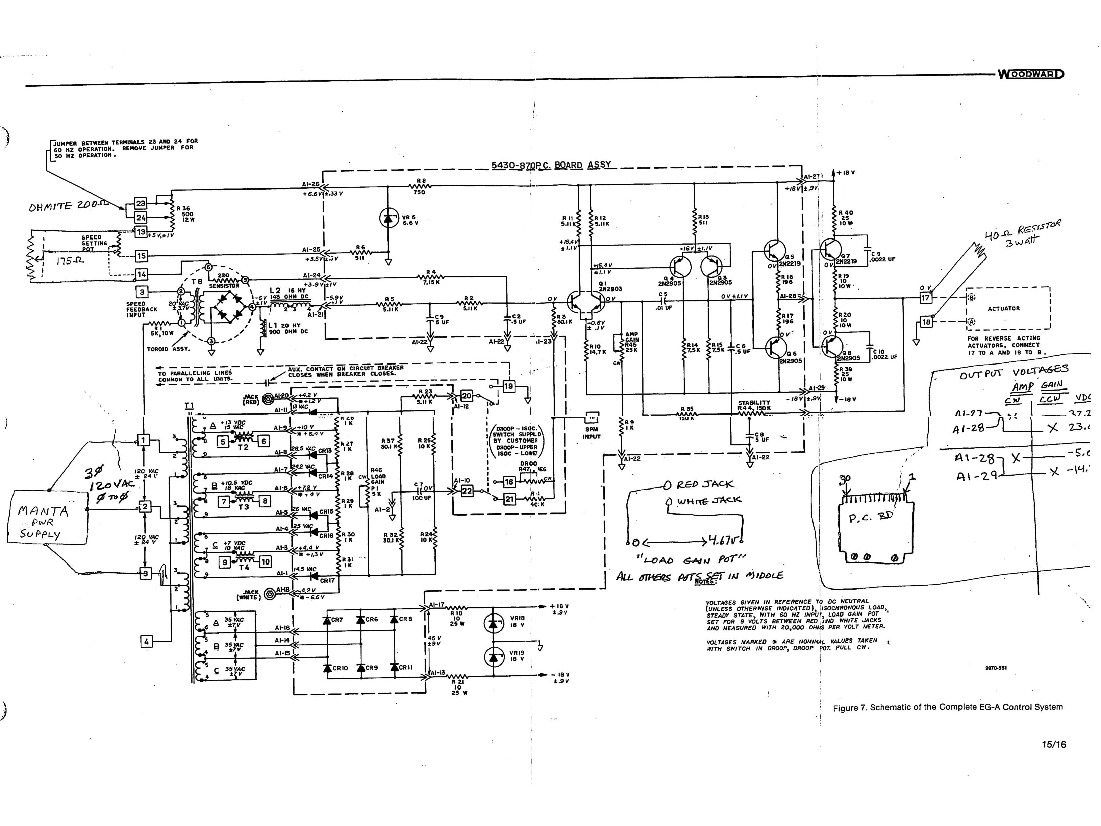

About the 9903-003

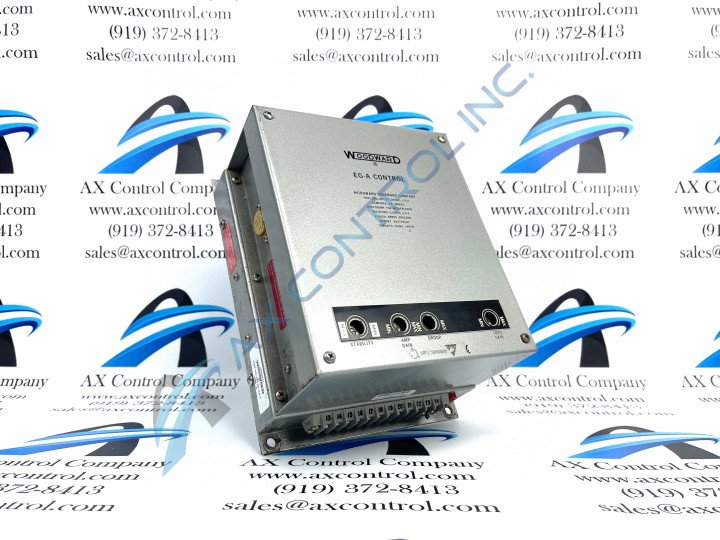

Woodward Model 9903-003 is an Electronic Generator Amplifier Controller. The specific units we have in stock are fully encased with refurbished aluminum sheet metal. Coming in at 16 lbs 6 oz with external dimensions of 7.75W(in) x 4.75H(in) x 10.25D(in), or 19.685W(cm) x 12.065H(cm) x 26.035D(cm), the 9903-003 controller is an incredibly dense, rugged, and durable drive that matches current industry standards and has stood the tests of time.

This device does not come with any Aluminum Electrolytic Capacitors.

Tunable Stability, Amp Gain, Droop, and Load Gain factors along with an input current rating of 120VAC @ 50/60HZ allows users to control larger Woodward systems with relative ease.
These four settings can be adjusted via a turnable screw under the through-holes on the top face plate of the unit.

Stability controls the voltage under variable or spiking/lowering conditions. A stability set too low will result in the voltage of the generator fluctuating up and down, whereas a too-high stability setting will result in a slower voltage response. The Gain of the Amplifier (or Amp Gain) is the difference between the input and output signals. Droop allows synchronous generators to run in parallel so that loads are shared among generators with the same droop curve in proportion to their power rating. Load Gain can be calculated by determining or measuring the input and output voltages when there is no load connected to the 9903-003 output.

Reviews For 9903-003

Internal Review
(4.0)

Due to a lack of coherent documentation from Woodward, it may be difficult for us to provide advanced assistance on the 9903-003 outside of our regular buying, selling, or repair. However, don't let that stop you from reaching out as any questions you have could be ones that we have dealt with previously. - AX Control Inc.
