D0-05AA

About the D0-05AA

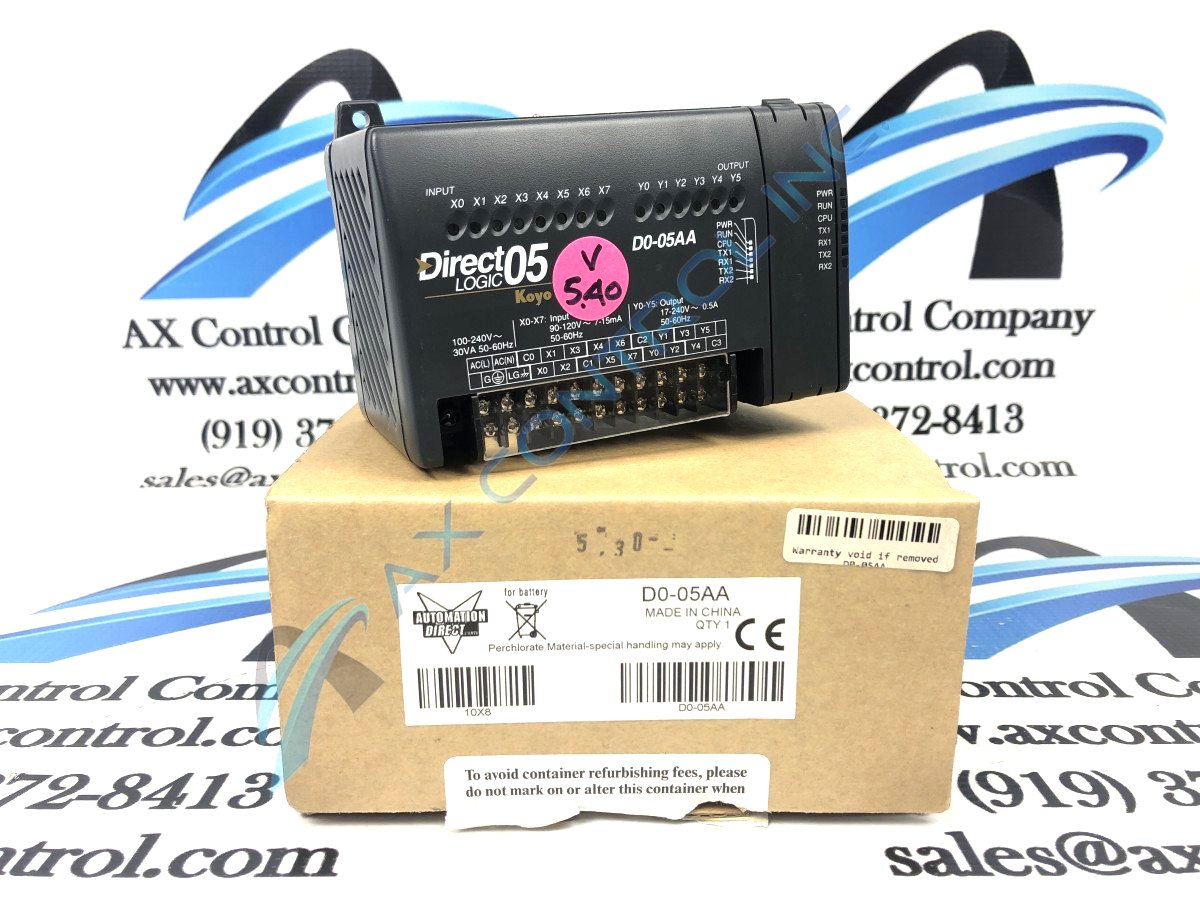

The DL05 Micro PLC Model D0-05AA has two RS–232C communication ports and 8 AC inputs and 6 AC outputs. The DL05 Micro PLC D0-05AA offers ample program memory, 133 machine code programming instructions, and advanced internal diagnostics. Data is stored in V-memory in 16-bit registers.

The external power requirement is 95-240 VAC, 30 VA maximum. The input voltage range is 80-132 VAC, 47-63 Hz. The operating voltage range is 90-120 VAC, 47-63 Hz. The D0-05AA contains 2 input commons and input fuses are not required.

The output voltage range is 15-264 VAC, 47-63 Hz and the operating voltage range is 17-240 VAC, 47-63 Hz. The D0-05AA contains 2 output commons and output fuses are not required. The peak output voltage is 263 VAC.

The ambient operating temperature is 32ºF-131ºF (0º to 55ºC) and the ambient humidity is 5 to 95% relative humidity (non-condensing).

Port 1 on the D0-05AA is a 6-pin modular connector that can be connected to a handheld programming device, an operator interface, or other device containing optional programming software, such as DirectSOFT 5. Port 2 is a 6-pin modular connector and it offers RS-232 communications only.

The D0-05AA features TERM (Terminal), RUN, and STOP operating modes that are accessed through a switch on the device. RUN and TEST modes are available from a handheld programming device or DirectSOFT 5 programming software. In RUN mode, if no errors are encountered, no program changes are allowed by the connected device. In STOP mode, no changes are allowed.
