D0-06AA

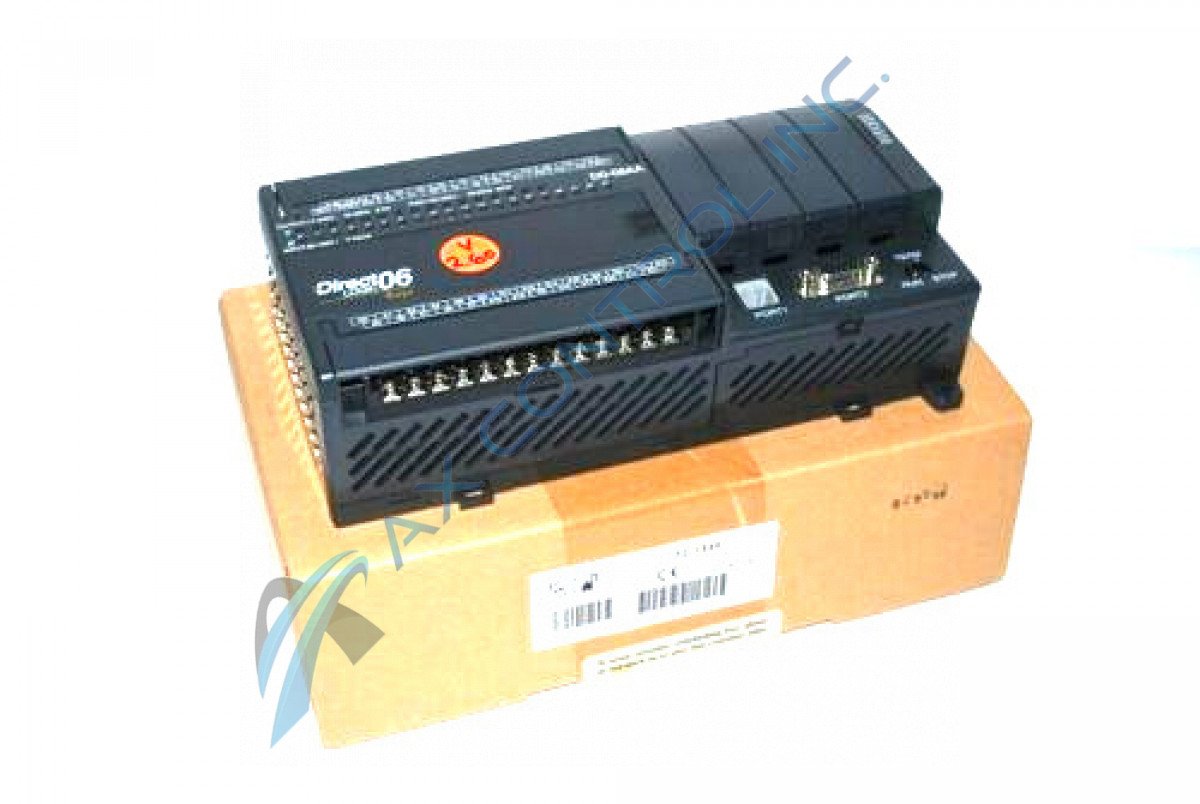

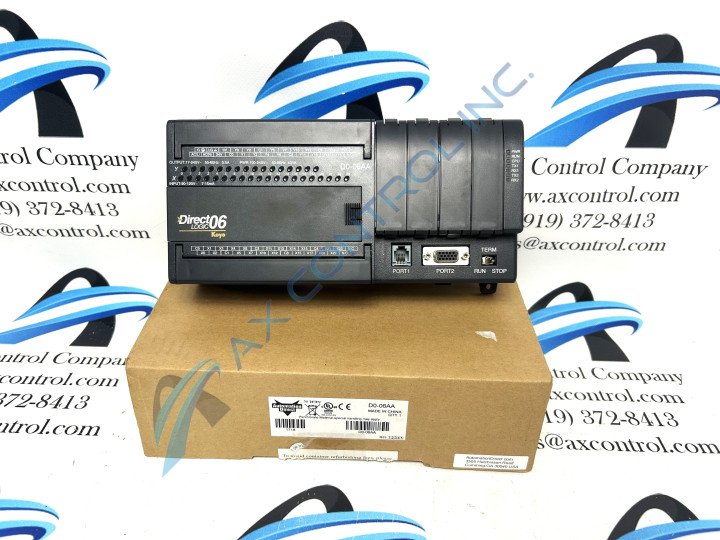

About the D0-06AA

The ports on the DL06 Micro PLC Model D0-06AA are 1 RS–232C port used for communication and one RS232C/RS422/RS485 port that supports many functions.

The D0-06AA has 20 AC inputs and 16 AC outputs. The DL06 Micro PLC D0-06AA offers the following features.

• V-memory for programming purposes (stored in 16-bit registers)

• 229 machine code programming instructions

• Diagnostics

The external power requirement is 100-240 VAC, 40 VA maximum. The input voltage range is 80-132 VAC, 47-63 Hz. The operating voltage range is 90-120 VAC, 47-63 Hz. Inputs are arranged into five banks of four. Each bank has an isolated common terminal.

The output voltage range is 15-264 VAC, 47-63 Hz and the operating voltage range is 17-240 VAC, 47-63 Hz. Outputs are wired into four banks of four triac switches. Each bank has a common terminal.

The operating temperature is 32ºF-131ºF (0º to 55ºC) and the humidity is 5 to 95% relative humidity (non-condensing). Connect Port 1 and Port 2 on the D0-06AA to a laptop for programming. Port 1 has a 9-pin connector. Port 2 is a 15-pin HD-sub connector.

The operating modes are useful for programming purposes. They are controlled from switches on the device. RUN, STOP, and TEST are 3 modes that are also available from a device.
