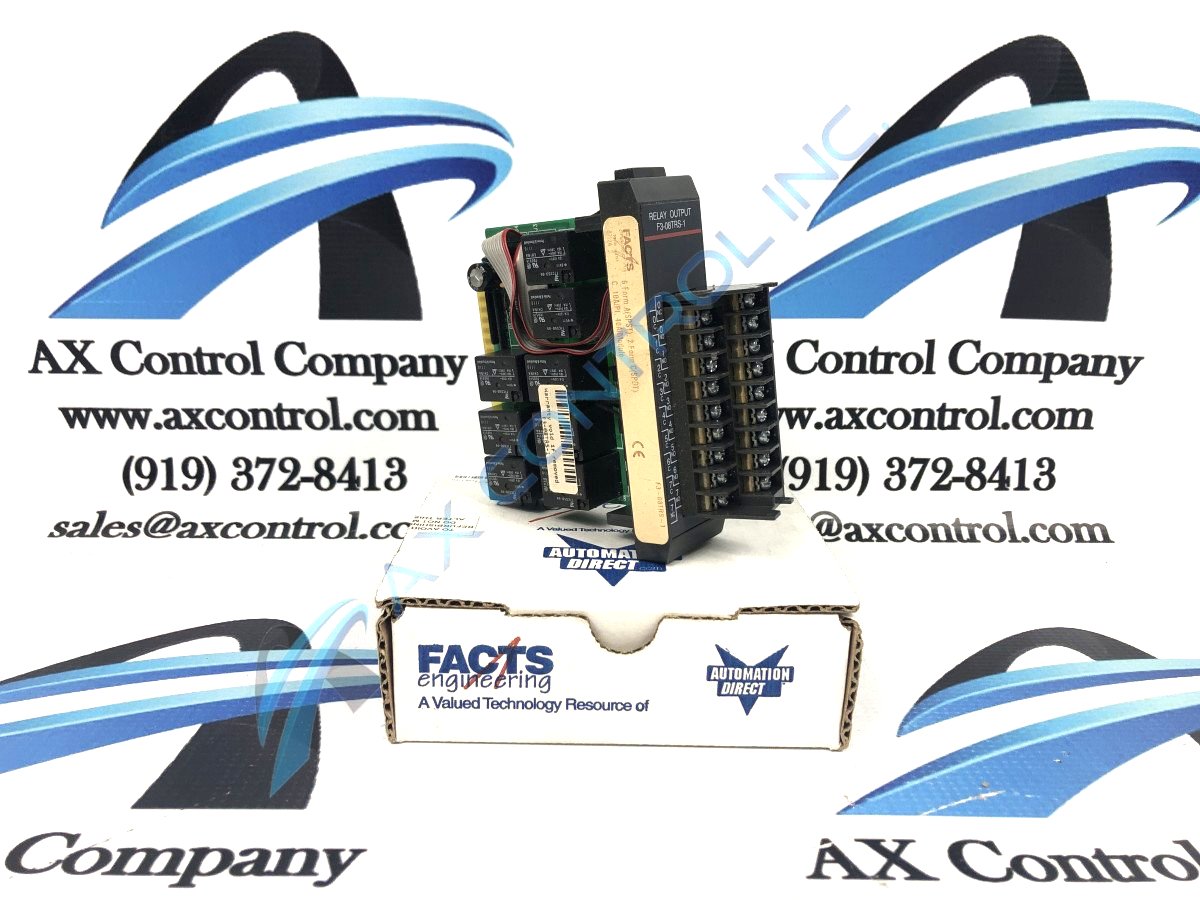

F3-08TRS-1

About the F3-08TRS-1

This module is one part of a DirectLogic 305 system. It is intended to be used with other DL305 system components, including DL CPUs, Bases, a Handheld Programmer, and DirectSOFT programming software. F3-08TRS-1 Relay Output Modules require DirectSOFT v4.0 or later.

This module also supports motor starters up to and including a NEMA size 4. Additional information on the compatibility of the F3-08TRS-1 with other DirectLogic and third-party components can be found in DL305 User Manual Number: D3--USER—M.

This unit is a 12-24 VDC/12-240 VAC model with a removable terminal block. There are 8 outputs on the F3-08TRS-1 Relay Output Module. Six of these outputs are Form A (SPST) and two outputs are Form C (SPDT). Each of the 8 isolated commons on this module has a 10A (125V) fuse, all of which are non-replaceable.

DL305 Relay Output Module model F3-08TRS-1 has a maximum OFF to ON response time of 13 ms, and a maximum ON to OFF response time of 9 ms. Logic side status indicators provide an at-a-glance overview of module and system conditions.

This module can withstand temperatures between 0° C and 60° C (32° F and 140° F), and 5% to 95% relative humidity. Full environmental specifications of the F3-08TRS-1 reflect those of the overall DL305 system it is designed to fit into, which are laid out in DL305 Manual D3--USER—M.
