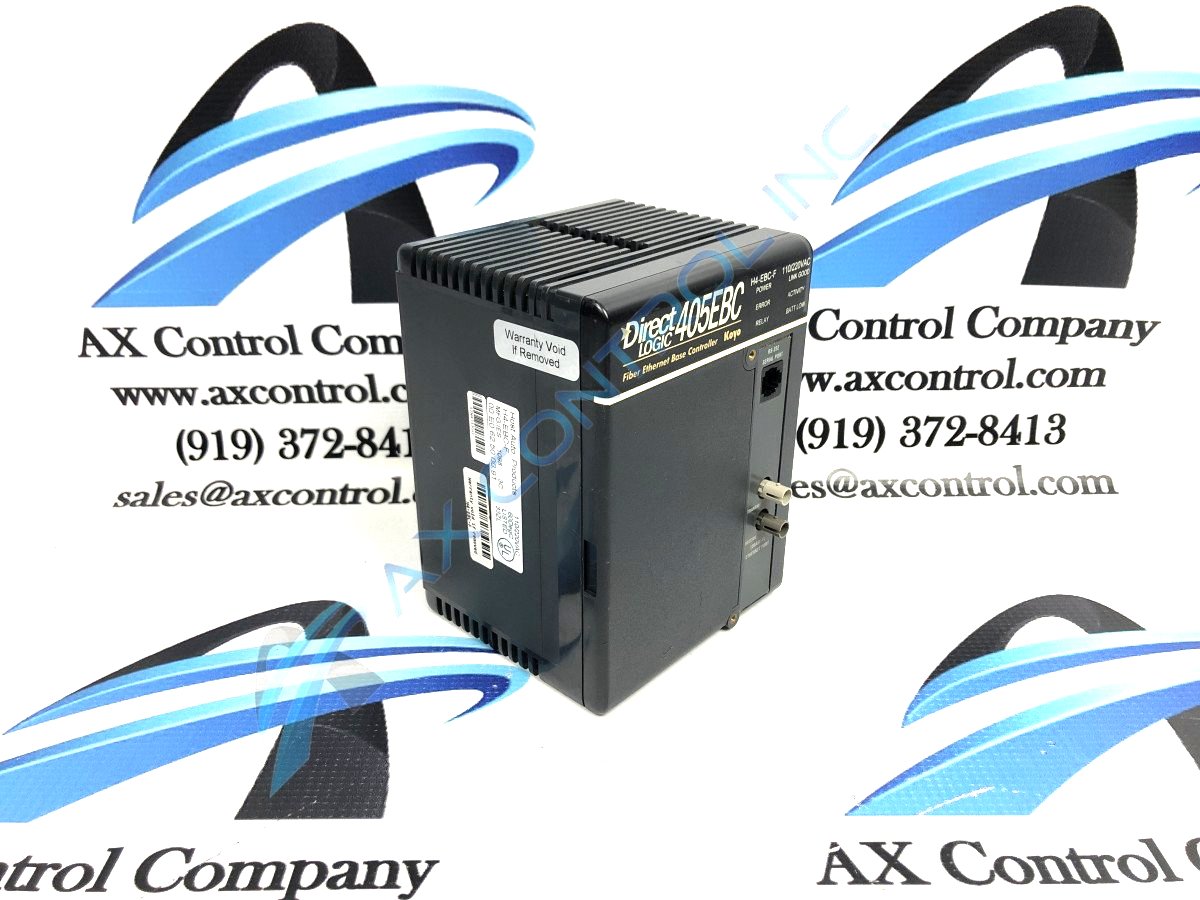

Produced by Automation Direct, the H4-EBC-F is an Ethernet Base Controller that allows for communication between DL205 and DL405 I/O bases with a PC.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a H4-EBC-F to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: H4-EBC-F
  • SKU: H4EBCFAD
  • Manufacturer: Automation Direct
  • Series: DirectLogic 405

H4-EBC-F Technical Specifications

Model Number H4-EBC-F
Manufacturer Automation Direct
Communications 10BaseFL Ethernet
Link Distance 2,000 meters (6,560 ft)
Ethernet Protocols TCP/IP, IPX
Serial Port RJ12, K-sequence
Power Supplied 3330mA @ 5VDC, 400mA @ 24VDC
Data Transfer Rate 10Mbps
Ethernet Port ST-style fiber optic

About the H4-EBC-F

Produced by Automation Direct, The H4-EBC-F is an Ethernet Base Controller created for the DirectLogic product line. The H4-EBC-F allows for communication between DL205 and DL405 I/O bases and a laptop or PC-based control system. The main functions of the H4-EBC-F are to distribute output signals, receive and translate output signals from the software on the PC, send signals to the controller on the PC, format signals coming from the I/O to Ethernet standards, and to process analog and digital input signals.

The Ethernet Base Controller is capable of scanning all I/O and can store the most recent values in the device’s cache memory. During each scan, the EBC reads every available channel of digital modules. Values are updated as this process transpires, and the data is subsequently updated by the device. This occurs rapidly, enabling extremely quick response times to and from the system.

This device is rated for 110/220 V AC. It features an RS-232 serial port and a 10Base-FL Transmit and Receiver port. The 10Base-T port is an unshielded twisted pair cable that can support up to 1024 stations. The H4-EBC-F also has six LED indicator lights that will alert users to various statuses within the system. These indicators are labeled POWER, ERROR, RELAY, LINK GOOD, ACTIVITY, and BATTERY LOW. The H4-EBC-F has a base 10MBPS speed and uses TCP/IP and IPX.

Frequently Asked Questions about H4-EBC-F

What is the H4-EBC-F?

Automation Direct's H4-EBC-F is an Ethernet Base Controller (EBC) that is designed for use with the DirectLogic 205 and 405 I/O bases. It is able to distribute output signals, receive and translate output signals from the software on the PC, send signals to the controller on the PC, format signals coming from the I/O to Ethernet standards, and to process analog and digital input signals.

Where is the H4-EBC-F installed?

The H4–EBC(–F) installs in the CPU slot of a DL405 base and communicates across the backplane to digital and analog, input and output modules.

Reviews For H4-EBC-F

Internal Review
(5.0)

All EBCs offered by DirectAutomation, including the H4-EBC-F, permit 10Mbps transfer rates between the PC application and the I/O base. These rapid communications speeds allow for maximum effectiveness. - AX Control Tech
