ISM1100-10

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Model number ISM1100-10 is one of the In-Sight Micro Vision Systems with a PatMax feature. The model has a speed rating four times the ISM1020 model. The ISM1100-10 system can be used with the In-Sight Track and Trace models produced by Cognex.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a ISM1100-10 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: ISM1100-10
  • SKU: ISM110010CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight Micro Series Vision System

ISM1100-10 Technical Specifications

Bit Depth 8 bits/pixel, 256 grey levels
Extended Tool Set Features Non-Linear Calibration and Caliper
Image Processing Memory 256MB SDRAM
Mounting Four M3 Threaded Mounting Holes
Power Type A and B
Sensor Type 1/3" CCD

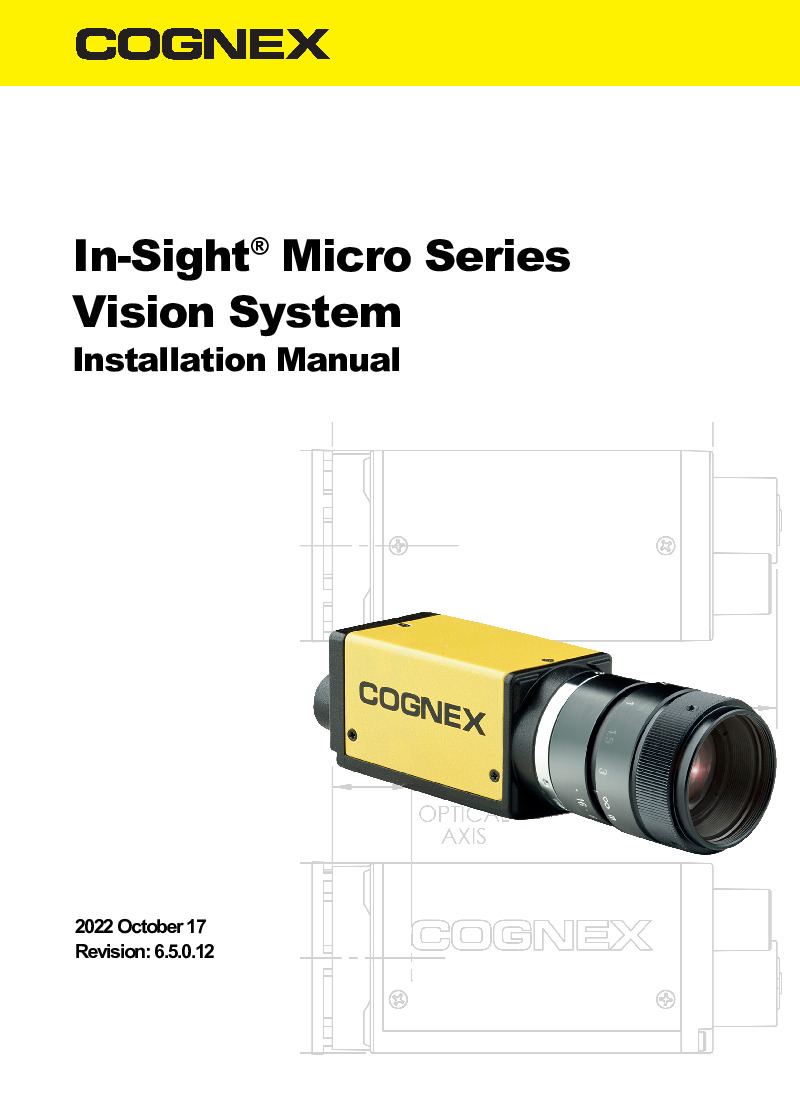

Serial Communication Types None, according to In-Sight Micro Series Vision System Installation Manual
Storage Temperature -22 to 176 °F

About the ISM1100-10

While the preceding features make the ISM1100-10 vision system an excellent choice of model, another thing that makes the ISM system perfect for you is its ability to be used with another model produced by Cognex. One of the main models that can be connected to the In-Sight Micro Vision Systems is the In-Sight Track and Trace models. The two systems will work together to create a complete data verification resolution for the serialized labels on both medical and pharmaceutical device packaging. The firmware and In-Sight Explorer version required to run the In-Sight Track and Trace and In-Sight Micro systems together is Version 4.3.4.

Sometimes after operating the ISM1100-10 model for a while a good cleaning is required. To clean the vision system image sensor window it is recommended that a pressurized air duster be used to initially remove the dust from the outside of the sensor window. Any moisture, oil, or other contaminants that remain on the glass of the image sensor window could potentially distort and degrade the image. If after thorough cleaning the contaminants still remain on the window use a bit of isopropyl, methyl, or ethyl alcohol and a cotton swab.

Frequently Asked Questions about ISM1100-10

What are the dimensions for a ISM1100-10 Cognex ISM Vision System?
The Cognex ISM1100-10 In-Sight Micro Vision System ISM 1100 dimensions vary depending on if the mounting block is adapted to the vision system. The dimensions listed for the vision system ISM1100-10 separate from the mounting block are 30mm by 30mm by 60mm (1.18 in x 1.18 in x. 2.36 in). In comparison, the dimensions with the mounting block are 30mm by 38.2 mm by 60 mm (1.18 in x 1.50 in x 2.36 in). The weight of the a ISM1100-10 Cognex ISM Vision System without the mounting block is 121g or 4.27 oz. and with the mounting block the weight increases to 146g or 5.15 oz.
What is the operating temperature range for the Cognex ISM1100-10 In-Sight Micro Vision System ISM 1100?
The operating range of a Cognex ISM1100-10 In-Sight Micro Vision System ISM 1100 and for all Cognex vision systems is from 0 degrees C to 45 degrees C (32 degrees to 113 degrees F). However the vision systems have a broader range of storage temperatures. The listed storage temperature range is from negative 30 C to 80 degrees C. (negative 22 degrees F to 176 degrees F) for a Cognex ISM1100 vision system.

Reviews For ISM1100-10

Internal Review
(5.0)

The ISM1100-10 model features an extended tool set. The extended toolset gives two new features, which include a non-linear calibration and a caliper tool. All remaining features can be easily found in the In-Sight Micro Series Vision System Data Sheet. - AX Control Technician

Repair Services For ISM1100-10

Type Lead Time Price Action
Repair Service 1-2 weeks $594

Our highly skilled technicians can repair your ISM1100-10. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
