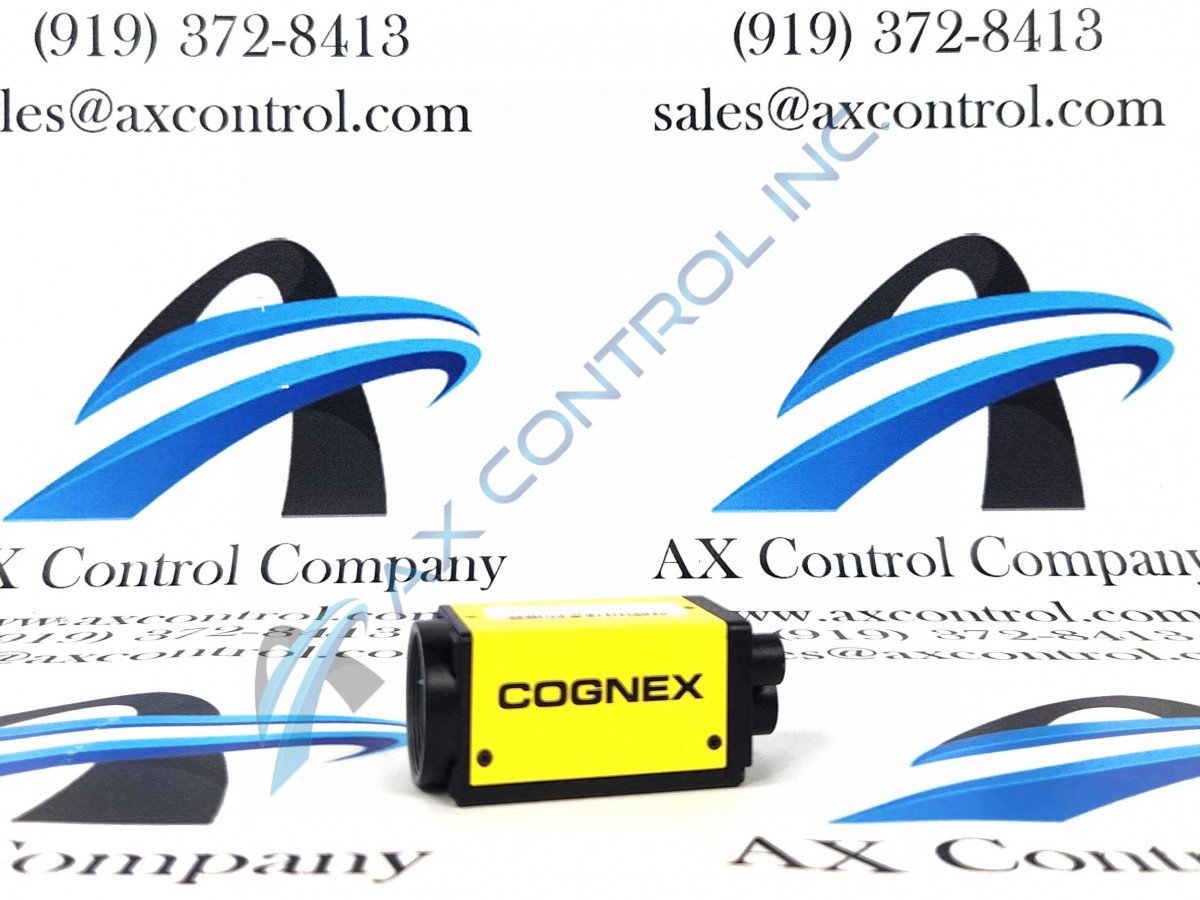

The ISM1413-01 model is part of the In-Sight Series Micro Vision System manufactured by Cognex Vision. This model has an 81-microsecond maximum latency I/O delay. The ISM1413-01 model has at least fourteen full frames per second.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a ISM1413-01 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: ISM1413-01
  • SKU: ISM141301CV
  • Manufacturer: Cognex Vision
  • Series: In-Sight Micro Series Vision System

ISM1413-01 Technical Specifications

Bit Depth 8 bits/pixel (256 Grey Levels)
Frame Rate 14 full frames per second
Maximum Pixels 1600 x 1200
Program Memory 128 MB Non-Volatile Flash Memory
Sensor Type 1/1.8" CCD
Shutter Speed 52 µs to 1000 ms
Storage Temperature -30 to 80 °C
Weight w/o Mounting Block Max. 4.27 oz

About the ISM1413-01

Vision System Model ISM1413-01 is one of the In-Sight Micro Cameras. There are several compliances associated with this unit which are FCC, KCC, TÜV, SÜD, RoHS, CE, and NRTL. The standard frame rate per second that this unit will operate on is fourteen full frames per second, but it is vital to note that the maximum frame rate depends on the assigned job for the unit, the minimum exposure for a full image frame capture will use the acquisition trigger and will assume that an interface connector to the vision system is non-existent.

This unit has specific sensor properties that are used. The sensor properties used regarding the ISM1413-01 model are 8.8 mm diagonal, 4.4 x 4.4. μm square pixels. During the operation of this device, there is also an acquisition that is required; the acquisition used is full-frame integration, rapid reset, and progressive scan.

There are several connector types that need to be used if connecting the ISM1413-01 model, for example, there are Ethernet, I/O, breakout, and RJ-45 LAN cables. The RJ-45 LAN cable is used for connecting this model to an Ethernet network. The RJ-45 cable will directly connect to the vision system’s LAN port, which connects the vision system to the chosen PC or router/switch. The Ethernet cable is used to provide a connection to the Ethernet to allow for power supplies to the vision system as well as network communication. Please note that there are two eight-pin ends that have different signals and wire associations. The wire association for pin 6 on P1 and pin 1 on P2 is orange/white.

Frequently Asked Questions about ISM1413-01

How should the housing of the Cognex Vision In-Sight Micro ISM 1413 Series Vision System ISM1413-01 be cleaned?
The housing of the ISM1413-01 is a die-cast zinc housing with a painted finish. This housing can be cleaned with either isopropyl alcohol or a mild detergent cleaner with a cloth application.
What are the trigger and input specifications of the Cognex Vision In-Sight Micro ISM 1413 Series Vision System ISM1413-01?
The Cognex Vision systems, including the ISM1413-01, have a single opto-isolated trigger acquisition input. The user is able to configure remote commands with use of an Ethernet connection. The system by itself does not have any inputs without use of the I/O modules (CIO-MICRO-CC or the CIO-MICRO). With those I/O modules, eight inputs are available in addition to eight additional outputs (general-purpose). The unit has two NPN/PNP outputs originally that are high-speed and opto-isolated.
What is the network capability for communication of the ISM1413-01 Cognex vision system?
The ISM1413-01 has an Ethernet port for network communication. The unit supports a static or a link local IP address configuration, in addition to factory default (DHCP) address configuration. The Ethernet port is 10/100 BaseT with auto MDI/MDIX. Over this Ethernet connection (PoE device) the unit is specified as class 2 power.
