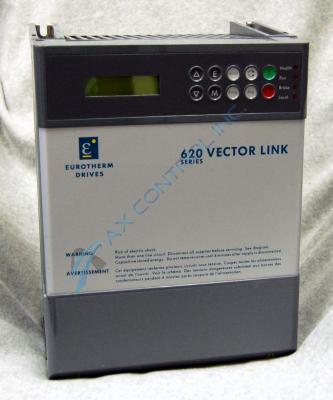

About the 620L00404000010
The Eurotherm 620L00404000010 enables speed control of induction motors with an encoder. It also provides for a co-processor and ports for a fibre optic communications network.
Once you have purchased the Eurotherm 620L00404000010 and have received the device from the shipper, it is easy the plan the installation and certification before you install the device and bring it up to speed and it becomes part of the manufacturing line.
You must secure the Eurotherm 620L00404000010 to a wall using only four bolts or screws that are the right size. The device is heavy so care must be taken during the installation. The device has four keyholes on the back panel that are used for attachment. When you attach the bolts to the wall make sure they match the keyholes exactly.
The wall has to be solid to support the weight and it must also be cool so as to not heat up the Eurotherm 620L00404000010. Select a wall that does not have heat generating devices nearby that would heat the wall.
Make sure the enclosure or cubicle you install the device in is suitable for the intended purpose. Some enclosure are required to have a door that opens only with a tool or key. Follow all local requirements for the space.
Ventilation is an important requirement in the manufacturing environment. Cool air enters the device from the bottom vents and exits the device as hot air through the top vents. Keep cables, other devices, and other items away from the device to maximise airflow. 7 inches are needed for clearance on the top and bottom of the device. On the sides, allow at least 4 inches.
