About the 620STD-0075-400-0010-US-ENW-0000-000-B0-000-000

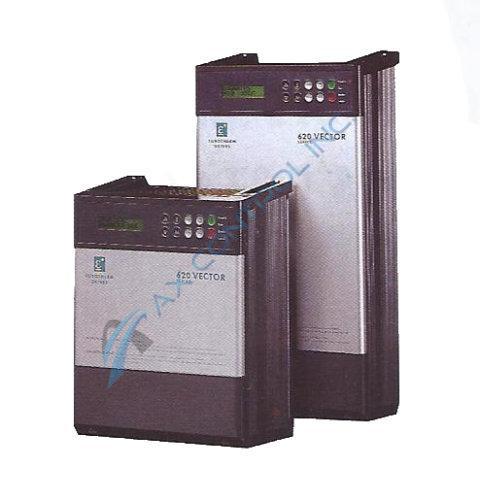

620STD-0075-400-0010-US-ENW-0000-000-B0-000-000 is an AC drive manufactured by Eurotherm. A standard drive from the 620 Vector series, this device operates well with AC induction motors. Speed controls are integrated into high performance features, providing an exceptional user experience. The motor in the drive can produce speeds up to 7.5 kW. When powering the drive, nominal inputted voltages should be maintained between 380 and 460 VDC. As the drive is manufactured to meet US standards, the frequency of the drive is set to 60 Hz.
The 620STD-0075-400-0010-US-ENW-0000-000-B0-000-000 offers both analog and digital I/O communications options. Analog I/O offers two programmable analog outputs as well as five inputs, with four of them being programmable. Digital I/O features nine 24VDC inputs, with four being programmable, and three programmable analog outputs. Built in braking options inlcude a factory installed brake power switch. All 620 Vector drives include a man machine interface (MMI) system to simplify and expedite user interface. An attached alphanumeric keypad allows for on site access to system parameters, alarms, and diagnostics.
Manufacturer provided installation parameters should be followed to preserve the drive. Enclosed in a IP20 housing, 620STD-0075-400-0010-US-ENW-0000-000-B0-000-000 is protected from floating particle debris. When installed on a line, maintain ambient temperatures between 32℉ and 122℉ (0℃ and 50℃). Refer to the 620 Vector series manual and drive datasheet for a complete wiring and installation guide. The manufacturer, Eurotherm, was the original technical support provider.
AX Control’s friendly and knowledgeable staff is ready to help with all of your automation needs. To receive current prices on all parts and repairs, please contact a member of our sales team by phone or email.
