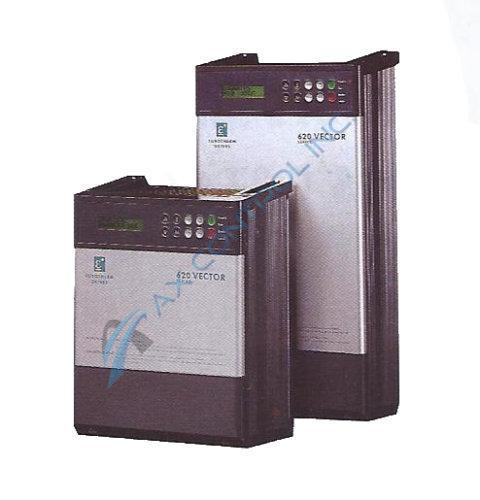

About the 620STD00074000010UKENW0000000B0000000
620STD00074000010UKENW0000000B0000000 is an AC drive developed by Eurotherm. As a standard 620 Vector series unit, this drive optimizes analog setpoints and logic control systems featured on a number of AC induction motors. Advanced speed control options allow users to optimize outputs by this 0.75kW rated device. Sourced voltages to the drive should be nominally rated between 380 and 460 VDC. This unit is compliant with European electrical standards as it features a set frequency of 50 Hz.
Both analog and digital I/O interface is built into the 620STD00074000010UKENW0000000B0000000. User programming of these I/O ports is available as four of the nine digital 24VDC inputs are programmable as well as four of the five analog inputs. All three digital outputs are programmable as well as both of the two analog outputs. User access to the drive is further expanded with the MMI (man machine interface) system and its attached keypad. This system provides users with the ability to see and alter system parameters, diagnostics, and alarms.
Installation parameters provided by Eurotherm should be met to ensure proper device operation. An IP20 rated enclosure protects 620STD00074000010UKENW0000000B0000000 from small floating debris. The drive itself is temperature sensitive, requiring a climate controlled operating facility. Factories and production lines should strive to maintain ambient temperatures no lower than 0℃ and no higher than 50℃. Users can access wiring and installation instructions in both the 620 Vector series manual as well as the drive datasheet. Technical support was originally provided by the manufacturer, Eurotherm.
AX Control’s sales team is happy to help with all of your automation needs and questions. To receive current prices and availabilities on parts and repairs please contact our office by phone or email.
