About the 620STD00754000010UKENW0000000B0000000

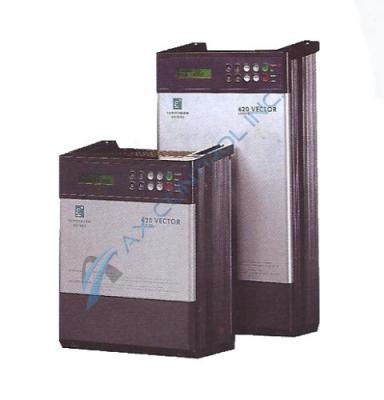

Eurotherm’s 620STD00754000010UKENW0000000B0000000 is a standard drive developed for the 620 Vector series. AC induction motors that use analog setpoints and logic controls are the best application for drives from this series. High performance speed controls allow users to customize their experience with this 7.5kW drive. Voltages fed to the device should nominally rate between 380 and 460 VDC. This device is designed to adhere to European and UK electrical standards, including a set frequency of 50 Hz.
620STD00754000010UKENW0000000B0000000 accepts both analog and 24 VDC digital I/O communications. The drive features nine integrated digital inputs and three programmable digital outputs. Five analog inputs and two programmable analog outputs complete the I/O capabilities of the drive. Found in the system is a MMI (man machine interface) that includes an alphanumeric keypad. This expanded user interface provides users with direct access to a number of system features, including parameters, alarms, and diagnostics.
Parameters outlining installation and storage requirements should be followed to preserve the drive. A protected IP20 rated enclosure protects 620STD00754000010UKENW0000000B0000000 from small airborne debris. Within the operating facility, ambient temperatures should be maintained between 0℃ and 50℃ (32℉ and 122℉) to ensure the device is not disrupted. Wiring instructions for the drive are available in the series manual as well as the device datasheet. Technical support for the 620 Vector series was originally provided by the manufacturer, Eurotherm.
Our sales team at AX Control is happy to help with all of your automation needs and questions. For prices and availabilities on all parts and repairs, please contact our office by phone or email.
