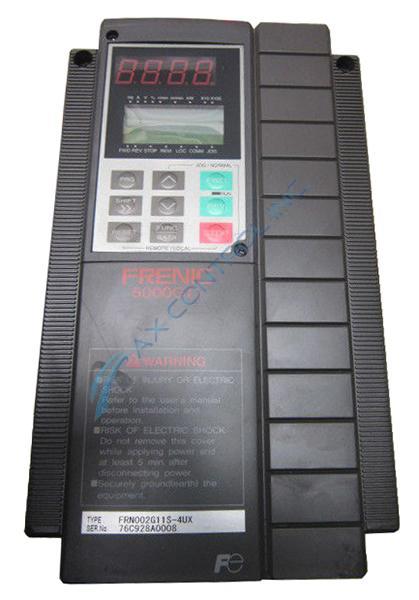

About the FRN002G11S-4UX
The Fuji Electric FRN002G11S-4UX is a general purpose inverter designed for the Frenic 5000 G11S series. A three phase drive, this unit can be employed for a number of factory or production line needs. An integrated dynamic vector control allows the device to calculate the exact motor power required for a specific job.
FRN002G11S-4UX features an integrated 2 HP motor to perform all provided operations. Input voltage ranges accepted by this device range from 380 V to 480 V with a frequency of 50/60 Hz. Outputs produced by this drive can range from 380 V to 460 V, with a maximum output of 480 V. Frequencies for these outputs range from as low as 0.1 Hz to 400 Hz.
Remote operation of this drive is possible as the keypad can easily detach from the unit. An LED display and an LCD screen are prominent features on the keypad. Applications for this drive encompass a number of production jobs, like crushers and cranes.
Provided installation parameters should be followed to prevent any accidental damages to the device. A NEMA 1 enclosure surrounds the drive, making it suitable only for indoor installation. Ambient temperature of operating facilities housing FRN002G11S-4UX should be maintained between -10℃ and 50℃ (14℉ and 122℉). Temperature damage can still occur even if the device is not in use. Storage conditions should fall between -25℃ and 65℃ (-13℉ and 149℉). The datasheet and series manual contains a complete installation and setup guide for this drive. Fuji Electric was the original technical support provider.
