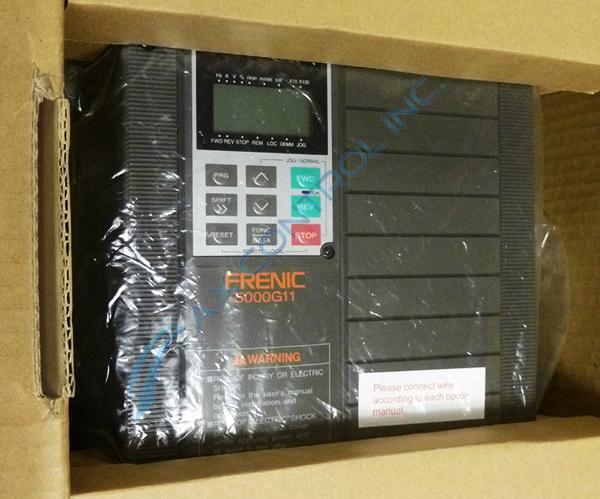

About the FRN010G11S-4UX
Fuji Electric’s FRN010G11S-4UX is a general purpose inversion drive designed for the Frenic 5000 G11S series. This three phase drive can be applied for a number of jobs in most factory or production line settings. Individual motor speeds for various load needs are calculated with the on board dynamic torque vector control.
FRN010G11S-4UX features a 10 horsepower rating. When inputting voltages from a source, the accepted voltage range goes from 380 V to 480 V with a 50/60 Hz frequency. 480 V is the maximum sustained input voltage the drive can withstand. Voltages outputted by this drive can range from 380 V to 460 V with a frequency range between 0.1 Hz and 400 Hz.
Remote operation of the drive is possible if the keypad is detached. An LCD monitor and a four digit LED screen are prominent features of the device. Multiple languages are programmed into the device, providing a broad range of uses.
Proper storage and installation parameters provided by the manufacturer should be followed to protect the device from any accidental damages. FRN010G11S-4UX is housed in a NEMA 1 enclosure, protecting it from some indoor elements. When operating in a facility, ambient temperatures should fall no lower than -10℃ (14℉) and no higher than 50℃ (122℉). The Frenic 5000 manual as well as the device datasheet contains a complete installation and usage guide. Technical support was originally provided by Fuji Electric.
Our friendly and knowledgeable staff at AX Control is happy to help with all of your automation needs. For current prices on all parts and repairs, please contact a member of our sales team by phone or email.
