About the FVR0.75E9S-2S

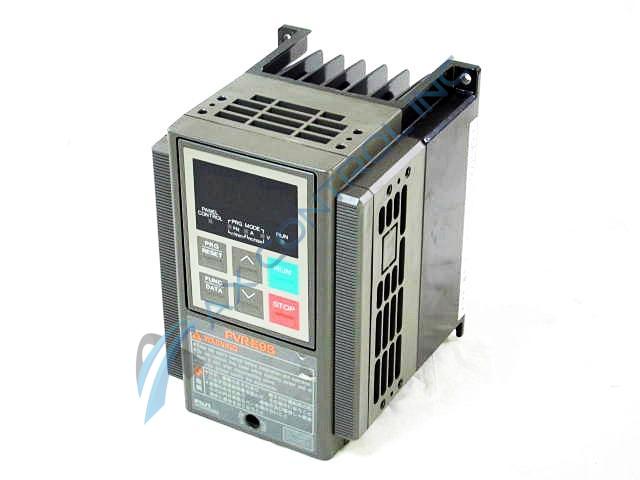

The Fuji Electric FVR0.75E9S-2 is a 0.75 kW inversion drive from the Frenic 5000 E9S series. Drives from this series are general purpose drives, providing motor access across a number of platforms. Devices like crushers, shredders, and elevators can all benefit from inverters like this. Efficiency and accuracy are integral design features of this series. A dynamic torque vector control system works to calculate the motor power required for an individual load.
Monitoring voltage levels both to and from the inverter will ensure that the device is operating within its bounds. When operating, output voltages from the device can measure between 200V and 230V. Frequencies for these outputs can range from 0.2Hz to 400Hz. The maximum sustained voltage the device can produce rates at 240V. Sourced inputs to the device can measure between 200V and 230V with a frequency of 50/60Hz.
FVR0.75E9S-2S requires that all manufacturer provided installation and storage parameters are followed. This will ensure that the drive is operating within its prescribed limits. As it is housed in a NEMA 1 enclosure, the inverter requires a climate controlled production line or factory. When installed, ambient temperatures of the drive should be maintained between 14℉ (-10℃) and 122℉ (50℃). For a complete walk through of all storage and installation procedures, please refer to the series manual as well as the device’s datasheet. Fuji Electric was the original technical support provider for this drive and the entire E9S series.
Our friendly and knowledgeable staff at AX Control is happy to help with all of your automation needs. Please contact a member of our sales team by phone or email to receive current prices on all parts and repairs.
