Product Description

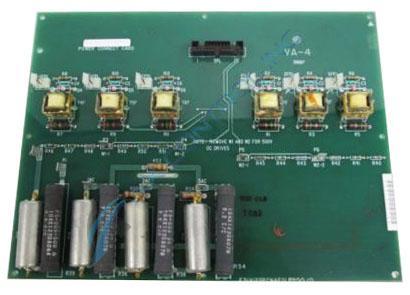

The GE Power Connection Board 531X122PCNAMG1 is a renewal part for multiple original equipment power connection boards. To configure the board to be compatible with your drive, jumpers are on the GE Power Connection Board 531X122PCNAMG1 that allow you to configure the board to be identical to the board you are replacing. Use the information that comes with the board to understand how to set the jumpers for your drive. Also, there might be other jumpers that must be set. Carefully review the defective board and set any jumpers in the same position on the new board. Use the jumper identifiers to match the jumpers on the defective board with same jumper on the new board because you might find that the jumpers are located in different locations on the new board.
Also cables might be connected on the old board. Don’t disconnect them until you label them with the connector number and any other useful information. That way, you can easily connect them on the new board easily and quickly.
Care must be taken when you disconnect the cables from the defective board because the cables are delicate and might break if not handled properly. Ribbon cables are made up of multiple fine wires and can easily be disconnected from the connector. Only grasp the ribbon cable from the connector to disconnect it. Use one hand to steady the board and grasp the ribbon cable with the other hand. Then, pull the connector out from the board.
