531X133PRUALG1

About the 531X133PRUALG1

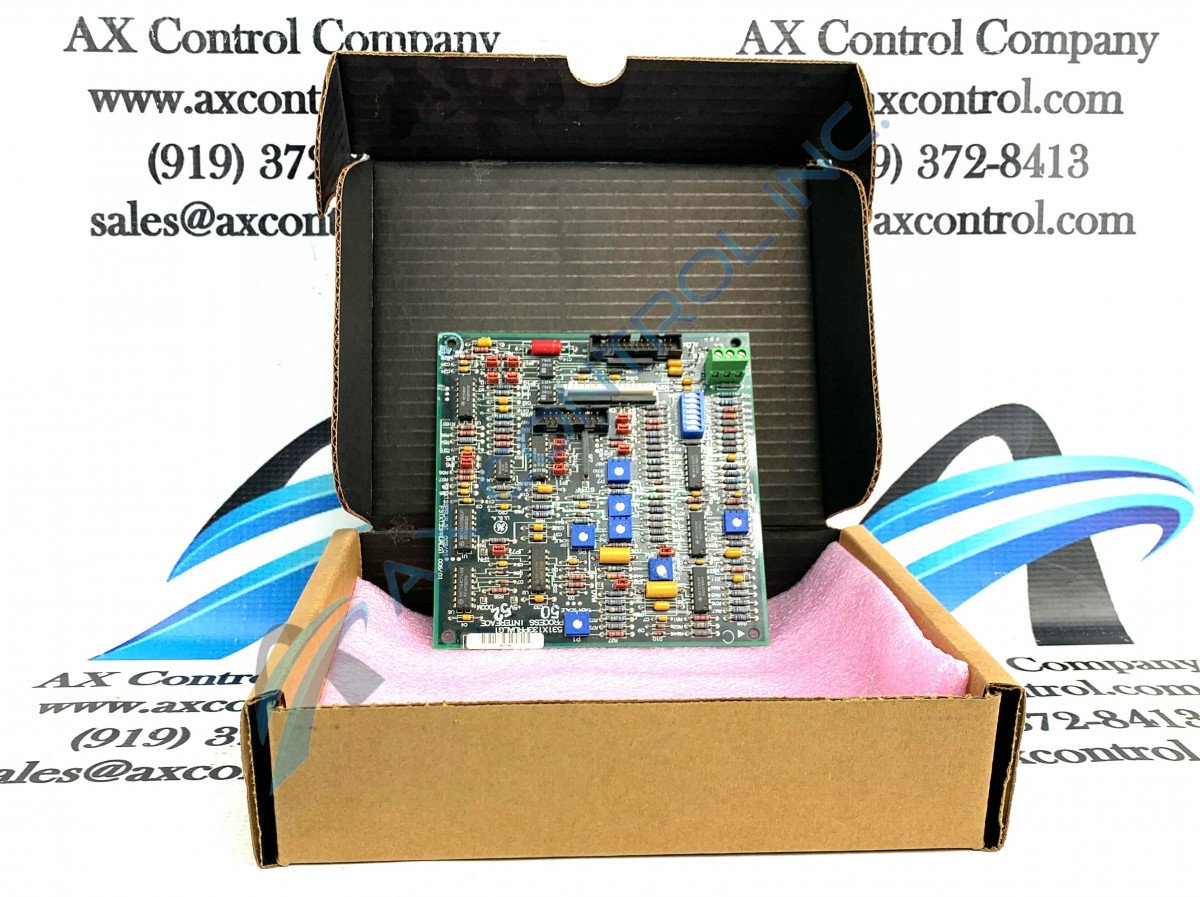

The 531X133PRUALG1 is a board component manufactured by General Electric.  The board can be used within general purpose drive systems made by GE. Your system’s user guide or manual will help you determine compatibility between this PCB and your particular system.

The  531X133PRUALG1 is a Process Interface Board.  Interface boards are typically used to filter, amplify, isolate, and convert input signals into outputs suitable for use for the connected control systems.  The 531X133PRUALG1 is one of several versions of the Process Interface board available within the 531x series.

The  531X133PRUALG1 is drilled in each corner to allow for mounting options. The board is marked with codes like F31X133PRUALG1, 006/01, and 002/01.  Most components carry individual part numbers from their manufacturers and are also marked by reference designators for easy identification.

The  531X133PRUALG1 has a single three-position terminal strip.  This is located in one corner of the board. It has two cable connectors.  Both connectors are male vertical pin components. There is also a single header connector located on the board surface.  The board has seven potentiometers, five resistor network arrays, dozens of metal film resistors, diodes, and ceramic capacitors, polyester vinyl capacitors, as well as a single aluminum electrolytic capacitor.  There are multiple TP test points and jumper switches placed on the board. Integrated circuits include analog line receivers and analog inverters. There is also a single switch component with seven individual toggles.  This component is labeled “Tach range.” More information about the board, its function, and information on installation and maintenance may be accessed through GE manuals and user guides.
