About the 531X134EPRBMG1

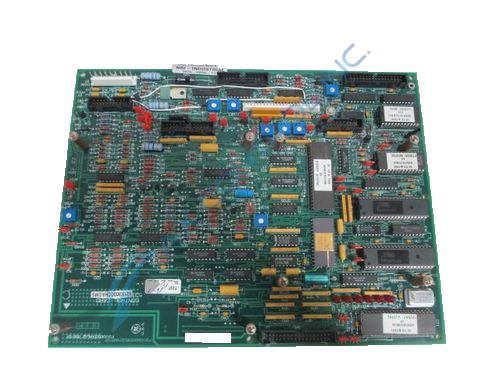

The 531X134EPRBMG1 is a process interface card by General Electric. The 531X134EPRBMG1 is a large circuit board with many large and small components. The 531X134EPRBMG1 has three male terminal ports that are used along with ribbon wiring harnesses to connect with surrounding circuit boards. The 531X134EPRBMG1 has a small blue box this seven white buttons. The blue box is labeled “OFF” on the bottom and has each button labeled one through seven. The 531X134EPRBMG1 has a light green tower with three flat head screws on the top. The 531X134EPRBMG1 has seven small blue Variable Resistors or Potentiometers. The 531X134EPRBMG1 also has over one-hundred and fifty resistors (some have banding and others have writing on the side). The resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. In electronic circuits, resistors are used in a multitude of ways such as reducing current flow, adjusting signal levels, dividing voltages, bias active elements, and terminating transmission lines, among other uses. The colored bands correspond with a color in the code that gives it a numerical value. These numerical values are then used in an equation to calculate the amount of energy the resistor can restrict. The 531X134EPRBMG1 features one-hundred and six various capacitors. These capacitors are used to store energy. The capacitors are used to store an electric charge, consisting of one or more pairs of conductors separated by an insulator. The 531X134EPRBMG1 also uses EPROM and EEPROM to store data for this circuit board to function.
Please call AX Control for further material.
