About the 531X137TRGACG1

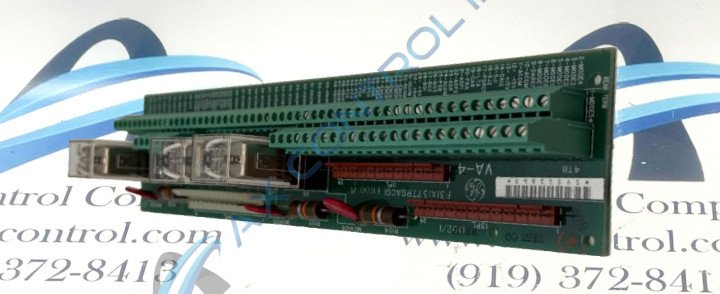

The 531X137TRGACG1 is a TB option card produced by General Electric. The 531X137TRGACG1 has three green sections with various amount of flat head screws in each. The shortest length has six screws, the middle length has twenty-four screws and the longest length has eighty-four screws. The 531X137TRGACG1 has labels for what each screw port does. The 531X137TRGACG1 has two male metal terminals that are used to connect the 531X137TRGACG1 with surrounding circuit boards. The 531X137TRGACG1 also utilizes:
- three circular red capacitors
- three transformers
- two light blue resistors
The transformers are a static electrical device that transfers electrical energy between two or more circuits. A varying current in one coil of the transformer produces a varying magnetic field, which in turn induces a varying electromotive force or "voltage" across a second coil. The colored bands on the TRGA device's resistors correspond with a color in the code that gives it a numerical value. In electronic circuits, resistors are used in a multitude of ways such as reducing current flow, adjusting signal levels, dividing voltages, bias active elements, and terminating transmission lines, among other uses.
