About the 531X179PLMAHG1
531X179PLMAHG1--Power Line Monitor Card
The 531X179PLMAHG1 is a board component manufactured by GE to fit into their general purpose drive systems. This includes systems like the DC-300 and other similar drives.

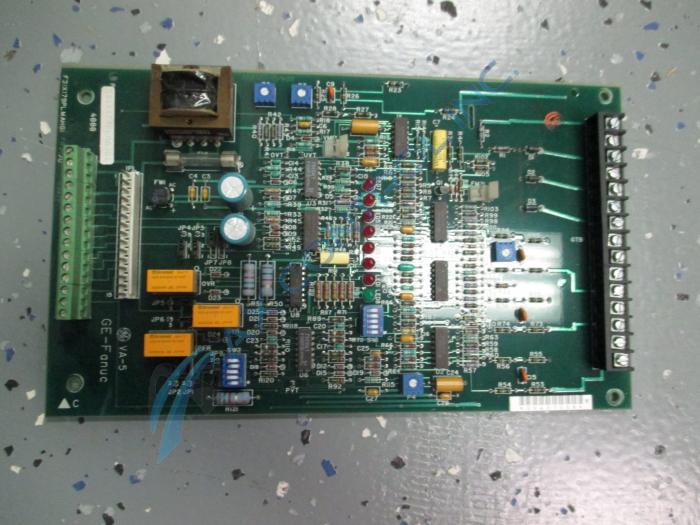

The 531X179PLMAHG1 is a Power Line Monitor Card. This board sometimes mounts as the top of two stacked cards mounted in a frame. The board has drilled mounting holes in the corners to allow for this. The board is marked with codes like GE-Fanuc and VA-5. It also has its alternate F31x board number printed on its front surface.
The 531X179PLMAHG1 has two terminal strips of two different types. One of these is located on one edge of the board and the other is located on the opposing edge. It also has three header connectors, including two two-pin headers and one larger connector. The board has two switch components with five toggles each. These toggles can be individually set.
The 531X179PLMAHG1 has a single fuse. This is placed next to the board’s only transformer. The 531X179PLMAHG1 has three relays, four potentiometers, several jumper switches, and several transistors.
There are eight integrated circuits on the 531X179PLMAHG1. There are eight LEDs placed in a single line; this includes one green LED and seven red LEDs. Other components on the board include capacitors made from ceramic material, electrolytic material, and polyester vinyl material, as well as resistors and diodes. More information may be found through drive manuals, series user guides, or board data sheets originally published by General Electric. GE provided all original technical support for this board series.
