531X182IFGAJG1

About the 531X182IFGAJG1

The 531X182IFGAJG1 is a PCB component manufactured by the General Electric company for use within several of their general purpose drive systems.  This includes the DC-300 drive, which is an adjustable speed drive system with AC or DC inputs and outputs. Your system’s user guide or manual should help determine compatibility with this board.

The 531X182IFGAJG1 functions as an Inverter Firing Generator Card.  This board is lettered on one edge and numbered on another. Information about the pin location of jumper switches one through six and eight through ten is printed on the surface of the board for quick reference.  The code 006/02 and the board id number are printed on the board.

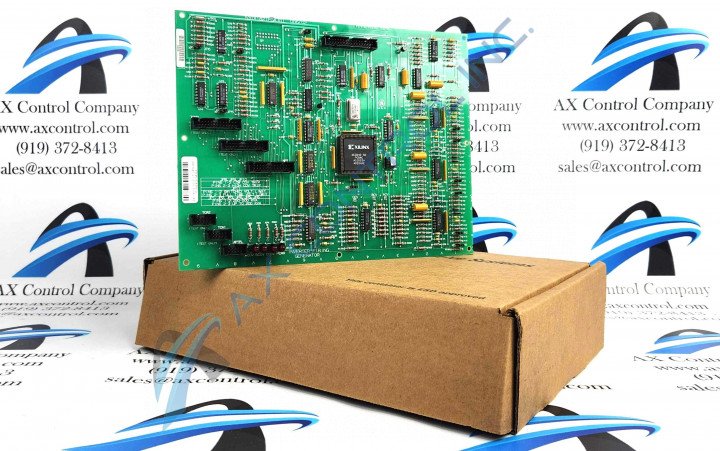

The 531X182IFGAJG1  is populated by seven vertical pin connectors.  Four of these are marked “Test only.” The board has seventeen resistor network arrays.  It has eleven jumper switches, two transistors, and several TP test points. The board has ceramic and polyester vinyl capacitors and metal film resistors, as well as multiple diodes.  The board has four LED indicators. These are labeled ACOV, BCOV, CCOV, and PERR. Integrated circuits include oscillating chips and a field programmable gate array. This chip has a 4mA output sink with error checking of the configuration bitstream.  All integrated circuits on the board are marked with their manufacturer part numbers.

More information about the 531X182IFGAJG1, its function, or information on handling or installation can be accessed through publications like manuals or user guides from GE that reference this part number.  Technical support for the 531x series was originally provided by General Electric.
