531X300CCHADM5

About the 531X300CCHADM5

The 531X300CCHADM5 is one of several GE Control Cards manufactured for use with general-purpose drive systems.  GE CCHAD boards can be used for a number of different industrial applications.   This board also carries an alternate F31x series number.

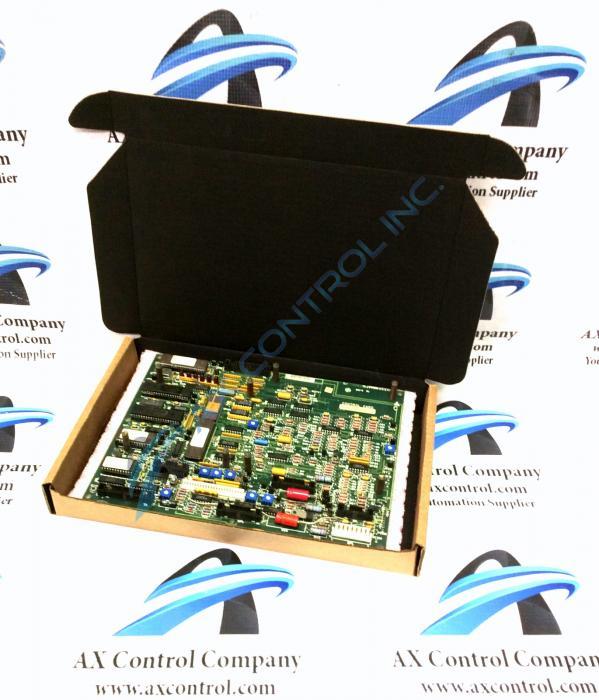

The 531X300CCHADM5 functions as a control board.  It has been factory drilled in each corner to ensure mounting options.   The board is marked on one edge with its alternate F31x part number (F31x300CCHAFG1.)   The board carries a number of different codes like 002/0, 004/0, and 94-V.  These codes should help with positioning and wiring.

The 531X300CCHADM5 board includes six LED indicators mounted to its surface.  These are labeled 1, 2, 4, 8, 16, and 32.  Additionally, the board has six vertical pin cable connectors and two header connectors, along with many single-pin connectors.  Surface wiring connects some components together.

The 531X300CCHADM5 includes a reset switch located near one corner of the board.   Other components include a voltage regulator, resistor network arrays, potentiometers, and transistors.  Thirty jumper switches will allow the board to be set up exactly as you need.

Use General Electric manuals and user guides for more information on this component.  These documents will provide you with important information regarding proper handling, as well as details regarding any associated safety precautions that should be taken when installing or maintaining this equipment.   AX Control can help you with these documents if you no longer have your originals.

AX Control is located in central North Carolina.  If you are close by and prefer to pick up your orders rather than having us ship your parts to you, let us know.  We’re happy to oblige.
