531X301DCCAHM1

About the 531X301DCCAHM1

The 531X301DCCAHM1 is a General Electric board component used as a Drive Control Board.  This is a large board component that functions as a primary drive controller within systems like the DC300, AC300, and AC500 systems from General Electric.  While these systems are now obsolete the general-purpose drive systems have many applications across industries.

The 531X301DCCAHM1 has multiple versions available.  It is vitally important for you to know which version of board your system requires and to order the proper board.  Please be sure you are ordering the exact board that is compatible with your particular system.  AX Control may have more than one component of any given board number in stock.  If you need more than one replacement board to maintain replacement stock on hand, we often can meet these needs for you.

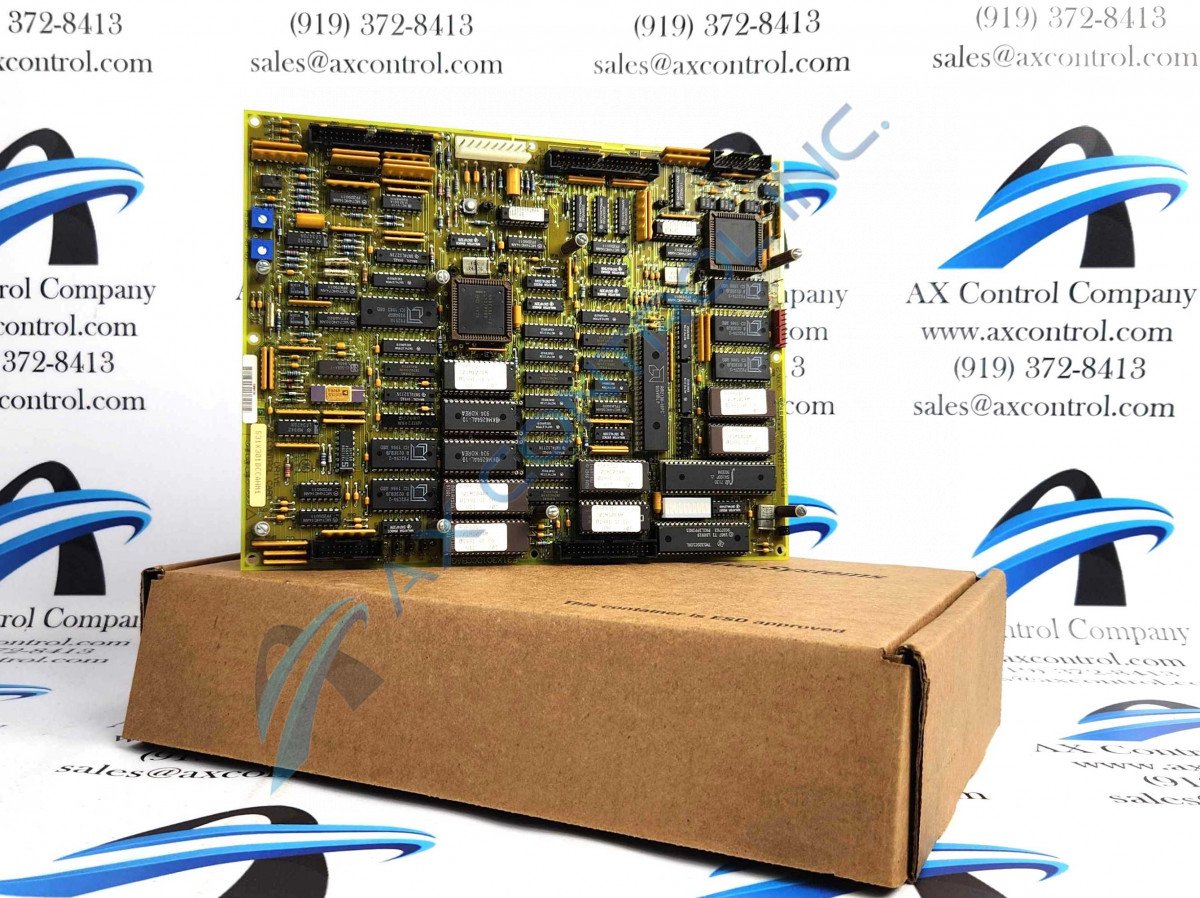

The 531X301DCCAHM1 is a large rectangular card that is component dense. It has been drilled in each corner to allow for mounting.  It also has several standoffs mounted on the board surface that will allow auxiliary cards to be mounted to the board.  These typically communicate with the board using cables plugged into one of the vertical pin connectors on the board.   Connectors on the board include d-shell connectors and vertical pin connectors.

Other board components on the 531X301DCCAHM1 include integrated circuits (over 80,) 14 jumper switches, along with resistor network arrays, diodes, capacitors, and resistors.

For a more detailed look at the 531X301DCCAHM1, please refer to manuals or data sheets originally published and provided by General Electric.  AX Control ships products several times each day.
