531X301DCCALM1--Drive Control Board
The 531X301DCCALM1 is a General Electric product that functions as a drive control board. It was manufactured by Fuji/General Electric together and is a FANUC component. It is designed to be a replacement part to be used within GE general-purpose drives like the DC300 system, which is typically used for industrial applications.
The 531X301DCCALM1 is used within GE general-purpose drives as a drive control board. It is important for you to note there are multiple versions of the DCCA circuit board available, each with minor differences from other cards. Please be sure to order a board that is compatible with your particular system.

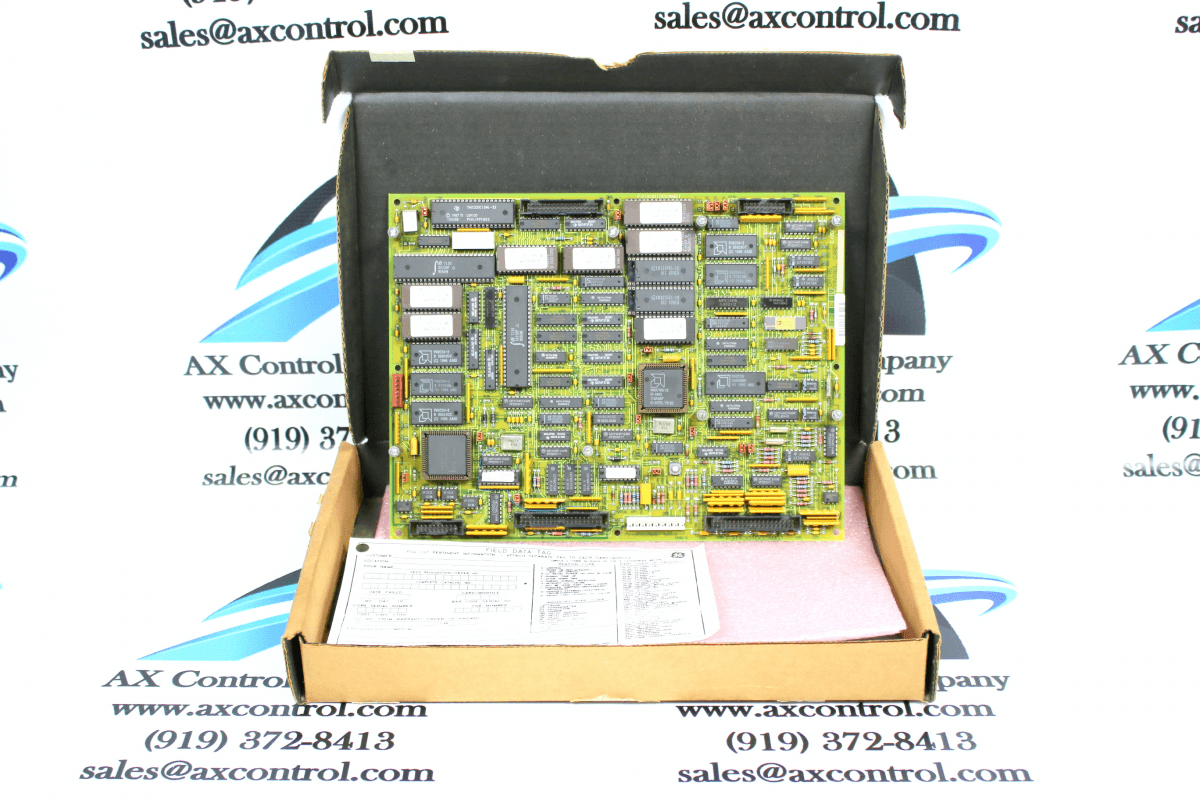

The 531X301DCCALM1 is a rectangle-shaped board that does not have an attached faceplate. However, the board is designed to accommodate the addition of auxiliary circuit boards. It has standoffs that have been pre-installed to allow for the installation of these auxiliaries. Auxiliary boards attach using screw mounts and communicate via connections to the main board that plugs into one of the 531X301DCCALM1’s vertical pin connectors. There are multiple connectors on the board’s surface.
The 531X301DCCALM1 has over eighty integrated circuits. These are used as analog inverters, FPGAs, analog decoder/drivers, and as high-performance operational amplifiers. Other components around the ICs include jumper switches that allow the user to customize settings, a reset switch, LED indicators, resistor network arrays and resistors, as well as capacitors and diodes.
For more information about this board, please refer to publications from GE. Manuals and user guides will give detailed information regarding proper handling and installation procedures.
