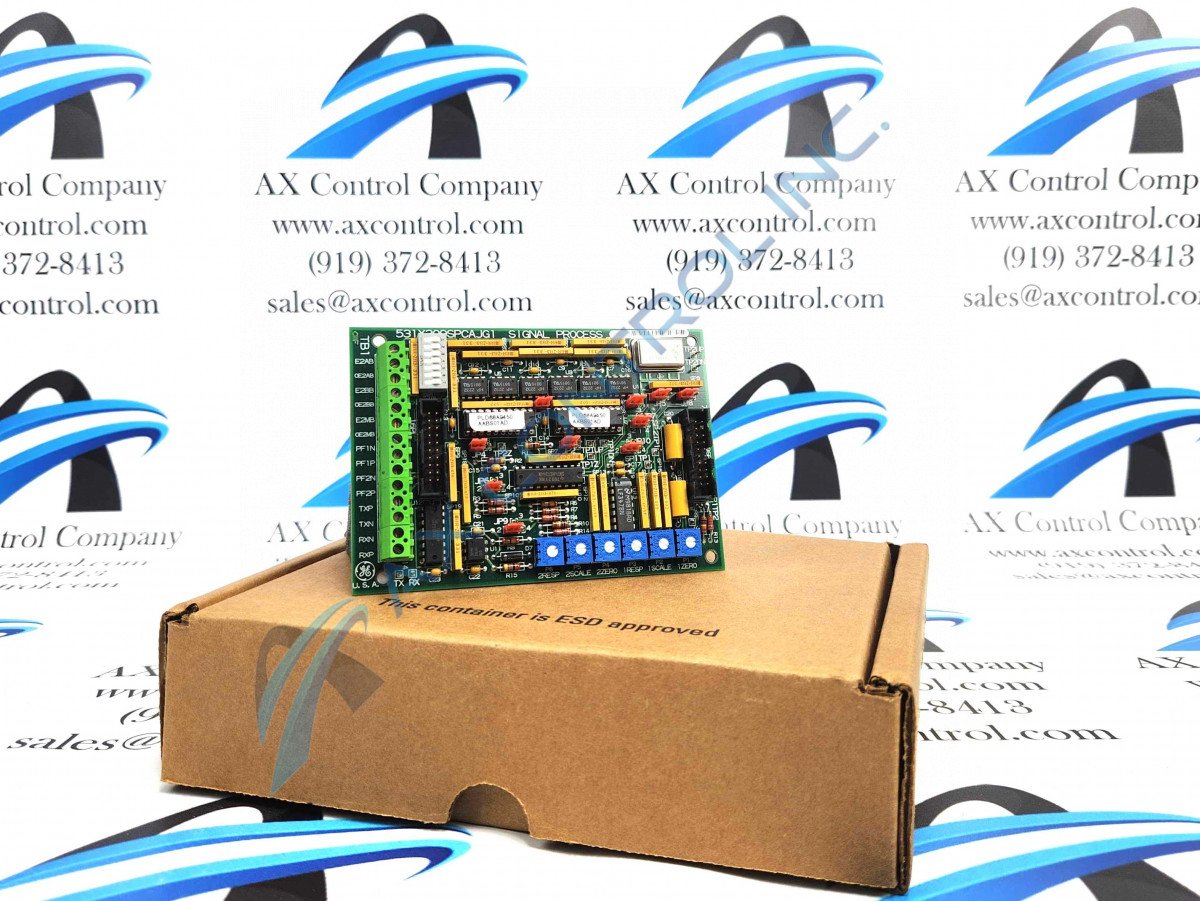

The 531X309SPCAJG1 is a Digital Signal Process Card manufactured by GE

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 531X309SPCAJG1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X309SPCAJG1
  • SKU: 531X309SPCAJG1GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

531X309SPCAJG1 Technical Specifications

Part / Model Number 531X309SPCAJG1
Product Type Digital Signal Process Board
Used With SDCC Drive Control Card
Manufacturer (OEM) GE Industrial Control Systems
Product Family DC2000 Digital Adjustable Speed Drive
Series Manual GEH-6005

Product Description

The General Electric 531X309SPCAJG1 is a signal processor card from the 531X series. Boards from this family are replacement boards, allowing them to be installed in a range of GE brand drives. Board functions for this signal processor card include local area network (LAN) control board and drive control board I/O processing.

531X309SPCAJG1 provides drives with a number of vital I/O processing functions. An interfacing medium between the processor card and externally connected encoders and tachometers is provided by the device. All interfacing communications provide speed feedbacks that are relayed to the drive’s control board. It also converts the three current reference signals and the voltage level signal into voltage reference signals. These signals are then sent to the drive’s control board for command execution. RS-422 serial signals can also be processed with this board. After processing, those signals are then sent to the motor control processor found on the drive. Included on the card are a number of configurable switches, jumpers, and potentiometers. These allow for users to be able to freely configure settings like signal filtering, and gains.

Be sure to meet all installation parameters provided by the card’s manufacturer. Following these provided instructions will reduce the risk of device accidents or damages. For device and user safety, only allow qualified personnel who are trained to handle boards to install this 531X309SPCAJG1 signal processing card. A complete wiring and installation guide for this card can be found in the device manual and datasheet. General Electric, the card’s manufacturer, was the original provider of technical support.

Please contact a member of our friendly and knowledgeable sales team at AX Control for all of your automation needs. A member of our staff is ready to provide prices and availabilities on the 531X309SPCAJG1 board, as well as any other part or repair.

Reviews For 531X309SPCAJG1

Internal Review
(5.0)

The 531X309SPCAJG1 is a Signal Process Card used in DC2000 Digital Adjustable Speed Drives and is a critical board in the system. While it mounts on the SDCC Drive Control Card, which is a high failure rate PCB, the 531X309SPCAJG1 has a very low failure rate and can often be moved across effectively when replacing the SDCC. The 531X309SPCAJG1 is a 5 star designed product by GE. - AX Control Lead Technician
