F31X111PSHAJG1

About the F31X111PSHAJG1

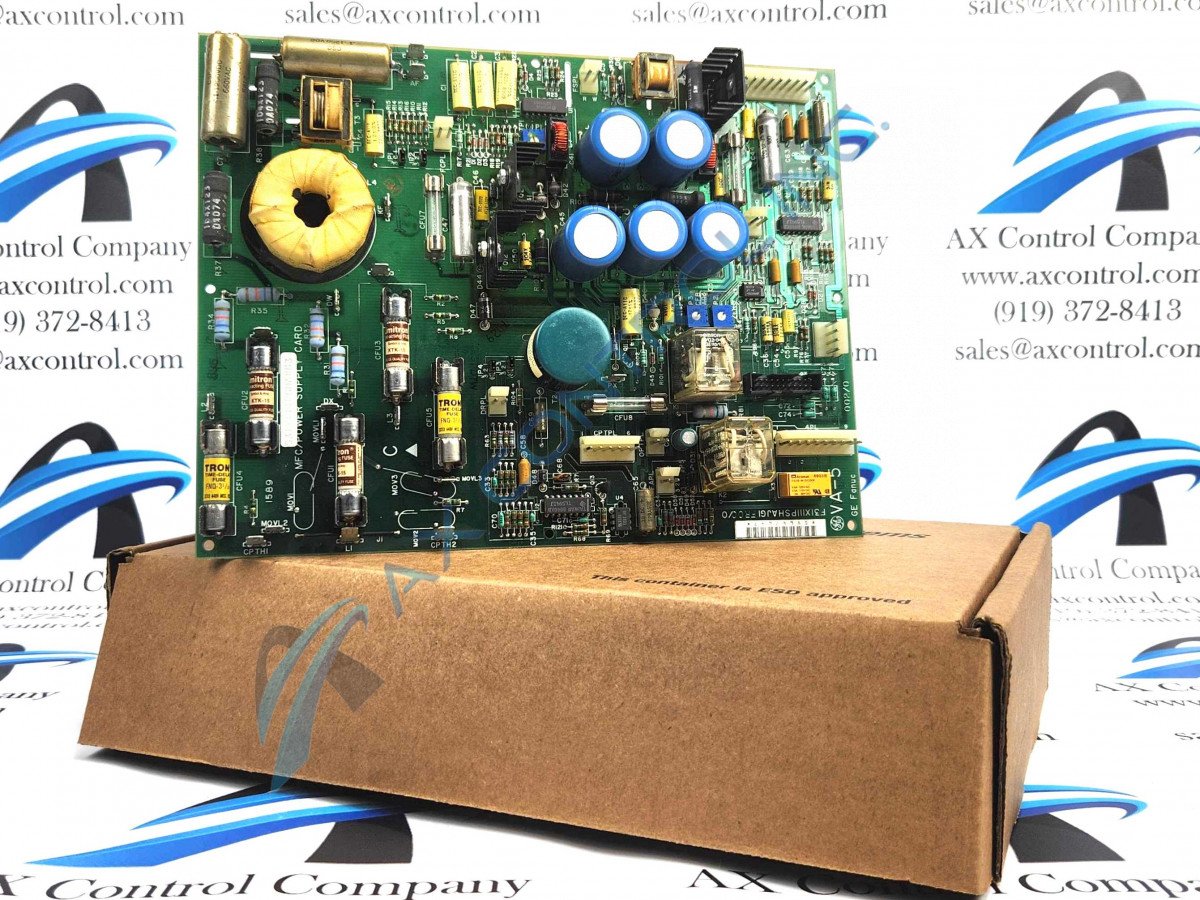

The F31X111PSHAJG1 is a printed circuit board fabricated by General Electric as a component for several general purpose drive systems.  This includes the DC-300 drive and other compatible drives. The F31X111PSHAJG1 belongs to the 531x series of replacement boards and has an alternate board number of 531X111PSHAKG1.

The  F31X111PSHAJG1 is an MFC Power Supply Card.  While there are several versions of this board within the 531X series, your series manual or our team will help you determine which is best for your system.   The F31X111PSHAJG1 is etched with information like ‘GE Fanuc,’ the manufacturer logo, and codes VA-5, 003/0, and FR00/0. Each corner is drilled and the board has several slots cut into its surface.

The  F31X111PSHAJG1 has four metal oxide varistors.  Three of these are placed in the upper right quadrant near five of the board’s fuses.  The board has an additional three fuses located elsewhere on the board surface. This board has three inductor coils, three potentiometers,  three relays, and three transformers. The board makes use of wire wound resistors, high-voltage capacitors, as well as polyester vinyl and ceramic capacitors and resistors made from metal film and carbon composite materials.

Other components used on the  F31X111PSHAJG1 include heat sinks, stab-on connectors, diodes, integrated circuits, header connectors, vertical-pin cable connectors, and transistors.  Components are typically marked with both a reference designator and with a manufacturer’s part number for easy identification. More information like installation procedures and handling and safety recommendations can be found through GE publications like data sheets and user guides or manuals that reference this board number.
