F31X121PCRAEG1

About the F31X121PCRAEG1

F31X121PCRAEG1--Power Connect Board

The F31X121PCRAEG1 is a PCB made by the General Electric company as a component for their general purpose drive systems.  This includes the DC-300 drive. The F31X121PCRAEG1 board has an alternate id number of 531X121PCRAEG1. Compatibility between your system and this series of boards can be determined through your user guide or GE data sheets.

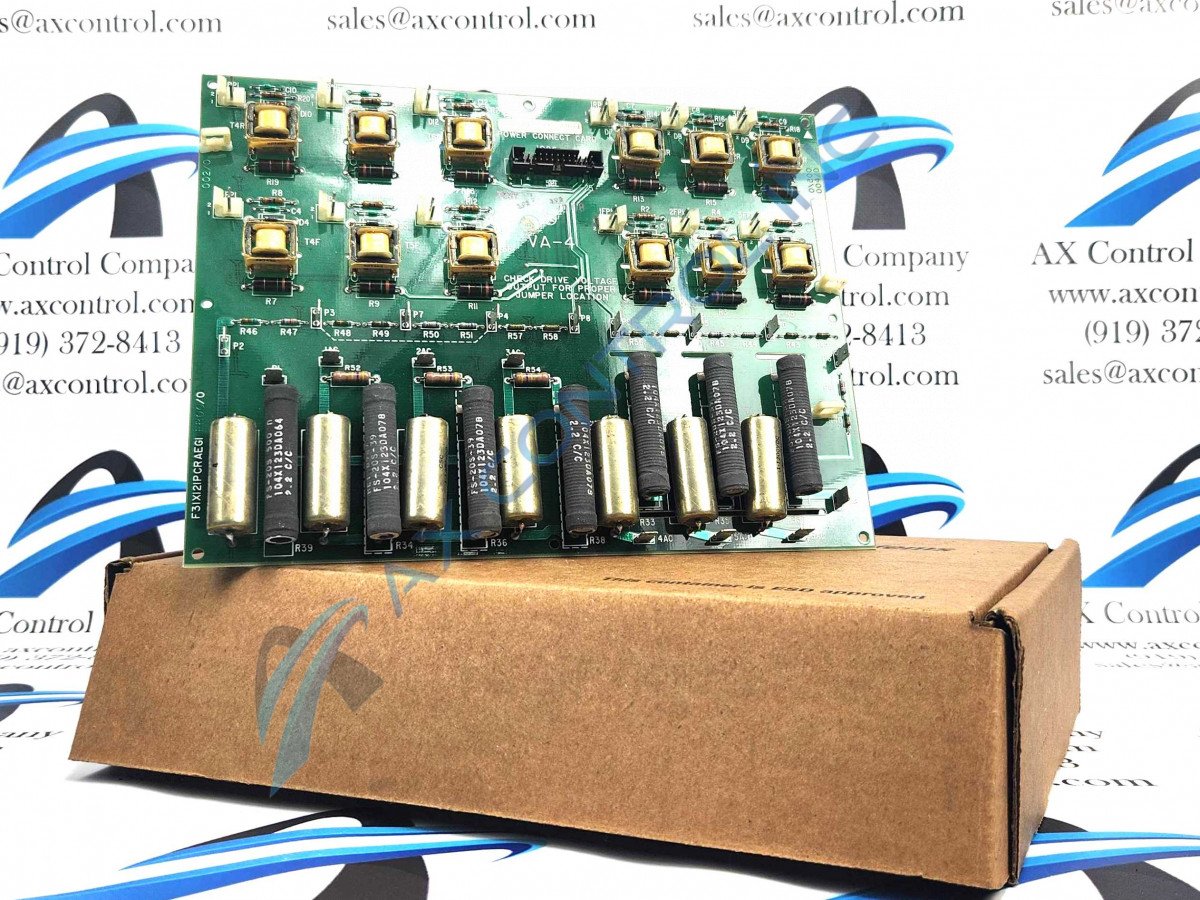

The F31X121PCRAEG1 is a Power Connect Card.  There are multiple versions of this kind of PCB within the 531X board series.    The board is factory drilled in several locations on the board in the corners and along the edges.  It has multiple slots cut within the body of the board; these are typically traversed by components. Markings on the board surface include VA-4, 002/0, 004/0, 4186, 005/0, and FR00/0. A notation is made in the center of the board to “Check Drive Voltage Output For Proper Jumper Location.”

The F31X121PCRAEG1 has twelve transformers placed in two parallel lines of six. The board has twelve 2-pin header connectors, also placed in two parallel lines of six.  It has seventeen stab-on connectors and a single vertical pin male cable connector. This is located near the center top of the board.

Other components on the surface of the F31X121PCRAEG1 include ceramic capacitors and Sprague 1000 DC capacitors.  It has seven wire-wound resistors, resistors made of carbon composite material, and multiple metal film resistors. More information on board operation, board installation, and handling instructions can be accessed through publications from General Electric like manuals or data sheets that include this board number.
