About the F31X134EPRBDG1

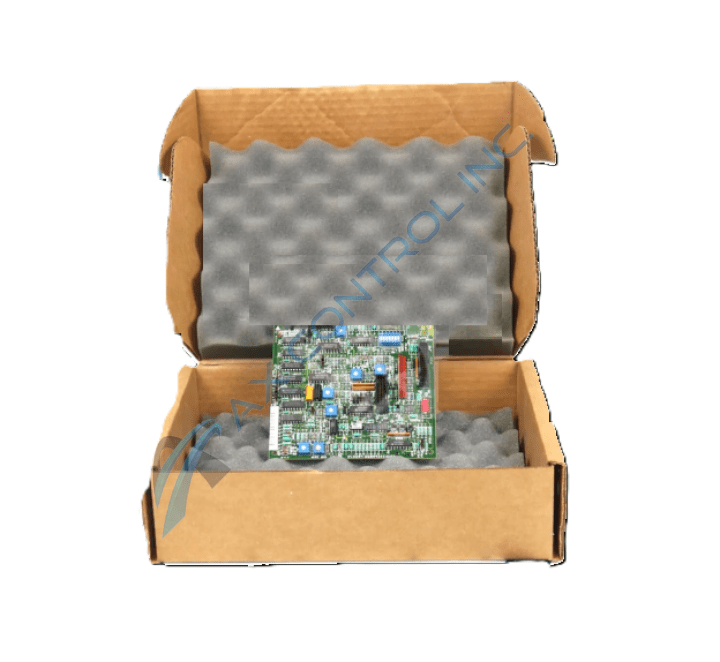

The F31X134EPRBDG1 is a board manufactured by General Electric as a component for several of its general purpose drive systems. This PCB is designed to be used within multiple systems instead of only working within a particular system. This includes the DC-300 drive and other similar drives. While many of these drives are now obsolete, they were originally manufactured by General Electric as powerful, flexible systems capable of taking on a wide variety of industrial tasks.
The F31X134EPRBDG1 functions as an Encoder Process Interface board. It has two board numbers; this includes the F31X number and a secondary number of 531X134EPRBDG1. Codes on the board include 002/0 and FR00/0.
The F31X134EPRBDG1 has one switch component. This component is labeled “Tach Range.” It has seven toggle switches that can be set to “off” or to a default “open” setting. Each of these toggles is individually numbered. The board also has a three-position terminal strip.
The F31X134EPRBDG1 is populated by over one hundred resistors and capacitors. Most resistors are made from a metal film material. Capacitors may be made from ceramic material, electrolytic material, or other materials. The board has over twenty diodes. It also uses four resistor network arrays and seven potentiometers.
The F31X134EPRBDG1 has half a dozen single terminal pins. These are labeled things like RPU, SFB, +5V, and DCOM. The board has over twenty jumper switches, as well as sixteen integrated circuits. More information on the board, including installation procedures, may be accessed through publications from the original manufacturer, such as user guides or series manuals. Please follow all safety recommendations.
