F31X139APMAGG3

About the F31X139APMAGG3

F31X139APMAGG3--GE Application Board

The F31X139APMAGG3 is a PCB board component fabricated by General Electric.  It was created as part of the DC-300 drive and other comparable drives. These are flexible, powerful industrial drives capable of many tasks.   It is part of the 531x board series, and it has an alternate 531x board number. Your system manual will help you establish compatibility with this board series.

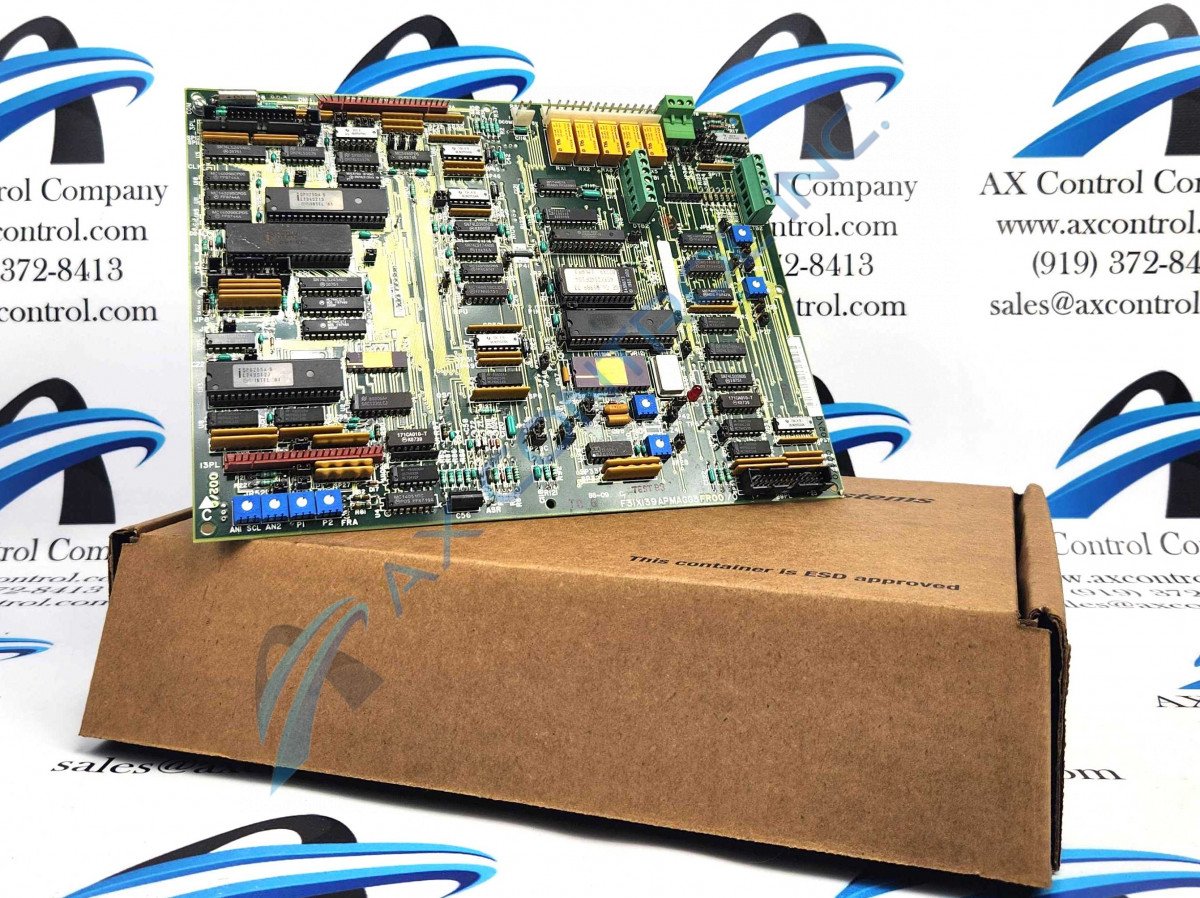

The F31X139APMAGG3 is a large component-rich board.  It has five relays that are in a single line near the top board edge.  There are eight potentiometers, including four potentiometers lined together near the bottom edge.  The board has over thirty-five resistor network arrays. It also has several lines of metal film resistors. Capacitors are made from ceramic, polyester vinyl, and other materials.

The F31X139APMAGG3 connects to other boards using its ten connectors. This includes three male vertical pin cable connectors and four male vertical pin header connectors.   There are also three terminal strips located in the upper right corner. These range from six positions to three positions.

Other components located on the F31X139APMAGG3 include a single red LED indicator, over forty jumper switches, several transistors, diodes, and TP test points.   The board is marked with FR00/0 and VA-4.

Publications originally provided by General Electric, such as user guides, manuals, or data sheets, are excellent resources for more information on the F31X139APMAGG3.  These publications will provide information on the board operation, its installation, and maintenance schedules. The F31X139APMAGG3 data sheet will also provide information on proper board wiring procedures.  Please follow all safety procedures.

Our sales team at AX Control is available to answer any questions you may have about our products or services.   Our team will quickly provide a quote on any product, on shipping, or on a needed repair upon request.
