About the F31X199SPTACG1
The F31X199SPTACG1 is one of many replacement boards designed by GE for the company’s general-purpose drive systems. This includes drives like the DC-300 that is most often used for industrial applications. The DC-300 drive is an adjustable speed drive.

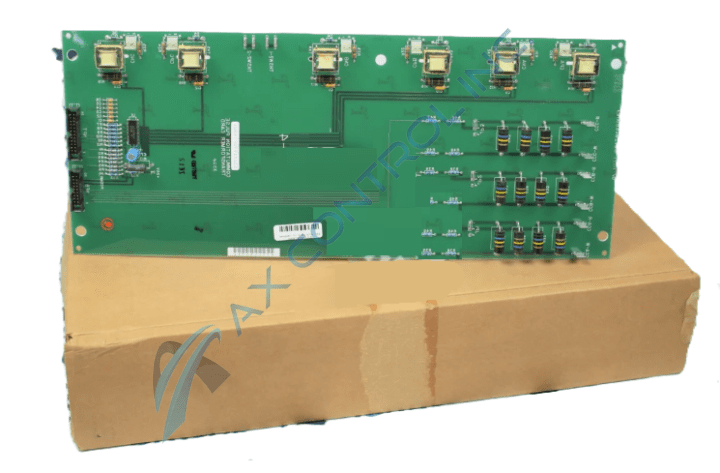

The F31X199SPTACG1 functions within General Electric drives as a Commutation Pulse Transformer card. This type of card is designed to lower the voltage discharge of thyristors. The board is designed with only a few components on its surface including six transformers that are mated with two-pin header connectors, a capacitor, and resistors. The board also includes stab-on connectors, jumper switches, and two vertical pin cable connectors to allow the board to communicate with other boards or components.
The F31X199SPTACG1 is marked with the GE logo. It carries its F31x board id number and also has a secondary 531X ID number marked on its surface. Other markings include reference designations that are located near each component, and several identifying codes. These may change from individual product to product but may help you identify if a board is correct for your system. The board also includes the GE logo to ensure its original manufacturer.
AX Control maintains a large on-hand inventory of GE parts, along with stock from other industrial parts manufacturers, so we can better and more quickly serve your needs. If there is anything you need that’s not currently in our online database, please let us know; we may be able to source the part for you. Most in-stock parts ship the day we receive your purchase order.
