F31X210DMCACG1

About the F31X210DMCACG1

The F31X210DMCACG1 is a PCB board component produced by General Electric for use within its general purpose drive systems.  Among these is its DC-300 drive. Most of these drive systems are designed for industrial use. They are powerful, flexible drives designed for use in a variety of applications.   This is part of the 531x series. Your user guide or system manual will determine compatibility.

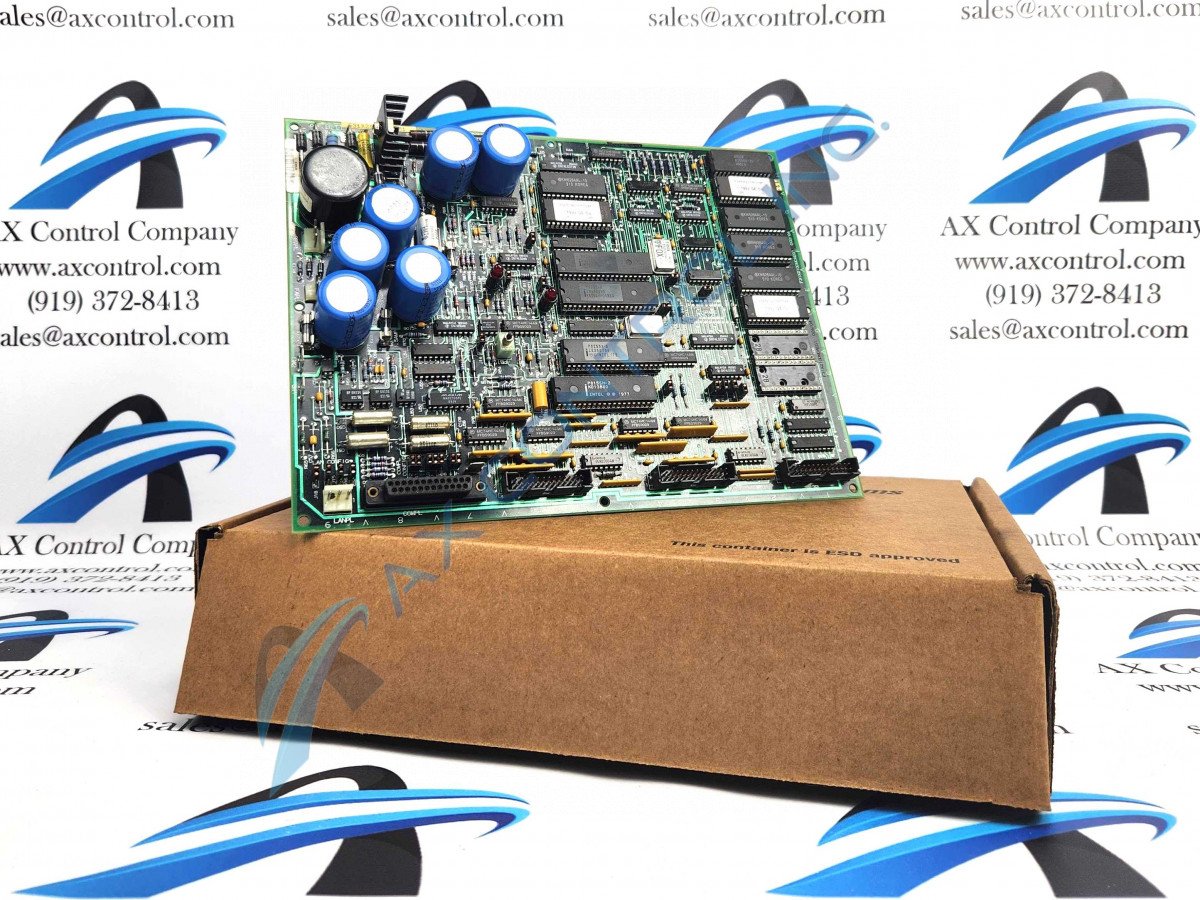

The F31X210DMCACG1 is a Main Control Drive board. It is a rectangular board that is factory drilled at all four corners.  The board is lettered on one edge and numbered on one other. This allows for more simple alignment.  The board is heavily populated by components, listed below. The board is etched with codes including the board’s alternate board number of 531X210DMCAEM1, along with 002/03 and 006/03.

The F31X210DMCACG1 has over 25 jumper switches.  It has a single switch component that is placed near the center of the board.   There are two LED components, both red, placed individually toward the center of the board.   There are three stab-on connectors, four vertical pin cable connectors, and one vertical pin connector.  The board has a single heat sink.

The F31X210DMCACG1 has two fuses.   There are sixteen resistor network arrays along with resistors made of carbon composite and of metal film material.  Capacitors are made of electrolytic, ceramic, and polyester vinyl materials. There is a single transformer component.  The board has over forty-five integrated circuits of various design. Please refer to user guides or manuals that reference this part number for more information.
