IS200EPDMG1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.80 (5)
  • Click a star to rate this product

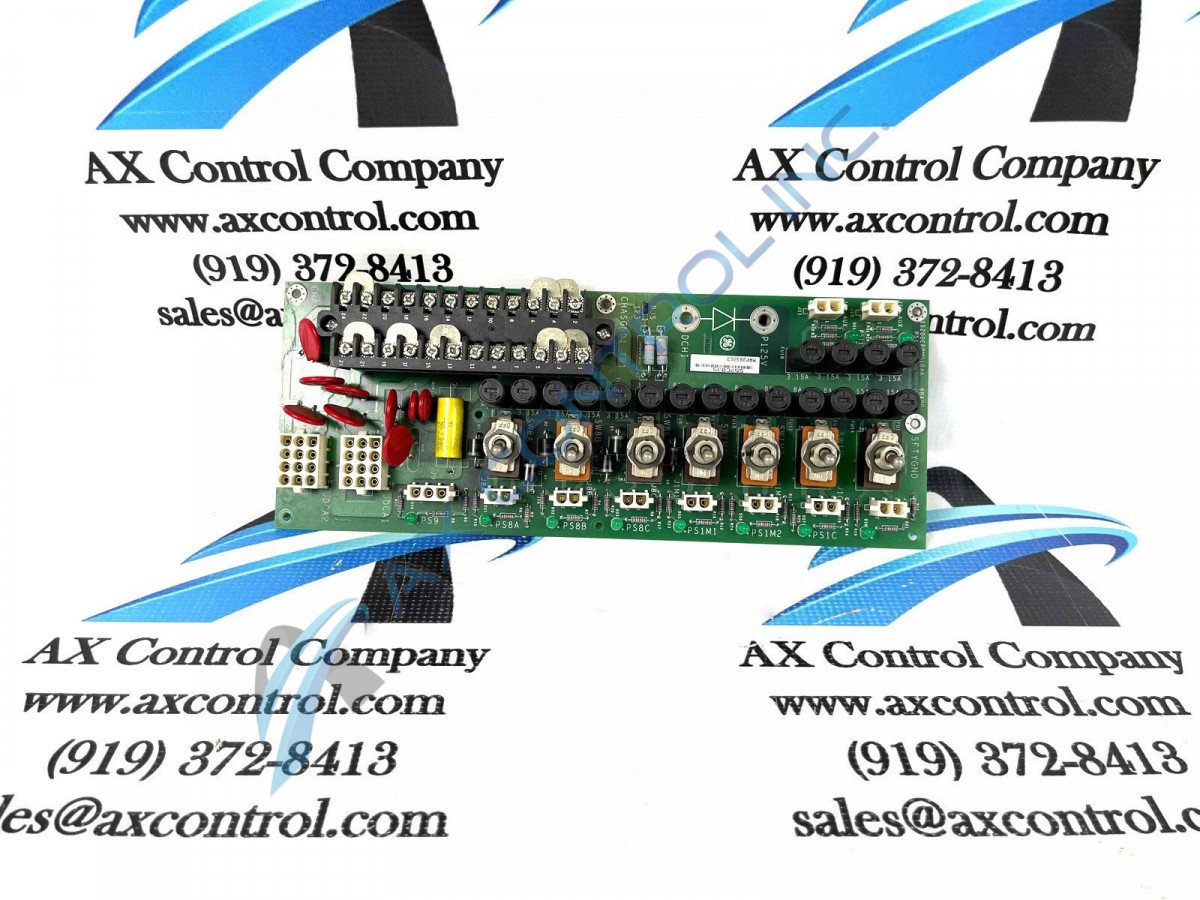

The IS200EPDMG1B Exciter Power Distribution Module is produced by GE. This module has an LED indicator that will be green to display power supply availability. There are also seven power toggles on the module, the toggles are used with the power LEDs.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200EPDMG1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EPDMG1B
  • SKU: IS200EPDMG1BGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 Excitation Control

IS200EPDMG1B Technical Specifications

Model Number IS200EPDMG1B
Board Description Power Distribution Module
Series EX2100
Location of Wire Outputs EPBP for Distribution
Number of DACA Module Connections Two
Number of LEDs Ten
Quantity of Plug Connectors 12
Quantity of Power Toggle Switches Seven
VAC Power Supply 115 VAC

About the IS200EPDMG1B

The IS200EPDMG1B module is another Exciter Power Distribution Module. This is the second version of the IS200EPDM module, this module is just one of the power supply boards in the EX2100 series. As many of the other power supply modules will be connected to this board the toggle switches on the board can cut power consumption from the other power supply boards. When you have cut power consumption to the other board the LEDs that line up with the other board will turn off, to indicate that the power has been switched off.

The IS200EPDMG1B board provides a power supply for the other boards such as the protection, control, and I/O terminal boards. The standard power supply for the EPDM board will be a VDC of 125 or a VAC of 115. On the board, there are twelve plug connectors; two of the connectors are twelve-position, nine are two-position plugs, and one is a three-position plug, all of the connectors are female connectors.

The IS200EPDMG1B also has nine metallic oxide varistors which are all grouped together in a quadrant at the bottom of the board. The outputs that come from the EPDM board can be supplied to EGPA, EPSM, and EXTB boards.

Frequently Asked Questions about IS200EPDMG1B

There are fused outputs on the IS200EPDMG1B board. What do these fused outputs power?

The fused outputs from the IS200EPDMG1B board feed power to the EGPA/EHPA boards, EXHS, and EPBP models.

This model is a B revision are there special features of B revisions?

The only special function is that revision EPDMB or later boards are required to accommodate 220 VAC control power sources.

Where does the IS200EPDMG1B board mount?

The IS200EPDMG1B model mounts on the left side of the exciter power supply rack.

What boards do the IS200EPDMG1B model provide power for?

The IS200EPDMG1B model provides power for the control, I/O terminal, and protection boards. This model is used specifically in redundant control applications.

Reviews For IS200EPDMG1B

Internal Review
(5.0)

The IS200EPDMG1B model provides power for several other boards in the EX2100 series. With the seven toggle switches, it controls turning the other boards on and off, which are indicated by the LEDs. - AX Control Technician
