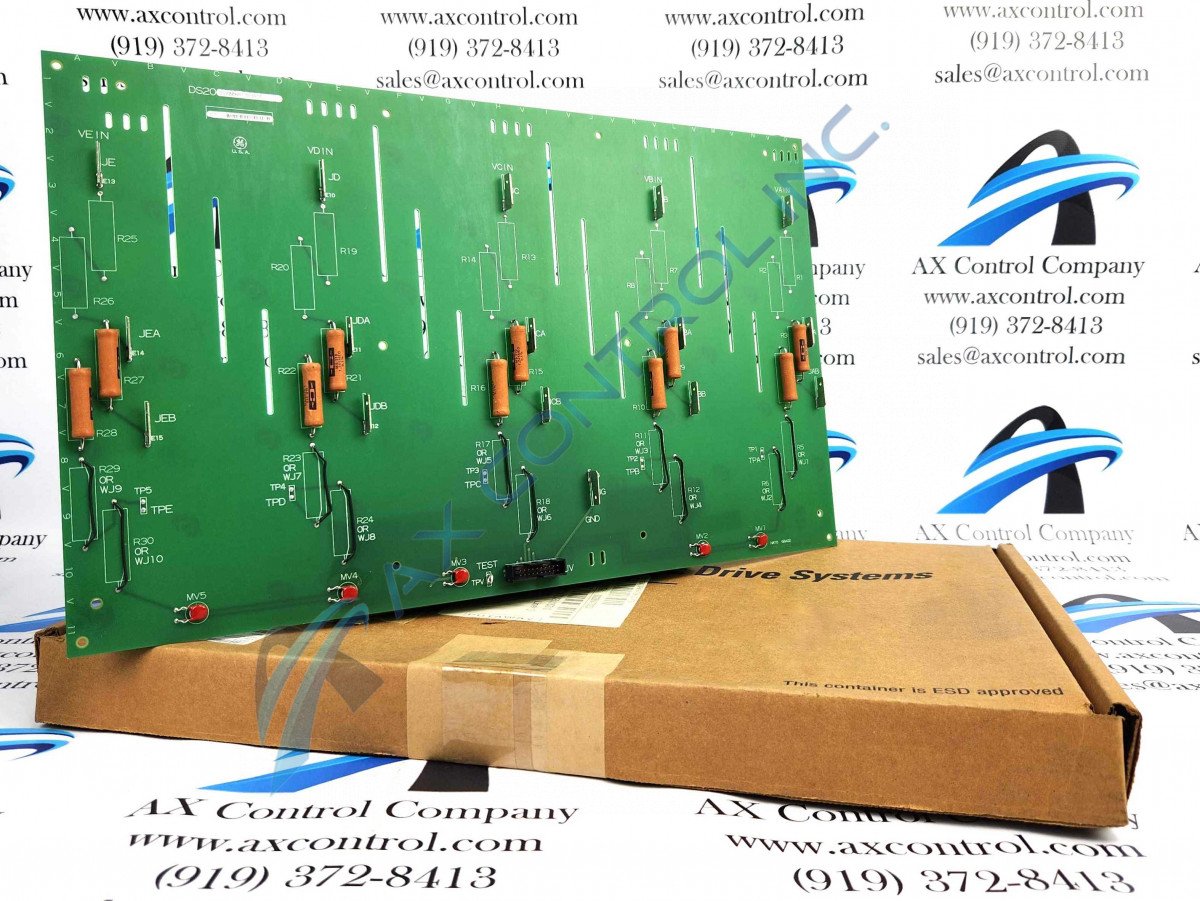

The General Electric Voltage Feedback Sensing Board DS200NATOG3A is designed to meet the UL, EC, and CSA Agency Standards for transients controlled and known. The model has a number of stab connectors and wire jumper combinations.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a DS200NATOG3A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: DS200NATOG3A
SKU: DS200NATOG3AGBTC

Manufacturer: GE Boards & Turbine Control
Series: LS2100 Static Starter Control

Description
Repairs
Warranty
Manuals

DS200NATOG3A Technical Specifications

Agency Approvals	UL, EC, and CSA
Alphanumeric Catalog Number	DS200NATOG3A
Board Type	Voltage Feedback Scaling Board
Manufacturer	GE Industrial Systems, General Electric Company US
Part-Specific Manual	GEI-100225
Series	LS2100
Series Manual	GEH-6373

Frequently Asked Questions about DS200NATOG3A

Can the resistor strings be configured?

Yes. The resistor strings can be configured to attenuate five different volt inputs, those being 1200, 2200, 3300, 4200, and 6900 volts.

Can the test points be used in other settings except for the factory?

No. The test points should not be used in another setting except for the factory, using the test points in another setting can cause dangerous voltages.

If I miss a few letters or numbers when reordering this board will it be okay?

No, each letter and number within the alphanumeric code helps indicate the specific board, if you get a different board then what was previously being used some errors may occur.

What manuals should I use when operating and installing the DS200NATOG3A board?

The best manual to use is the GEI-100225 Voltage Feedback Scaling Board Users Guide, the aforementioned manual is a part-specific manual. The GEH-6373 LCI User Guide is also an excellent tool to use.

About the DS200NATOG3A

General Electric Voltage Feedback Sensing Board model DS200NATOG3A is used for attenuating DC and AC voltages through an SCR bridge, this allows for the bridge voltage feedback to be precisely derived. To work correctly this model must be used with a gate distribution status board and a VME backplane board. There are multiple stab connectors on the board, there are three stab connectors in each of the five resistor strings to allow power connection to a number of different resistors to accommodate a variety of voltages.

The DS200NATOG3A model is a base-level board and is not backward compatible, meaning that this model is essentially an entirely new catalog number. The model is designed as an attenuator board to be used in conjunction with different bridge interface boards. The main feature of this board is to process voltage feedback of the NATO board.

Model number DS200NATOG3A has limited market availability due to its obsolescence but AX Control offers refurbished boards. If your board acquires damage our team of specialists will do everything possible to help not only refurbish your model but can help find another model for you if needed. Please feel free to contact us with any questions by email or phone.
