About the IC3600EPSV1

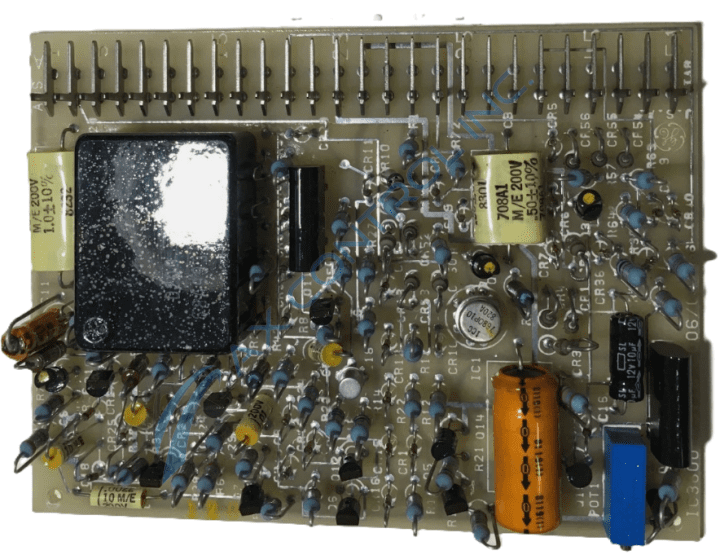

The IC3600EPSV1 is manufactured by General Electric for their Mark I and Mark II series. The IC3600EPSV1 has one large black box in the corner. The IC3600EPSV1 has five small yellow polypropylene capacitors, one small orange, one small black and one large orange PCB Mount Electrolytic capacitors. Capacitors hold energy in an electric field they have created for the circuit board to use. The IC3600EPSV1 has ten small black transistors, one small silver circular transistors, and one medium silver circular transistor. The transistors have three connection points on the circuit board. The IC3600EPSV1 has fifteen tiny orange and black diodes and ten circular green diodes. These diodes only allow energy to flow one way through them which allows them to control the energy flow across the circuit board. The IC3600EPSV1 has two large black resistors with writing and about forty light blue resistors with bands. The resistors with bands have a color code to calculate the amount of energy the resistor can restrict. The large black resistors have the energy restriction printed on the side of it. The IC3600EPSV1 has twenty-six long metal pins for the IC3600EPSV1 to connect with other circuit boards. The pins go vertically and horizontally. The IC3600EPSV1 has every component labeled with letter and numbers, with the part number printed along the edge, General Electric’s emblem placed on the circuit board.
AX Control would love to be your first choice for all your automation needs. Please call today for a quote.
**General Electric has provided the initial technical support. The staff at AX Control recommends referring to the original manufacturer's manual for safety procedures and instruction on how to install the part.
