DS3800DPSS1B1B

About the DS3800DPSS1B1B

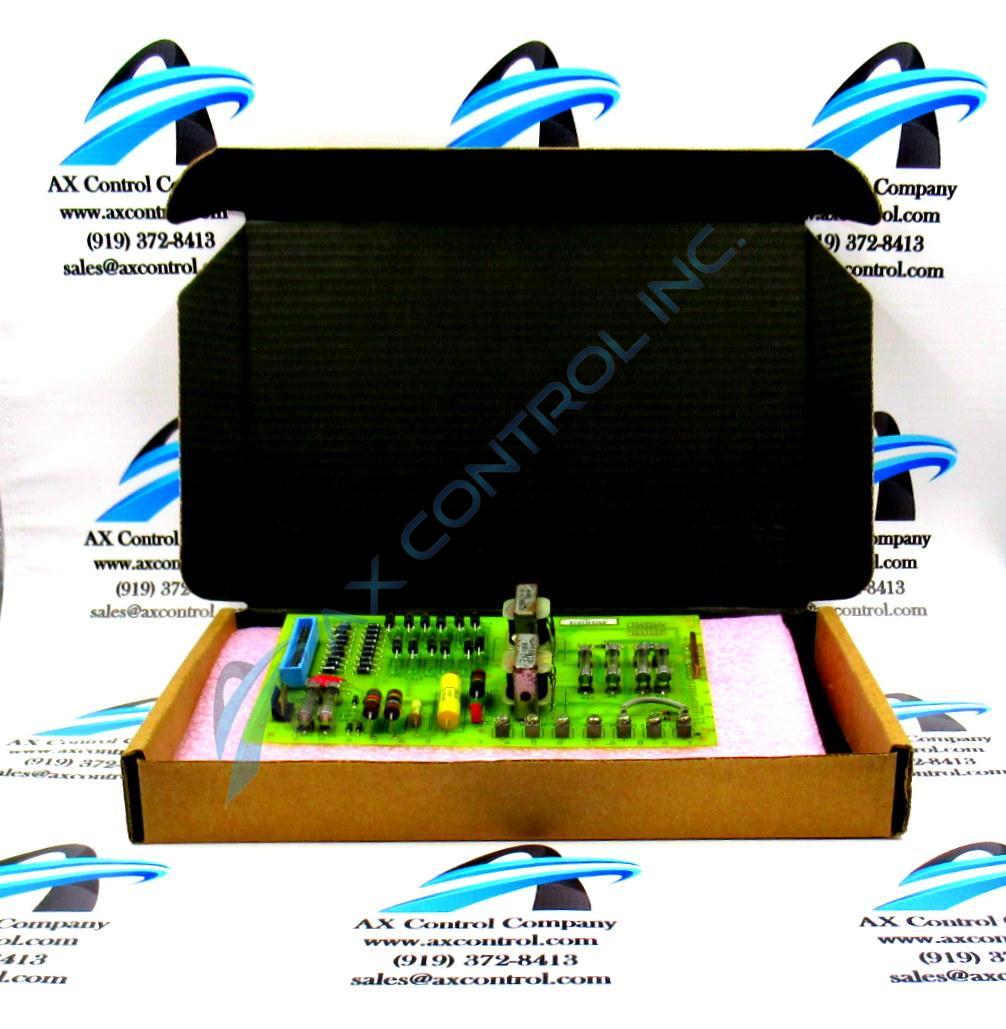

The GE Turbine Control Board DS3800DPSS1B1B features 6 fuses and 1 34-pin connector. The GE Turbine Control Board DS3800DPSS1B1B also is populated with 7 terminals with retention screws, multiple capacitors, and 1 jumper.

The single jumper on the board has an ID. The ID is J1 and it enables the installer to tailor the processing performed by the GE Turbine Control Board DS3800DPSS1B1B. To learn how the jumper can configure the board, refer to the printed information supplied with the board when you received it from the factory. You received in the carton information about the warranty, about contacting customer support, other flyers and updates, and a booklet about installation of the board. Included in the booklet is a description of the jumper (J1). The jumper has 2 supported positions and each position causes the board to be configured differently. The board arrives from the factory with the jumper in the default position. This is defined by the factory and is typically the most common configuration setting. The jumper covers 2 of the 3 pins that make up the jumper. The jumper is fitted over pins 1 and 2 or over pins 2 and 3. Contact is made between the 2 pins and the board processes the resulting signal to configure the board.

Another way to tailor the board is to add components to the terminals. This changes the processing of the board. However, due to the technical knowledge required to gain the processing results, only qualified individuals can add or remove components from the terminals.
