DS3800HLNE1B1B

About the DS3800HLNE1B1B

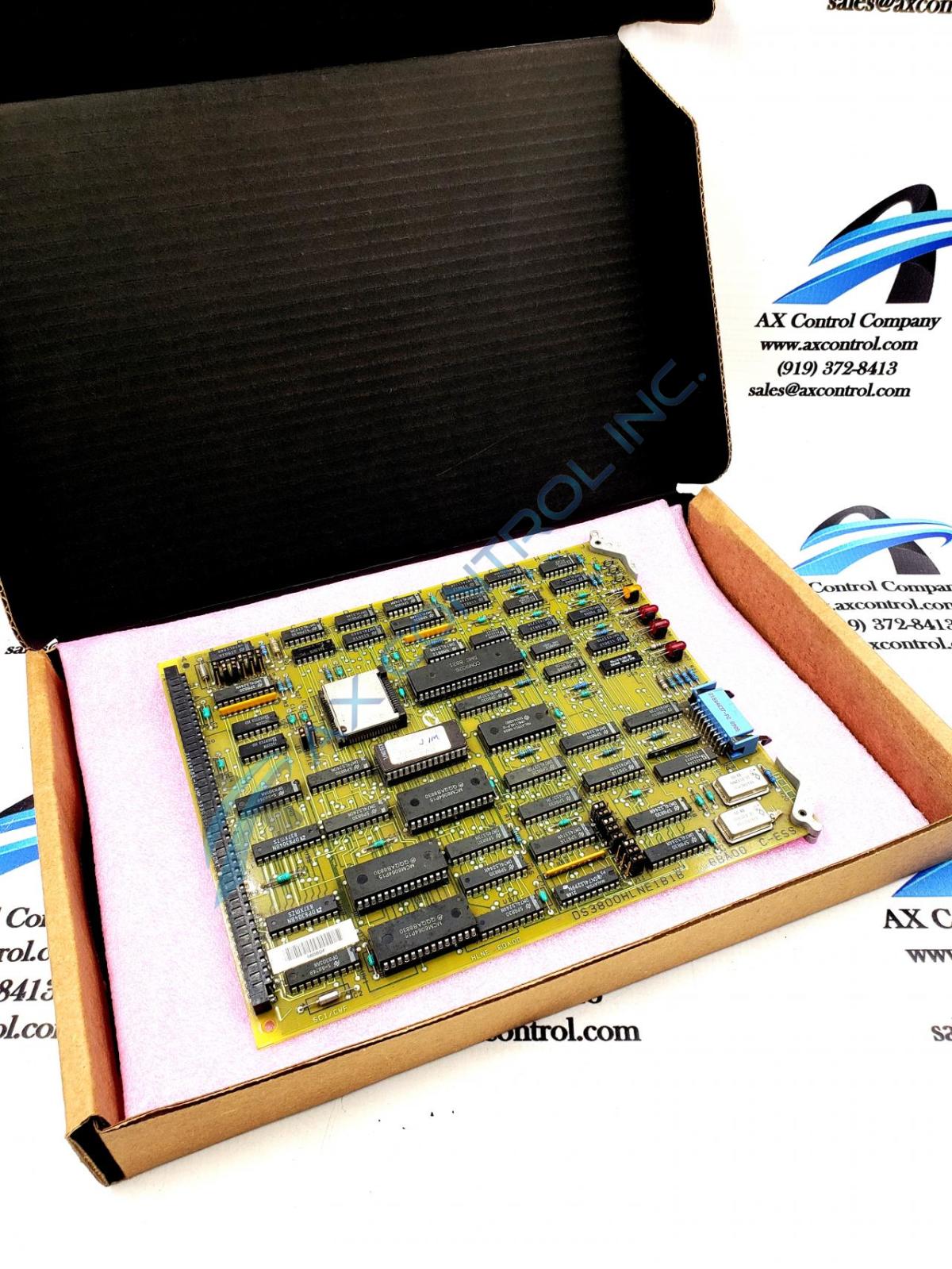

The GE Network Controller Board DS3800HLNE1B1B features a modular connector on 1 end and retention levers on the other end. The board is populated with a microprocessor. The board is populated with multiple transistor-transistor logic devices. The GE Network Controller Board DS3800HLNE1B1B is also populated with 3 red indicator LEDs and 1 amber indicator LED. The board also has multiple sockets for electrically erasable programmable read-only memory (EEPROM) modules. The board is also populated with 16 jumpers and 1 34-pin connector.

The GE Network Controller Board DS3800HLNE1B1B is populated with 4 EEPROM modules. The modules can be erased and overwritten with new code. This might be useful if the code contains an error that causes processing problems. After the board is manufactured, code development continues and if errors are found, updated code is made available. This can include fixes and updates to include new functions. If you find the board is experiencing errors that might be caused by the firmware or programming code, 1 solution is to update the code.

The firmware and programming code is used by the microprocessor for processing instructions. When you decide to replace the GE Network Controller Board DS3800HLNE1B1B, the best practice is to move the modules to the new replacement board. In this way, the processing performed by the old board will continue with the replacement board. However, make sure you place the modules in the same socket in the replacement board. The sockets have IDs printed in the board. When you move the modules, make sure you install the module in the socket with the same ID.
