DS3800HPIB1E1C

About the DS3800HPIB1E1C

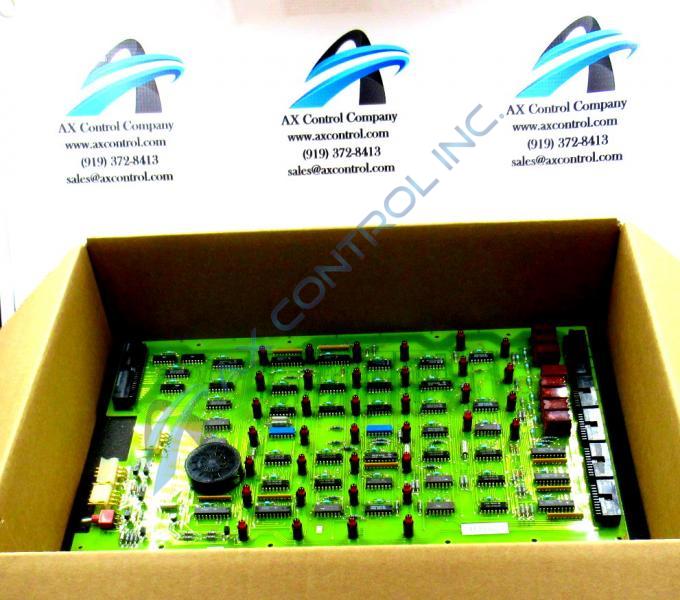

The DS3800HPIB1E1C a turbine control circuit board by General Electric (GE). The DS3800HPIB1E1C is a part of the Speedtronic Mark IV series. The DS3800HPIB1E1C is an intricate board. Each delicate piece is labeled accordingly. The board also has the GE emblem and the part number. The sides of the DS3800HPIB1E1C also have numbers and letters zero through eight and A through J. The DS3800HPIB1E1C has eight brick like towers and nine separate ports. Each connection port is a male port. The DS3800HPIB1E1C features a lot of small components. There are over fifty resistors which transport and stores energy. Each resistor has a colored marking to show what its energy capacity is. There is a total of sixty-eight diodes of varying colors. Seventeen are clear with a light orange hue the rest are blue or silver. There are also eight capacitors that are gold and are straight and skinny. The DS3800HPIB1E1C also has a half dozen black half circles. There is a small switch on the board as well. There are thirty-six black towers each with its own LED on top. The LEDs light up red as energy flows through them. The DS3800HPIB1E1C programs are stored on two different components called EEPROM and EPROM. The EEPROM and EPROM look exactly alike and have similar functions, however, the EPROMs programming can be changed by a small circle in the top where the EEPROMs cannot be altered. There are thirty-four EPROM and twelve EEPROM.

Give AX Control’s professional staff a call for a quote.
