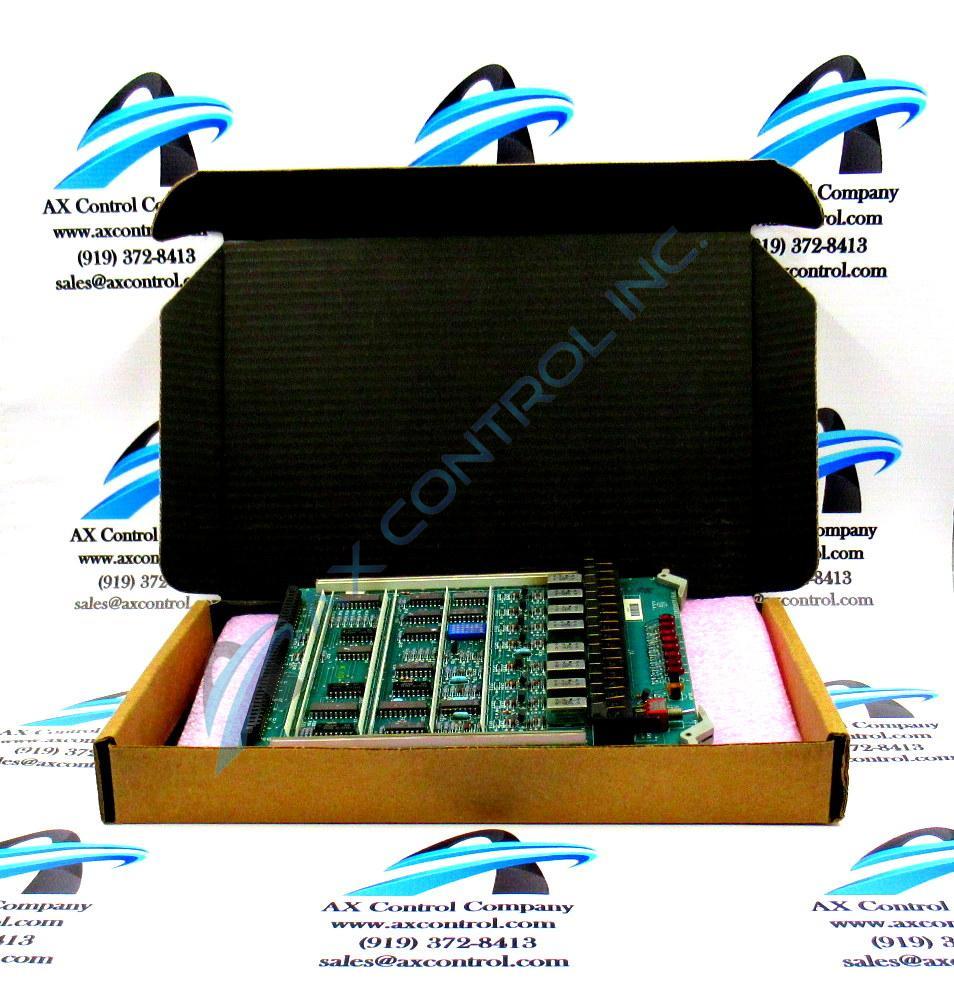

About the DS3800HRRB1D1D
The DS3800HRRB1D1D is was created for the Turbine line known as the Mark IV Speedtronic Turbine Control System Series line produced by General Electric. The Mark IV Turbine Control System Series that was developed by General Electric has to be delegated as a now-obsolete legacy General Electric product series, given the eventual manufacturing discontinuation it would encounter in one of the many years past its initial release due to a designer-identified functional full-series obsolescence. With this obsolete nature in mind, the Mark IV Turbine Control System Series is still able to collect a concerted level of automated industrial market demand, given the fact that the Mark IV Turbine Control System Series exists as one of General Electric's final-developed Mark product series to make use of the patented Speedtronic control system technology first seen with the rollout of the Mark I Series in the mid to later 1960s. The Mark IV Series, based on its full extended series name, is something of a self-explanatory GE mark product series as it has specific functional applications in the management/control systems of GE-compatible gas and steam turbines.
Hardware Tips and Specifications
The DS3800HRRB1D1D has are around fifty-four colored diodes, as well as nine transistors. Transistors magnify or augment the electrical flow or the electronic signal. Transistors are made of a semi-conductive substance as well. Transistors can be recognized by the three legs they have. The DS3800HRRB1D1D has roughly seventy resistors. Each resistor is made to handle a specific amount of energy at a time. The total amount of energy a resistor can handle can be figured out by the different circular bands on the outside of each resistor. The DS3800HRRB1D1D has seven delicate barriers through it. The DS3800HRRB1D1D has a mixture of sixteen EEPROM and EPROMS. The EPROMS and EEPROMs are referred to as integrated circuits. The EPROMs can be updated as desired. Whereas the EEPROMs are only programmed once. Call the well-informed staff at AX Control today. Any transistor, resistor, diode, capacitor, or integrated circuit on the base circuit board of this DS3800HRRB1D1D printed circuit board product offering. It is not known whether or not this DS3800HRRB1D1D device is the originally-produced product of its specific Mark IV Series functionality, given its possession of the atypical DS3800HRRB1D1D functional product number making no concrete mention of a revision history.
The DS3800HRRB1D1D has eight rectangles called crystal oscillators. The crystal oscillators' purpose is to create an extremely precise frequency from an electrical signal. The DS3800HRRB1D1D has four points to secure the DS3800HRRB1D1D to your current step up. There is one in each corner. The DS3800HRRB1D1D labels for all the pieces, each piece has an outline, to map out where each part fits. These markings are in white. As well as the part number (DS3800HRRB1D1D). There are two ports on the DS3800HRRB1D1D one female and one male. The DS3800HRRB1D1D has seventeen LEDs. The LEDs are red white and a single yellow. Given this DS3800HRRB1D1D printed circuit board product offering's initial Mark IV Turbine Control System Legacy product series attribution, it is not surrounded online by any great wealth of originally-printed instructional manual materials. With this being the case, alternative methods of hardware component identification such as the DS3800HRRB1D1D functional product number need to be identified. The DS3800HRRB1D1D functional product number codes for a series of critical DS3800HRRB1D1D Board hardware specifications through a series of consecutive functional naming components. For example, the DS3800HRRB1D1D functional product number begins with the dual-functional DS3800 series tag describing this DS3800HRRB1D1D PCB's domestic original manufacture location as well as its normal style of Mark IV Series assembly. Some of the other relevant hardware details revealed through use of this DS3800HRRB1D1D product's functional product number includes its HRRB functional product acronmym as well as its group one Mark IV Series product grouping.
