DS3800HSAA1P1J

About the DS3800HSAA1P1J

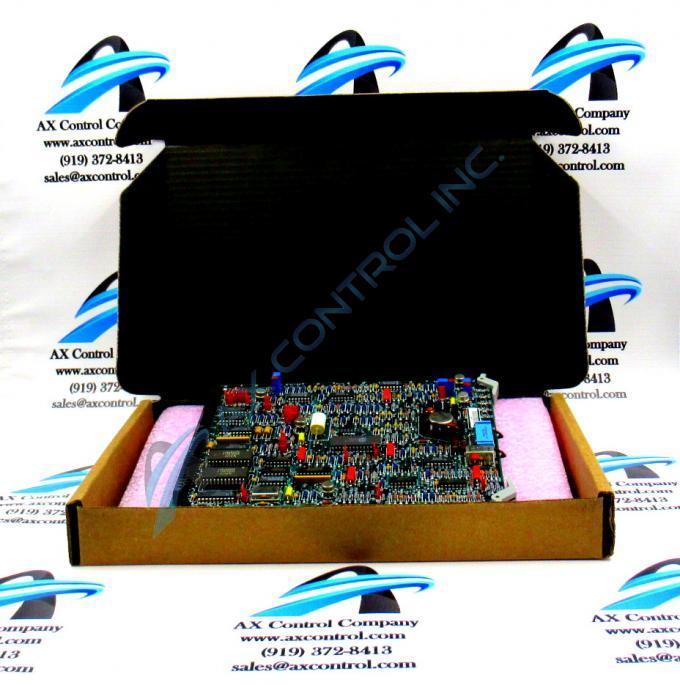

The GE Dom Plus Servo Amp Board DS3800HSAA1P1J features a modular connector on 1 end and retention levers on the other end. The board is populated with a heat sink. The analog/digital converter is a component embedded on the board. The GE Dom Plus Servo Amp Board DS3800HSAA1P1J is also populated with 1 34-pin connector and 1 socket for electrically erasable programmable read-only memory (EEPROM) modules. The board is also populated with 3 trimmer resistors.

The GE Dom Plus Servo Amp Board DS3800HSAA1P1J is populated with 1 34-pin connector. It is situated so that when the board is installed in the board rack, the operator can access the connector. The operator can plug in a ribbon cable without removing the board. However, the operator must first remove power from the drive. If you are not familiar with the installation of the drive, obtain information from the engineers who installed the drive about how the drive receives current. The drive receives current from several sources. Some of the current is dc current and other sources are ac. All current must be removed before you begin to handle components.

The ac current can be removed by pulling a circuit breaker. The dc current can be removed by disabling the converter. Because of the risk of electric shock from handling components, it is best practice to always know the location of the emergency shutoff devices. The best practice is to locate the shutoff devices near the drive and for the devices to be easy to use in an emergency.
