DS3800HSAA1R1K

About the DS3800HSAA1R1K

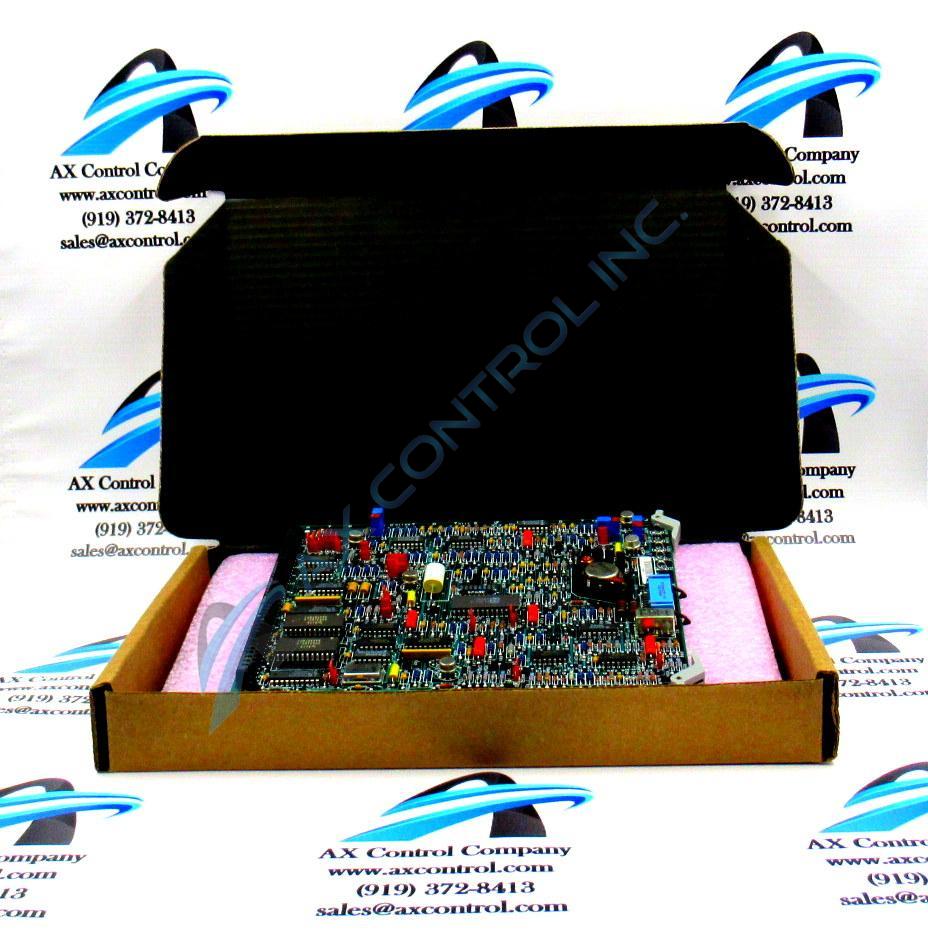

The GE Dom Plus Servo Amp Board DS3800HSAA1R1K features a modular connector on 1 end and retention levers on the other end. The board is populated with a heat sink. The analog/digital converter is a component embedded on the board. The GE Dom Plus Servo Amp Board DS3800HSAA1R1K is also populated with 1 34-pin connector and 1 socket for electrically erasable programmable read-only memory (EEPROM) modules. The board is also populated with 3 trimmer resistors.

The GE Dom Plus Servo Amp Board DS3800HSAA1R1K also is populated with 10 jumpers. The installer sets the jumpers during the installation to configure the board. Based on the requirements of the site, the installer confers with the site operators and engineers to set the requirements for the drive. The configuration options for the board are defined in the installation instructions that come with the original board from the factory. When you install a replacement board, the task is to set the jumpers on the new board to match the settings on the old board. Best practice to record the settings when the original board is first installed. Then, before you install the replacement, refer to the documentation and set the jumpers accordingly.

Another consideration before you install the replacement board is the trimmer resistors. Before the original board is installed the technician should record the trimmer resistor settings. Obtain a full function testing device and set the trimmer resistor on the replacement board to match the settings that were recorded. You might have to peel off the protective material that covers the adjustment screws.
