DS3800HSAA1T1N

About the DS3800HSAA1T1N

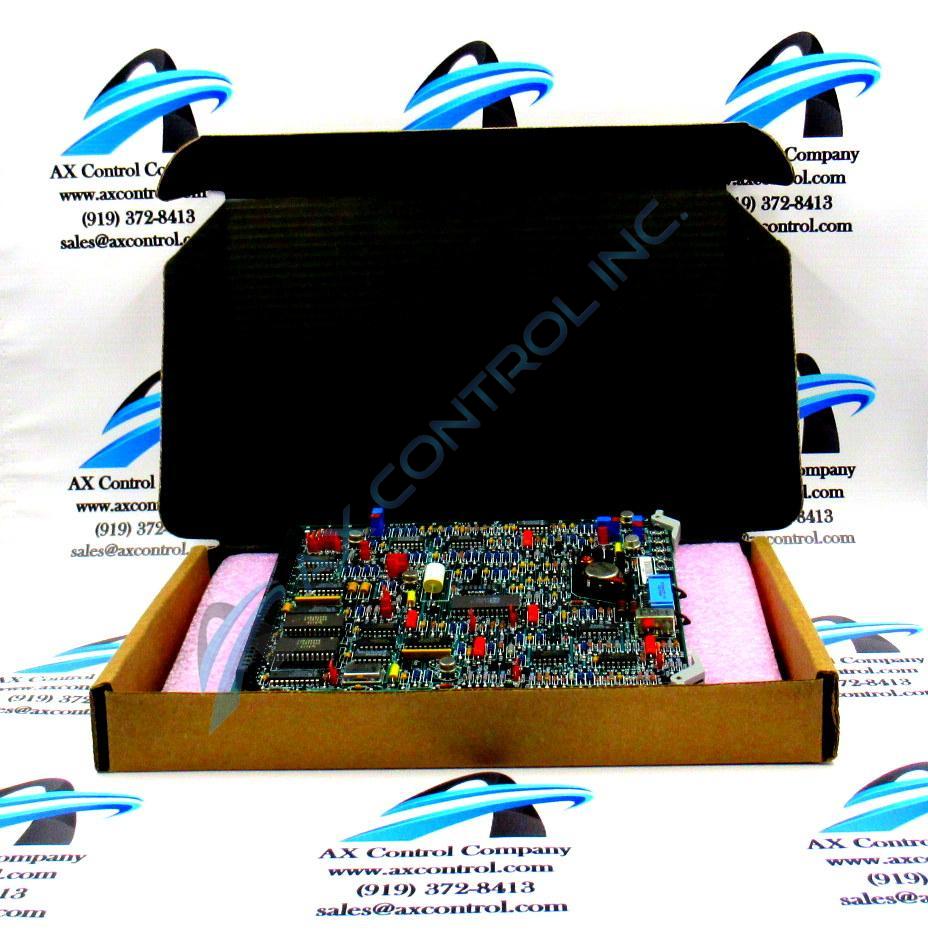

The GE Dom Plus Servo Amp Board DS3800HSAA1T1N features a modular connector on 1 end and retention levers on the other end. The board is populated with a heat sink. The analog/digital converter is a component embedded on the board. The GE Dom Plus Servo Amp Board DS3800HSAA1T1N is also populated with 1 34-pin connector and 1 socket for electrically erasable programmable read-only memory (EEPROM) modules. The board is also populated with 3 trimmer resistors.

When the GE Dom Plus Servo Amp Board DS3800HSAA1T1N is replaced, there are several preliminary steps to take before the replacement board is installed in the drive. One step is to remove the EEPROM module from the defective board and install it in the new board. The modules are installed in sockets embedded on the board. The modules are designed for easy removal. Use a screwdriver to lift the module off the socket. Move the screwdriver to the other end of the module and repeat the procedure. The module will loosen from the socket. Place it immediately in a static-proof bag. Static can damage the contents of the module and the bag keeps static off.

Wear a wrist strap and place the module over the socket on the replacement board. Use your thumb to press the module into the socket. The sockets on the replacement board are empty when you receive the board. Using the same modules ensures that the same firmware and instruction code are used in the new board. This helps ensure the same level of compatibility with the drive and the other boards.
